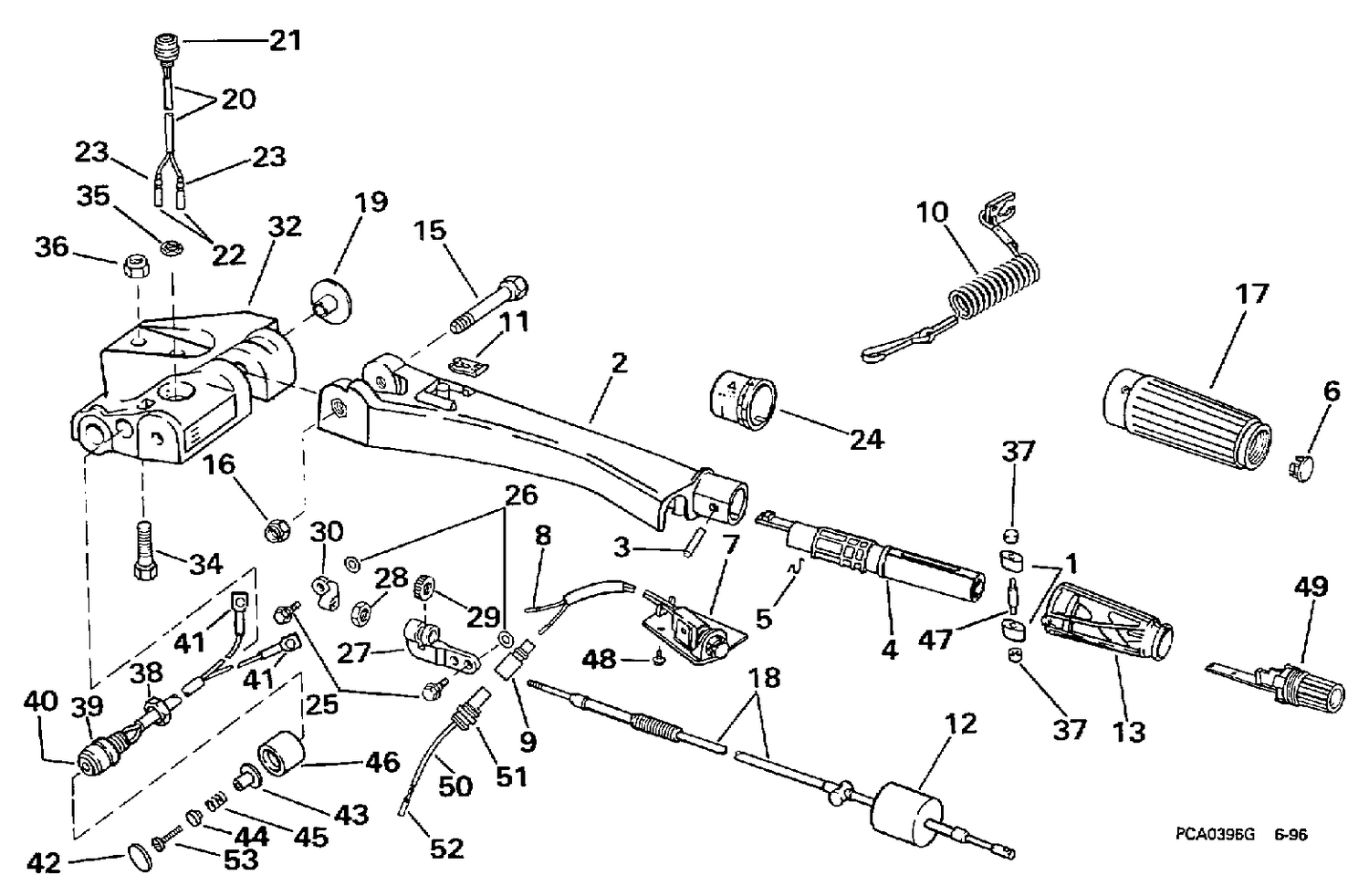

STEERING HANDLE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0437144 | HANDLE ASSEMBLY, Tiller steering |
| 7 | 0585238 | IDLE STOP SWITCH ASSY. |
| 18 | 0397002 | THROTTLE CABLE ASSY. |
| 20 | 0584400 | SWITCH & LEAD ASSY., Primer |
| 27 | 0397129 | CONNECTOR KIT |
| 30 | 0325715 | CONNECTOR, Throttle cable |
| 32 | 0355221 | STEERING ARM BRACKET, Tiller This part replaces 0340779. |
| 39 | 0585252 | SWITCH ASSY., Start |
| 42 | 0343159 | CAP, Start button |
| 43 | 0343161 | START BUTTON, Inner |
| 44 | 0343160 | START BUTTON, Body |
| 45 | 0343435 | SPRING, Start button |
| 50 | 0586096 | LEAD ASSY., Stop switch |
