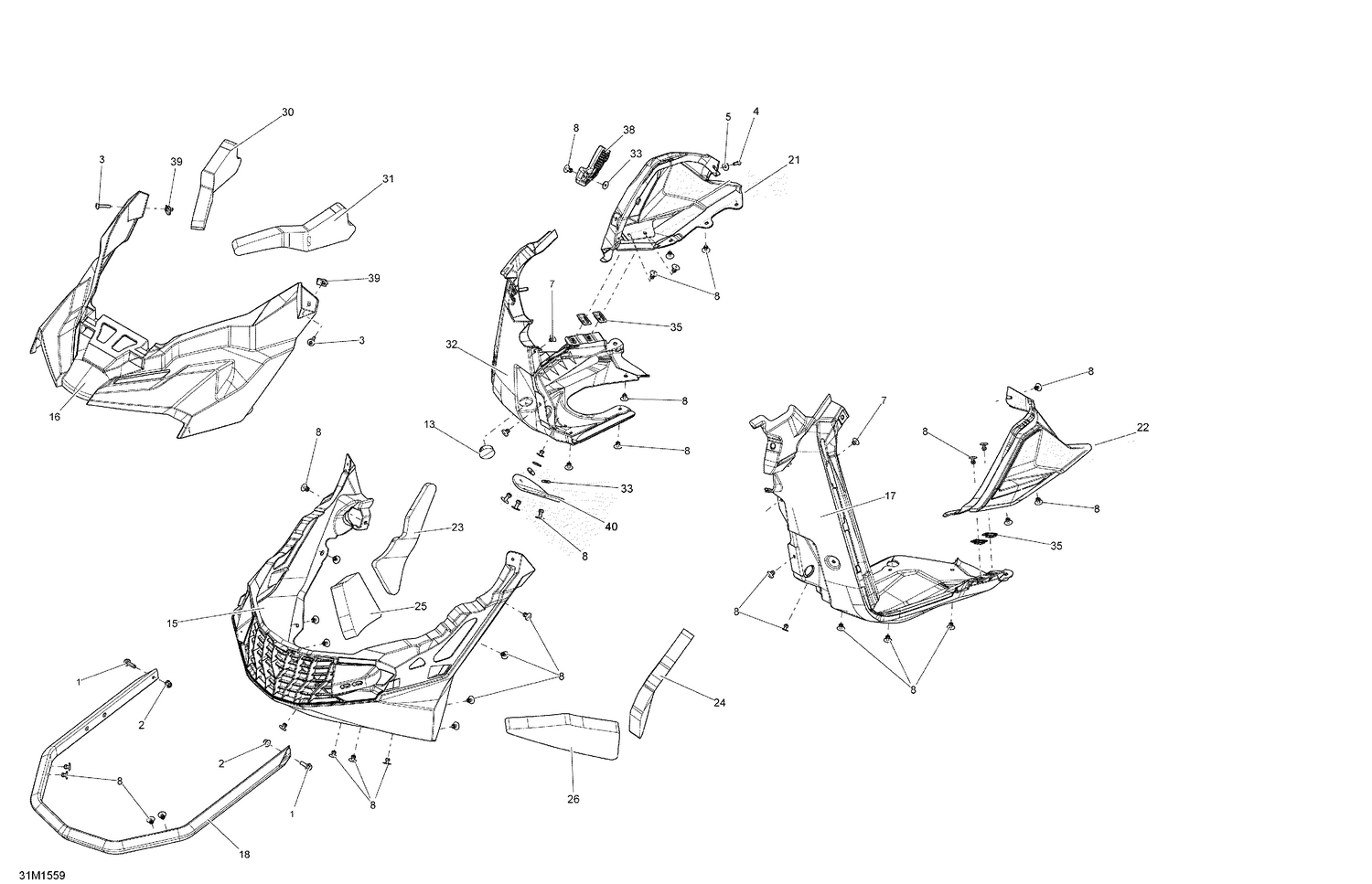

09- Bottom Pan _31M1559
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 250000587 | Torx Screw M5 X 26 |
| 4 | 250000652 | Socket Screw M5 X .80 X 16 |
| 5 | 250200025 | Washer M5 |
| 7 | 293150103 | Pop Rivet 3/16" |
| 8 | 293150104 | Pop Rivet 3/16" |
| 13 | 414916600 | Black, Nylon Cap |
| 18 | 860201167 | Black Front Bumper This part replaces 502007176. |
| 23 | 502007243 | RH Bottom Pan Upper Foam |
| 24 | 502007244 | LH Bottom Pan Upper Foam |
| 25 | 502007245 | RH Bottom Pan Lower Foam |
| 26 | 502007246 | LH Bottom Pan Lower Foam |
| 30 | 502007263 | RH Bottom Pan Cap Foam |
| 31 | 502007264 | LH Bottom Pan Cap Foam |
| 33 | 517124300 | Washer |
| 35 | 517305109 | Rivet Plate |
| 38 | 517305280 | Stopper Bumper |
| 39 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 40 | 502006935 | Snow Deflector |
