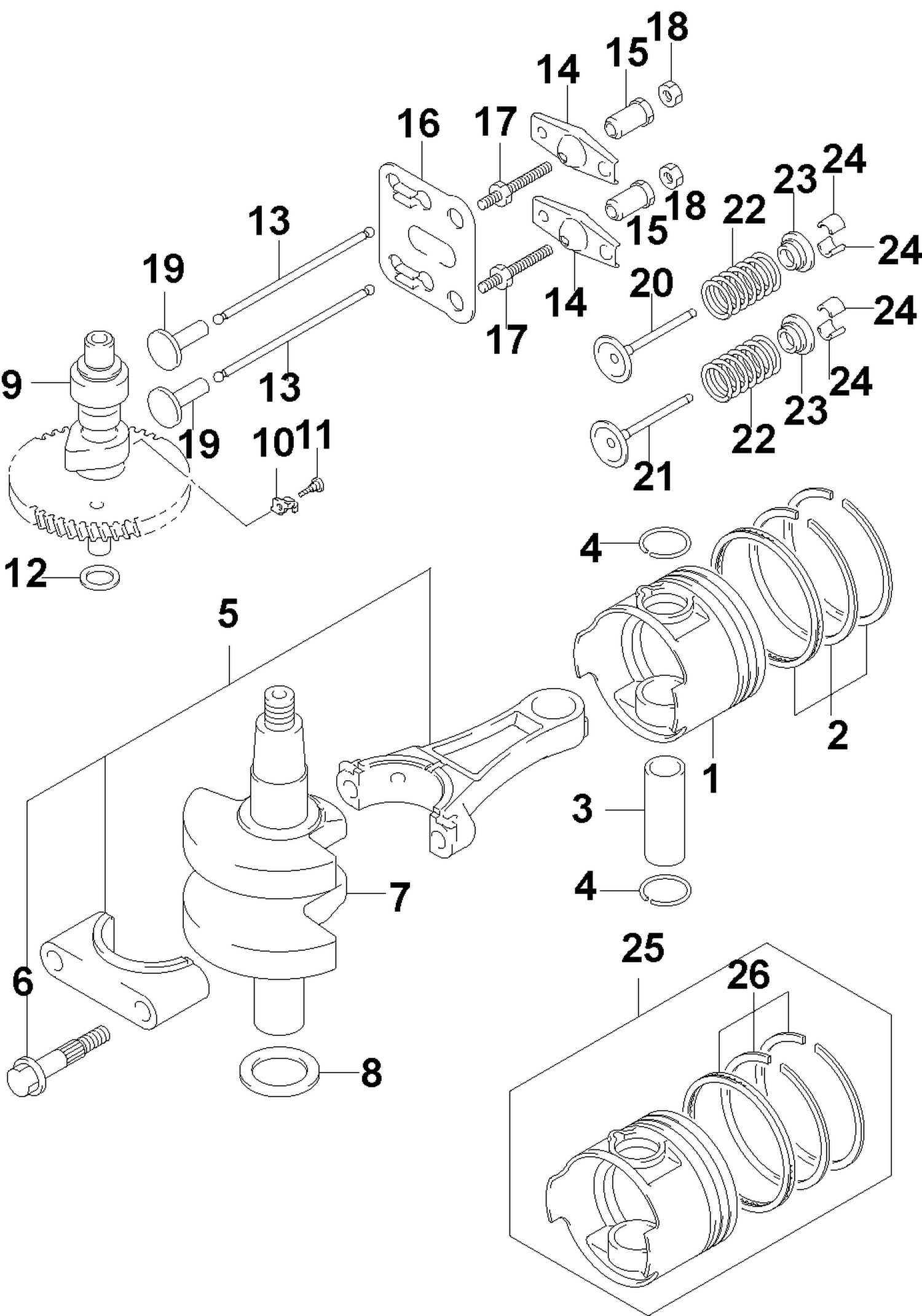

PISTONS, CRANKSHAFT, CAMSHAFT
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033351 | PISTON |
| 3 | 5033489 | PIN, PISTON |
| 4 | 5033486 | CIRCLIP |
| 5 | 5033354 | CONNROD ASSY (Red) |
| 7 | 5033355 | CRANKSHAFT ASSY |
| 8 | 5034170 | WASHER |
| 10 | 5033360 | CAM, DECOMPRESSION |
| 11 | 5032719 | BOLT, DECOMP |
| 12 | 5034171 | WASHER |
| 13 | 5033492 | ROD, PUSH |
| 14 | 5033493 | ARM, ROCKER |
| 15 | 5033494 | PIVOT |
| 16 | 5033361 | GUIDE, ROD |
| 17 | 5033473 | BOLT, STUD |
| 18 | 5033476 | NUT |
| 19 | 5033491 | TAPPET |
| 20 | 5033357 | VALVE, INTAKE |
| 21 | 5033358 | VALVE, EXHAUST |
| 22 | 5033359 | SPRING,VALVE |
| 23 | 5031384 | DISPOSITIF DE RETENUE, RESSORT DE SOUPAPE |
| 24 | 5031385 | CLAVETTE, SOUPAPE |
