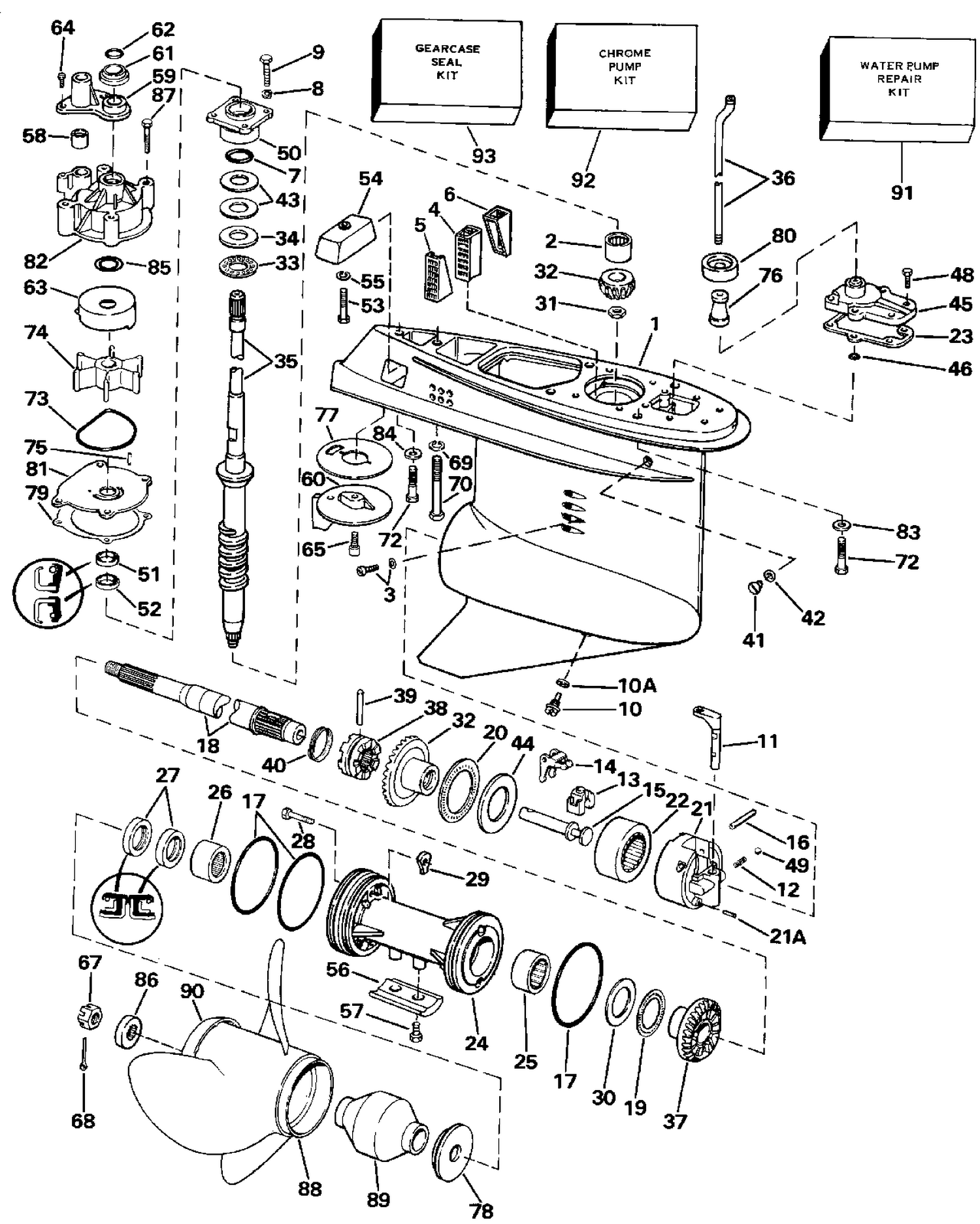

GEARCASE

GEARCASE

Parts (50)

RefPart NumberDescription
1 0435822 GEARCASE & BEARING ASSY. This part replaces 0398201.
2 0391471 BEARING, Pinion
5 0333233 SCREEN, Water intake, stbd
6 0333234 SCREEN, Water intake, port
11 0326807 DETENT, Shift
15 0326823 SHAFT
18 0395209 PROP SHAFT ASSY
21 0431735 HOUSING & BEARING ASSY This part replaces 0391497.
22 0391505 BEARING
24 0397110 BEARING HSG. SEAL ASSY
28 0309244 SCREW
29 0332091 RETAINER, Bearing housing
32 0395482 GEAR & PINION ASSY This part replaces 0394835.
35 5000630 Driveshaft Ay This part replaces 0391494.
35 5000634 Driveshaft Ay This part replaces 0396958.
36 0330028 SHIFT ROD
36 0330029 SHIFT ROD
37 0330853 GEAR, Reverse
44 0326733 THRUST WASHER
53 0330989 SCREW, Anode
54 0395634 ANODE
60 0338943 TRIM TAB, Gearcase This part replaces 0331410.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
69 0326784 WASHER, Screw
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
78 0333592 THRUST BUSHING This part replaces 0321173.
81 0435027 CUP & PLATE This part replaces 0330380.
81 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
82 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
84 0326785 WASHER
85 0332000 SEAL RING
87 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
88 0389923 PROP, 14-1/2 x 21 SST
88 0389924 PROP, 14-1/2 x 19 SST
88 0389925 PROP, 15 x 16 SST
88 0390831 PROP, 14-1/2 x 14 SST
88 0391201 PROP, 14-1/2 x 19
88 0391202 PROP, 14-1/2 x 21
88 0391290 PROP, 15 x 17 SST
88 0391535 PROP, 15-1/2 x 15
88 0765187 PROPELLER, WDEX Models This part replaces 0391200.
91 5001594 WATER PUMP REPAIR KIT This part replaces 0395062.
92 0435526 CHROME CUP & PLATE KIT This part replaces 0395059.
0307853 0307853 O RING
0397106 0434405 GEARCASE ASSY., Complete This part replaces 0397106.
0397484 0434406 GEARCASE ASSY., Complete This part replaces 0397484.
