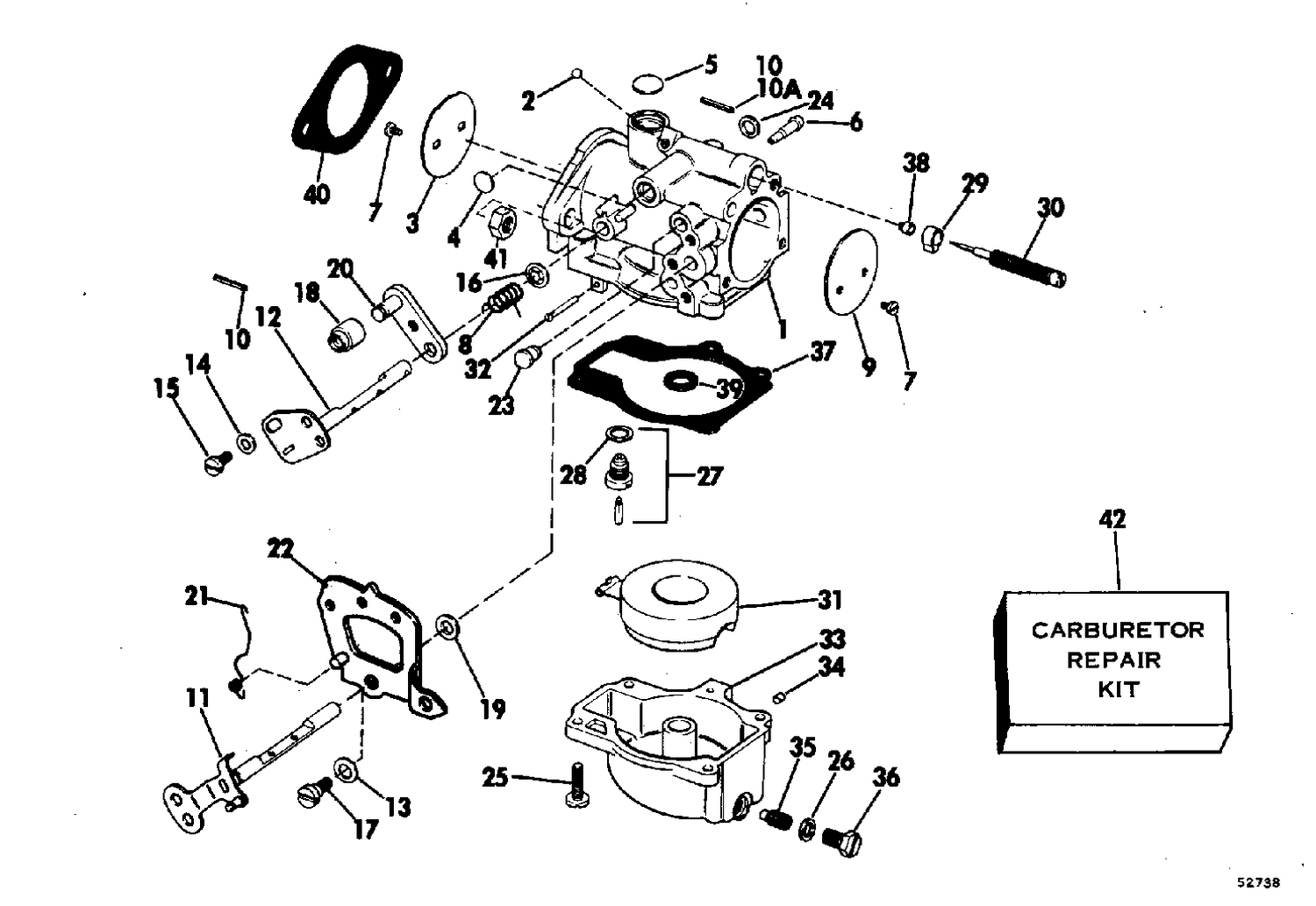

CARBURETOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387105 | BODY ASSY., Lower |
| 1 | 0387106 | BODY ASSY., Upper |
| 9 | 0322182 | CHOKE VALVE This part replaces 0313359. |
| 11 | 0387811 | CHOKE SHAFT ASSY This part replaces 0384237. |
| 29 | 0315232 | RETAINER , Needle valve stbd |
| 33 | 0383318 | FLOAT CHAMBER ASSEMBLY |
| 33 | 0387077 | FLOAT CHAMBER ASSY |
| 36 | 0307832 | PLUG, Screw |
| 38 | 0314166 | BEARING, Needle valve |
| 40 | 0325092 | GASKET This part replaces 0314477. |
| 41 | 0316355 | BUT, Carburetor mounting |
| 0386904 | 0386904 | CARB ASSY., Lower |
| 0386905 | 0386905 | CARB ASSY., Upper |
