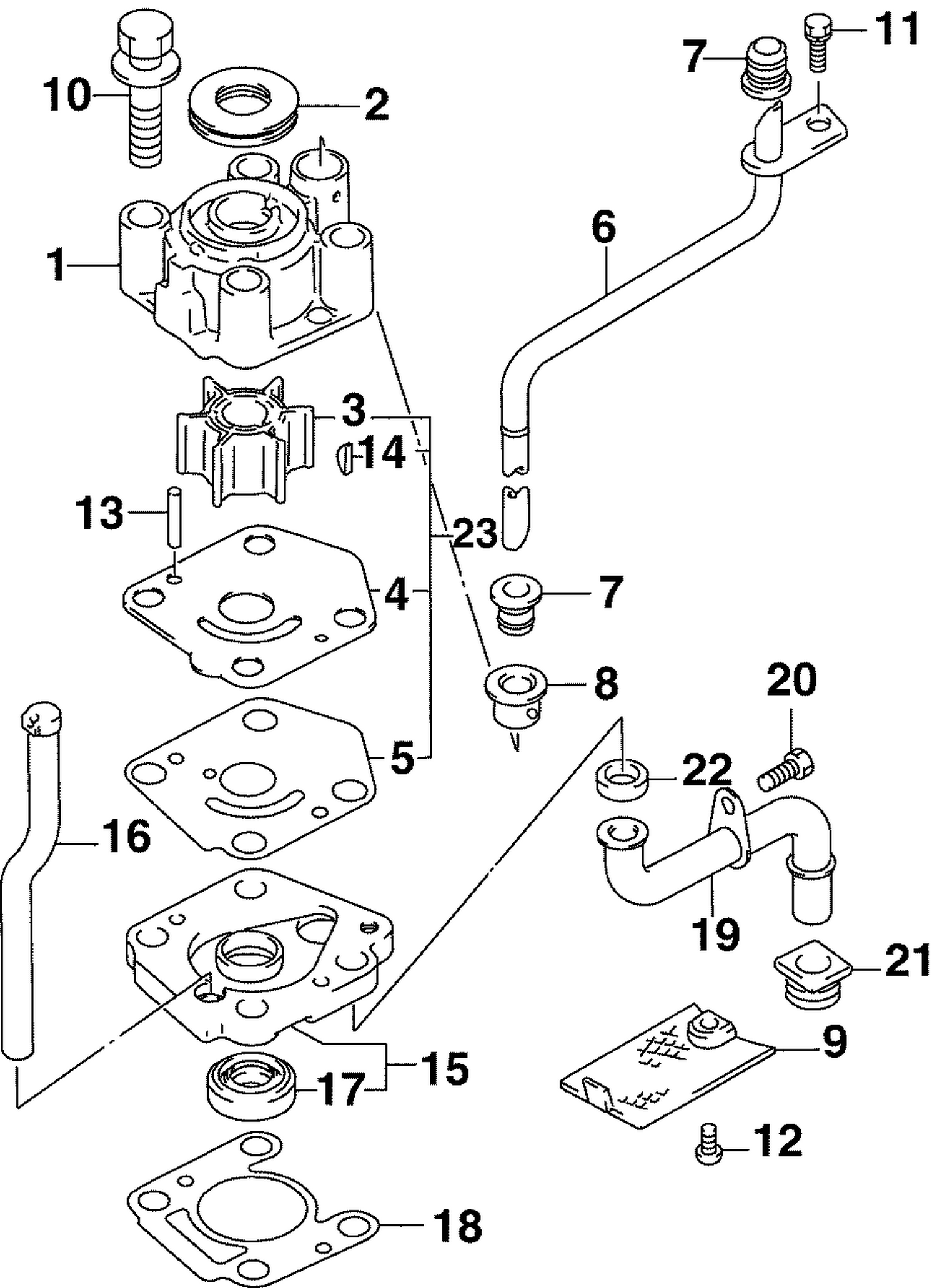

WATER PUMP
Parts (19)
| Ref | Part Number | Description |
|---|
| 1 |
5033107 |
CASE, WATER PUMP |
| 2 |
5033108 |
BAGUE, CARTER DE POMPE |
| 3 |
5033112 |
IMPELLER, WATER PUMP |
| 4 |
5033114 |
PANEL, PUMP CASE UNDER |
| 5 |
5035603 |
GASKET, PUMP CASE PANEL |
| 6 |
5033117 |
TUBE À EAU, 20" |
| 6 |
5033118 |
TUBE À EAU, 15" |
| 7 |
5035606 |
BAGUE, TUBE À EAU |
| 8 |
5033120 |
BUSHING, WATER PUMP CASE |
| 9 |
5033121 |
FILTER, WATER |
| 10 |
5032766 |
BOLT (8X55mm) |
| 12 |
5030409 |
SCREW |
| 13 |
5032994 |
PIN |
| 14 |
5033113 |
CLÉ |
| 15 |
5035608 |
HOUSING, WATER INLET |
| 19 |
5033116 |
TUBE, WATER INLET |
| 20 |
5032758 |
BOLT (6X9mm) |
| 21 |
5035610 |
GROMMET |
| 22 |
5035611 |
GROMMET |
