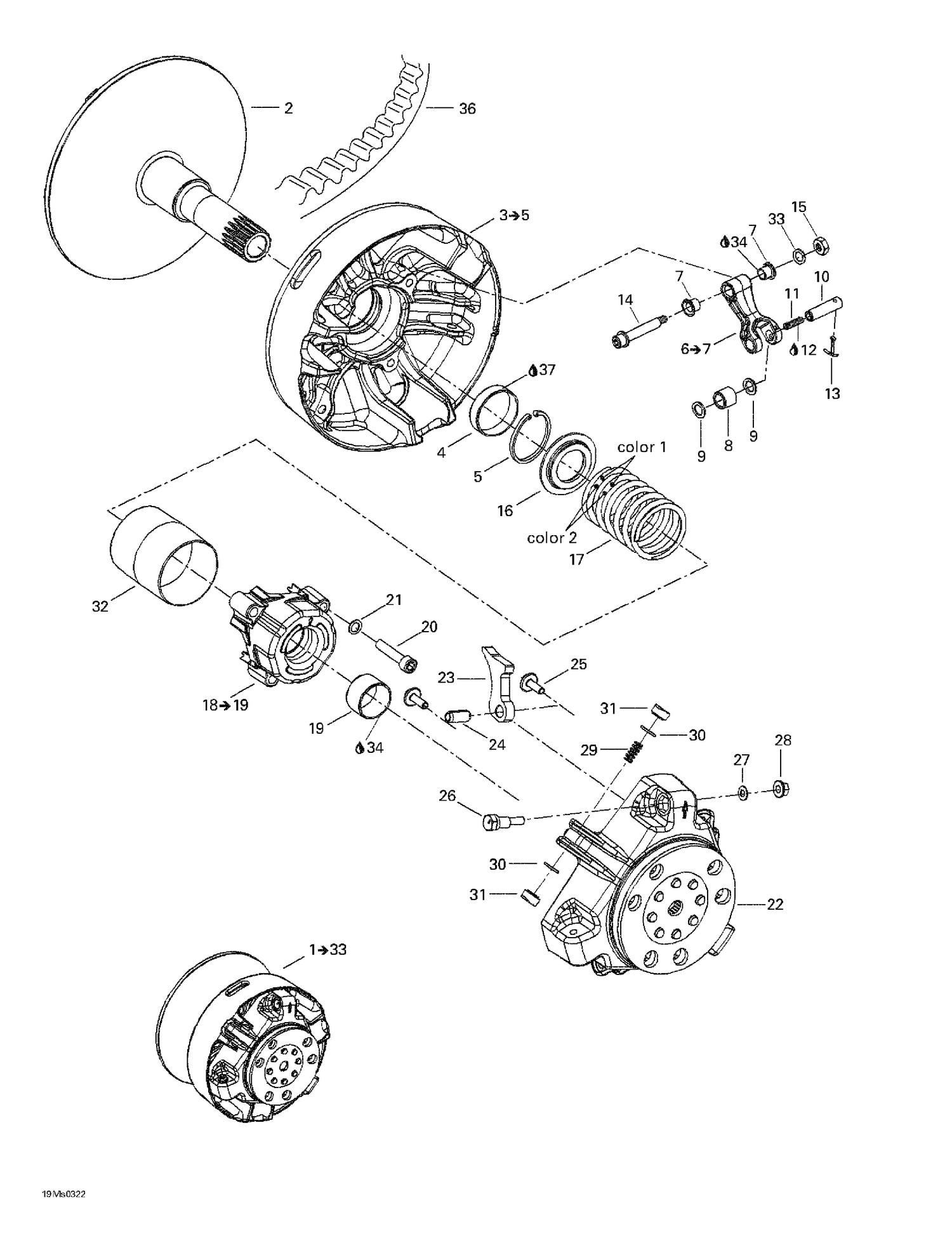

05- Drive Pulley
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222970 | Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222167. |
| 4 | 417222758 | Bushing This part replaces 417006900. |
| 5 | 293370037 | Circlip |
| 7 | 417004305 | Bushing |
| 8 | 417222947 | Roller This part replaces 417003900. |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222477 | Threaded Pin |
| 11 | 206262099 | Socket Set Screw M6 X 20 |
| 12 | 293800060 | Loctite 243, 10 ml |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417222028 | SCREW ASS'Y - Call your local BRP dealership |
| 15 | 232561414 | Elastic Stop Nut M6 |
| 16 | 417222312 | Spring Seat |
| 17 | 415015300 | Spring, Violet/yellow |
| 19 | 417009204 | Bushing |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417222213 | Governor Cup |
| 23 | 417222548 | RAMP 415 - Call your local BRP dealership |
| 24 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 26 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 27 | 417005600 | Washer |
| 28 | 233061414 | Hex. Flange Nut M6 |
| 29 | 417005700 | Spring |
| 30 | 732401030 | O-Ring |
| 31 | 417223021 | Slider Shoe This part replaces 417222362. |
| 32 | 417009205 | Guard |
| 33 | 234061410 | Flat Washer 6 mm |
