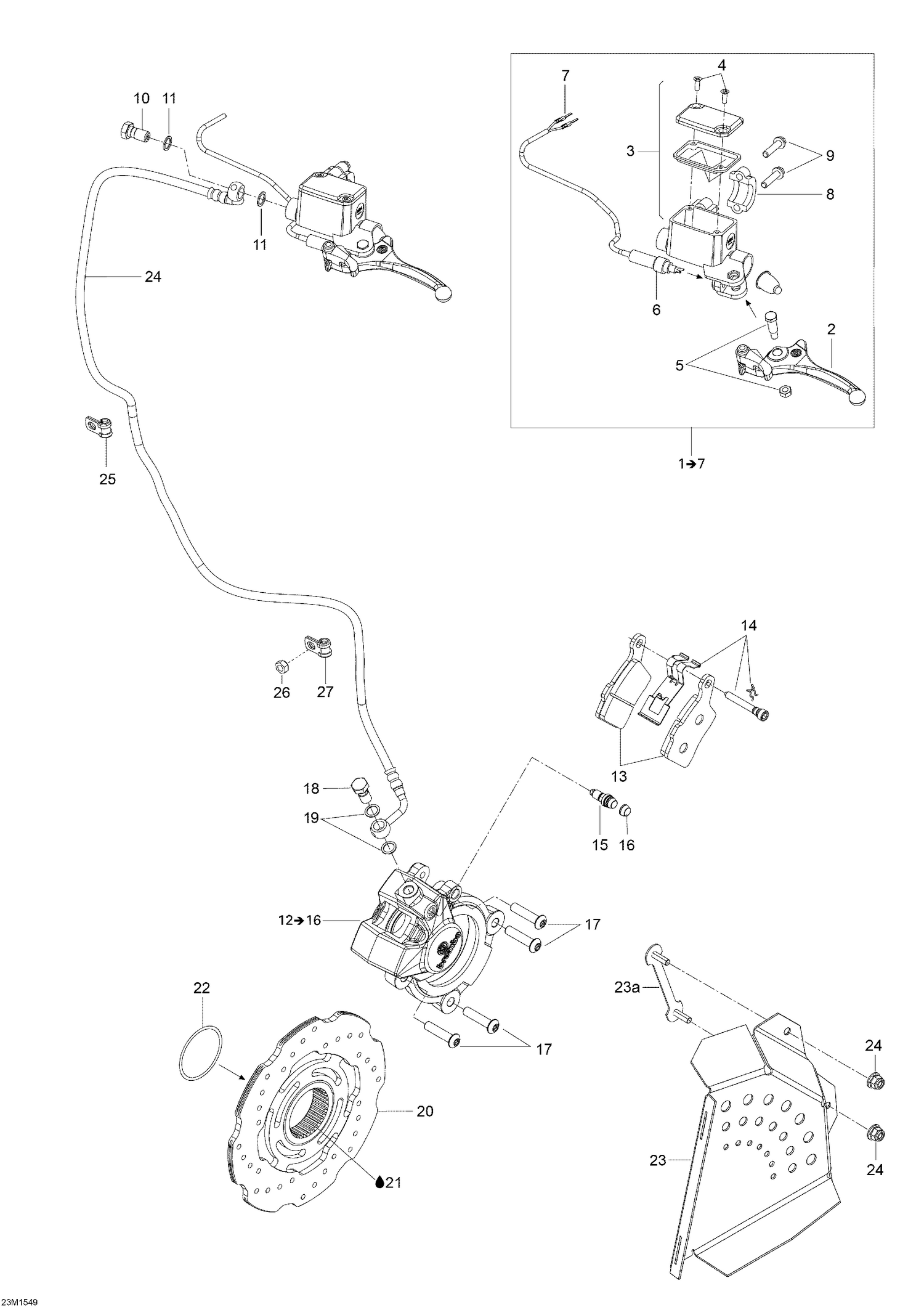

06- Hydraulic Brake _23M1549
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032476 | Lever With Parking Lock |
| 3 | 507032478 | Master Cylinder Reservoir Ass'y |
| 4 | 415129356 | Screw M4 X 20 |
| 5 | 415030000 | Pin Ass'y |
| 6 | 507032479 | Microswitch |
| 7 | 515175232 | Male Terminal |
| 8 | 719000049 | Clamps |
| 9 | 250000447 | Hex. Flange Screw M6 X 25 |
| 10 | 507032551 | Banjo Bolt |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 13 | 507032489 | Brake Pads Kit |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | 507032475 | Bleeder |
| 16 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 17 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 18 | 507032551 | Banjo Bolt |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 20 | 507032513 | Disk |
| 21 | Not | Available As Spare Part - Loctite 8151 (Antiseize), 400ml Spray |
| 22 | 293300134 | O-Ring |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23a | 518328661 | Counter Plate |
| 24 | 507032547 | Hose, Steel Braided |
| 25 | 293650256 | Clamp This part replaces 715900250. |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 414176000 | Open Clamp |
