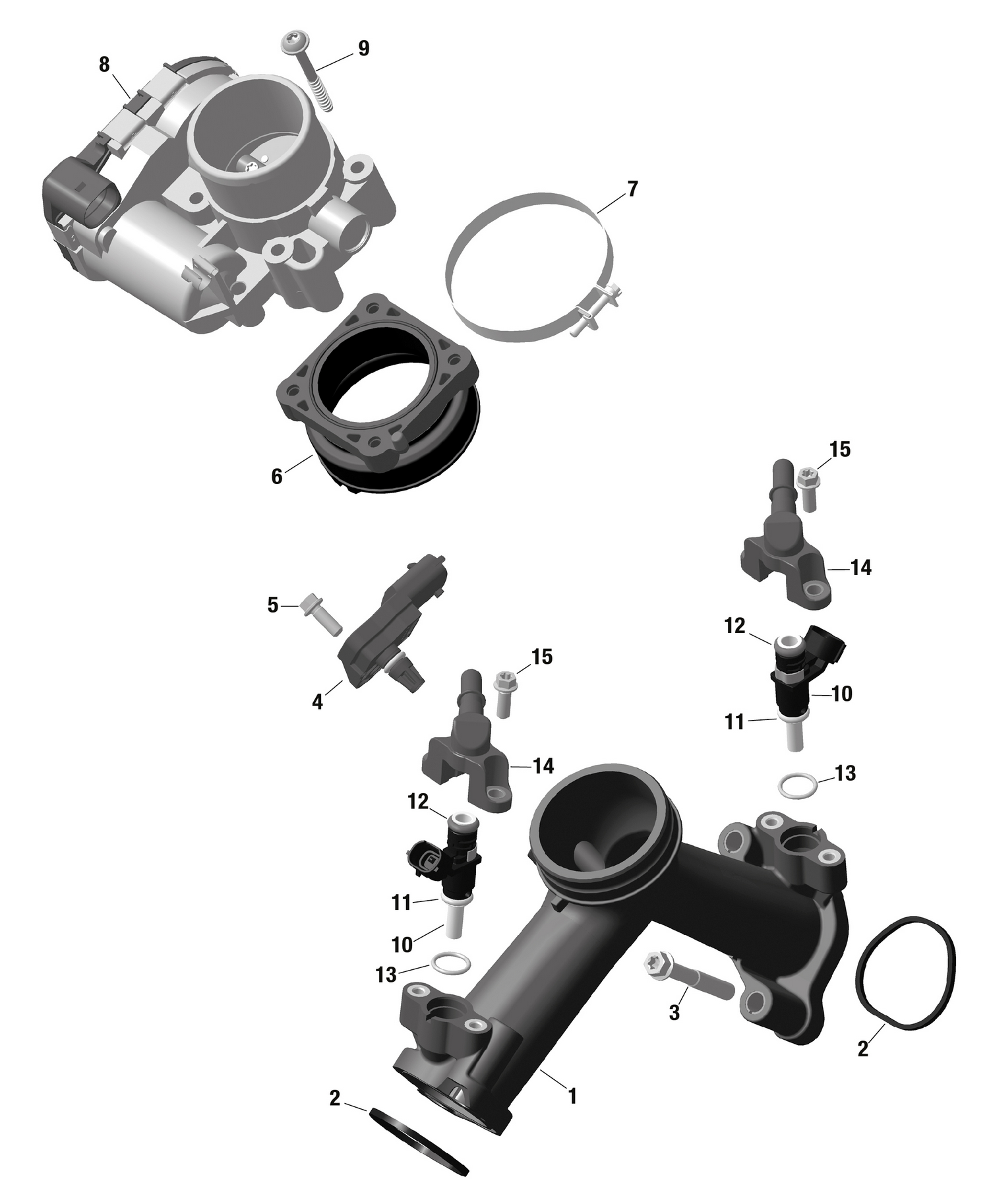

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 5 | 420440149 | Hex. Flange Screw M6 X 12 |
| 6 | 420267618 | Flange This part replaces 420267625. |
| 7 | 420251209 | Clamp |
| 8 | 420893149 | Throttle Body |
| 9 | 420441588 | Torx Flange Screw M6 X 50 |
| 11 | 420431890 | O-Ring |
| 12 | 420631220 | O-Ring |
| 14 | 420874901 | Fuel Rail |
