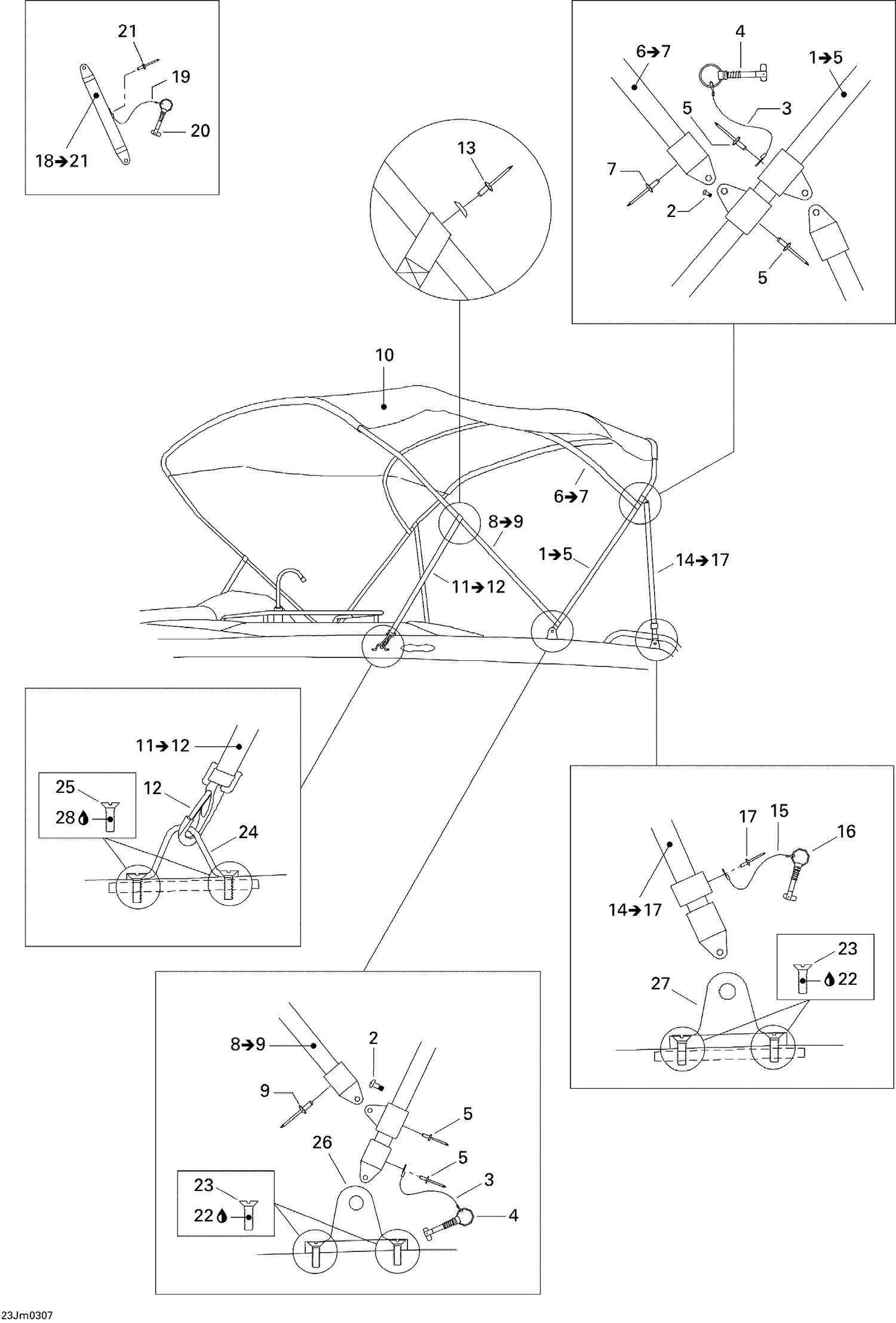

09- Bimini Top
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204100066 | SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership |
| 3 | 204071012 | Retaining Cable |
| 4 | 204070960 | Retaining Pin |
| 5 | 293150039 | Pop Rivet 3/16" |
| 7 | 293150039 | Pop Rivet 3/16" |
| 9 | 293150039 | Pop Rivet 3/16" |
| 10 | 204071715 | Bimini Canvas |
| 12 | 204071007 | Hook Snap |
| 13 | 293150039 | Pop Rivet 3/16" |
| 15 | 204071012 | Retaining Cable |
| 16 | 204070960 | Retaining Pin |
| 17 | 293150039 | Pop Rivet 3/16" |
| 19 | 204071012 | Retaining Cable |
| 20 | 204070960 | Retaining Pin |
| 21 | 293150039 | Pop Rivet 3/16" |
| 22 | 293800060 | Loctite 243, 10 ml |
| 23 | 208453060 | PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 24 | 204070234 | Strap Tie |
| 25 | 208443060 | Phillips Screw M4 X 30 |
| 26 | 204070910 | BIMINI BRACKET - Call your local BRP dealership |
| 27 | 204071011 | BIMINI BRACKET - Call your local BRP dealership |
| 28 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 204071112 | Brace | Ass’y, Starbord 204071112 |
