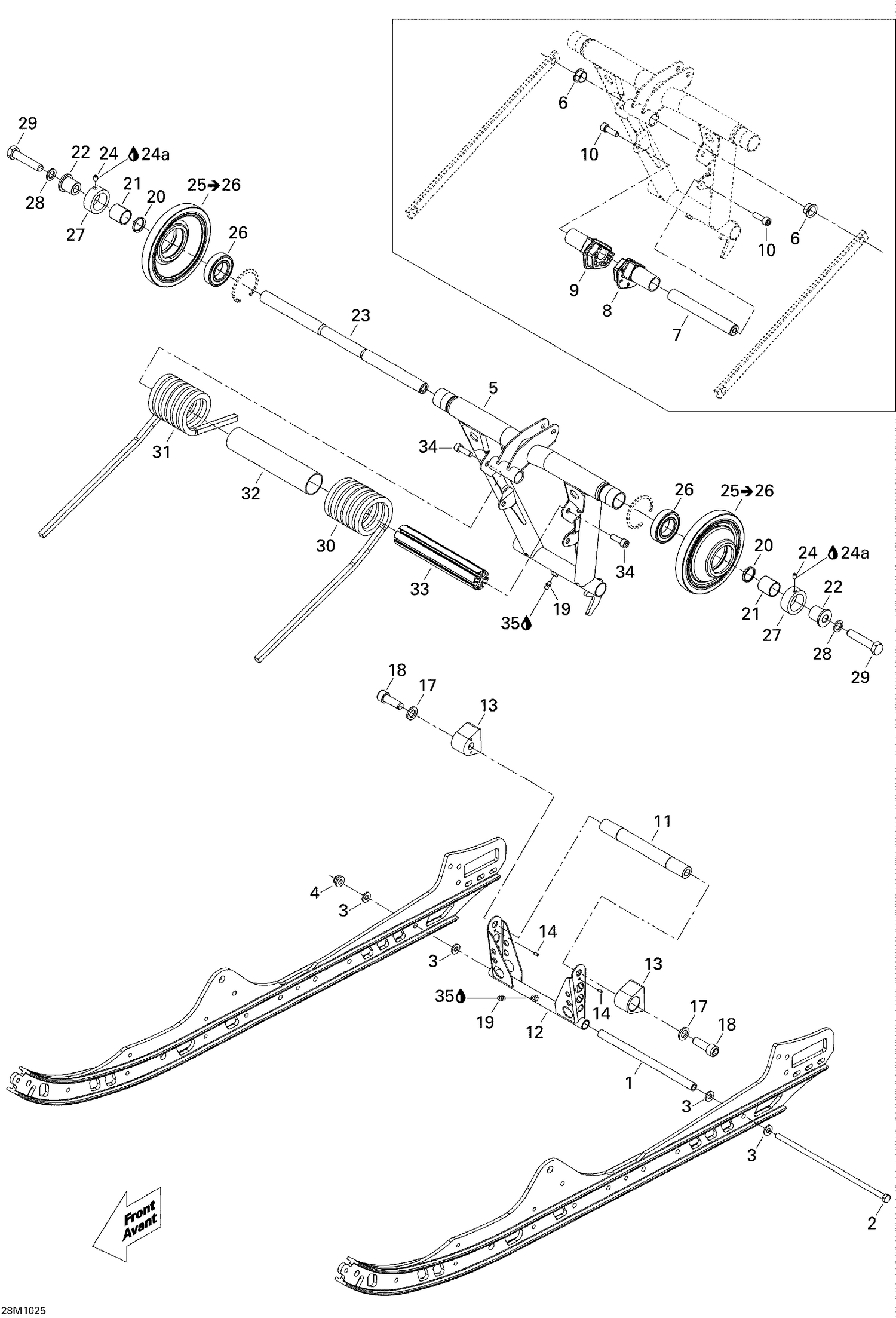

08- Rear Arm
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503189156 | Pivot Arm Axle |
| 2 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 3 | 503189157 | Washer |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503192087 | REAR ARM - Call your local BRP dealership |
| 6 | 503191555 | Swivel Bushing |
| 7 | 503191178 | Spring Cam Axe |
| 8 | 503191191 | LH Spring Cam |
| 9 | 503191190 | RH Spring Cam |
| 10 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 11 | 503192095 | Lower Shaft |
| 12 | 503191302 | Pivot Arm |
| 13 | 503192320 | BLOCK - Call your local BRP dealership |
| 14 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 17 | 503189148 | Washer |
| 18 | 205523587 | Socket Head Screw Scotch Grip Din.912 |
| 19 | 408200700 | Grease Fitting |
| 20 | 503191774 | Washer |
| 21 | 503191773 | Bushing |
| 22 | 503191775 | Bushing |
| 23 | 503191776 | Upper Shaft |
| 24 | 206260844 | Socket Set Screw M6 X 8 |
| 24a | 293800060 | Loctite 243, 10 ml |
| 26 | 503191778 | Ball Bearing |
| 27 | 503191782 | Retaining Ring |
| 28 | 503189276 | Washer |
| 29 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 30 | 503191615 | LH Spring, Square |
| 31 | 503191614 | RH Spring, Square |
| 32 | 503191345 | Plastic Bushing |
| 33 | 503191344 | Spring Axle |
