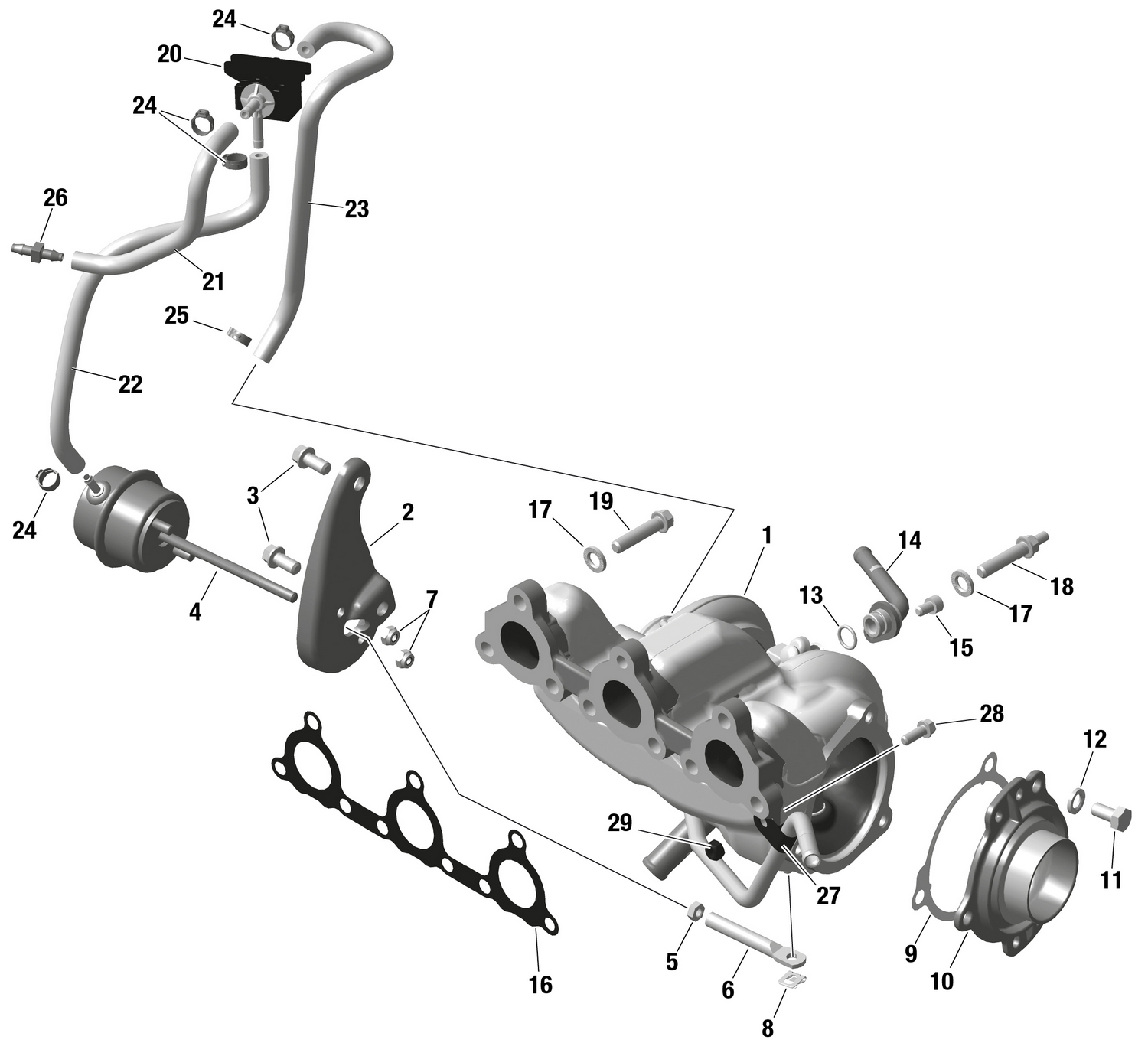

01- ROTAX - Turbocharger
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | XXX | Not Available As Spare Parts |
| 3 | XXX | Not Available As Spare Parts |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 420845000 | Circlip |
| 9 | 420431941 | Exhaust Gasket |
| 10 | 420873511 | Exhaust Flange |
| 11 | 420940586 | Hex Screw M8 X 16 |
| 12 | 420827521 | Washer |
| 13 | 420650928 | O-Ring |
| 14 | 420622063 | Cooling Water Pipe |
| 15 | 420241081 | Allen Screw M6 X 10 |
| 17 | 420827521 | Washer |
| 18 | 420440693 | Collar Screw M8 X 35 |
| 19 | 420641188 | Torx Flange Screw M8 X 35 This part replaces 420440867. |
| 20 | 420664636 | Solenoid Valve |
| 21 | 420201233 | Hose 390MM This part replaces 420201231. |
| 22 | 420201233 | Hose 390MM This part replaces 420201232. |
| 23 | 420201233 | Hose 390MM |
| 24 | 420853133 | Clamp 9.2-10.9 mm |
| 25 | 420851468 | Gear Clamp |
| 26 | 420922161 | Connector Tube |
| 27 | 420851101 | Cable Clamp |
| 28 | 420440162 | Torx Flange Screw M6 X 16 |
