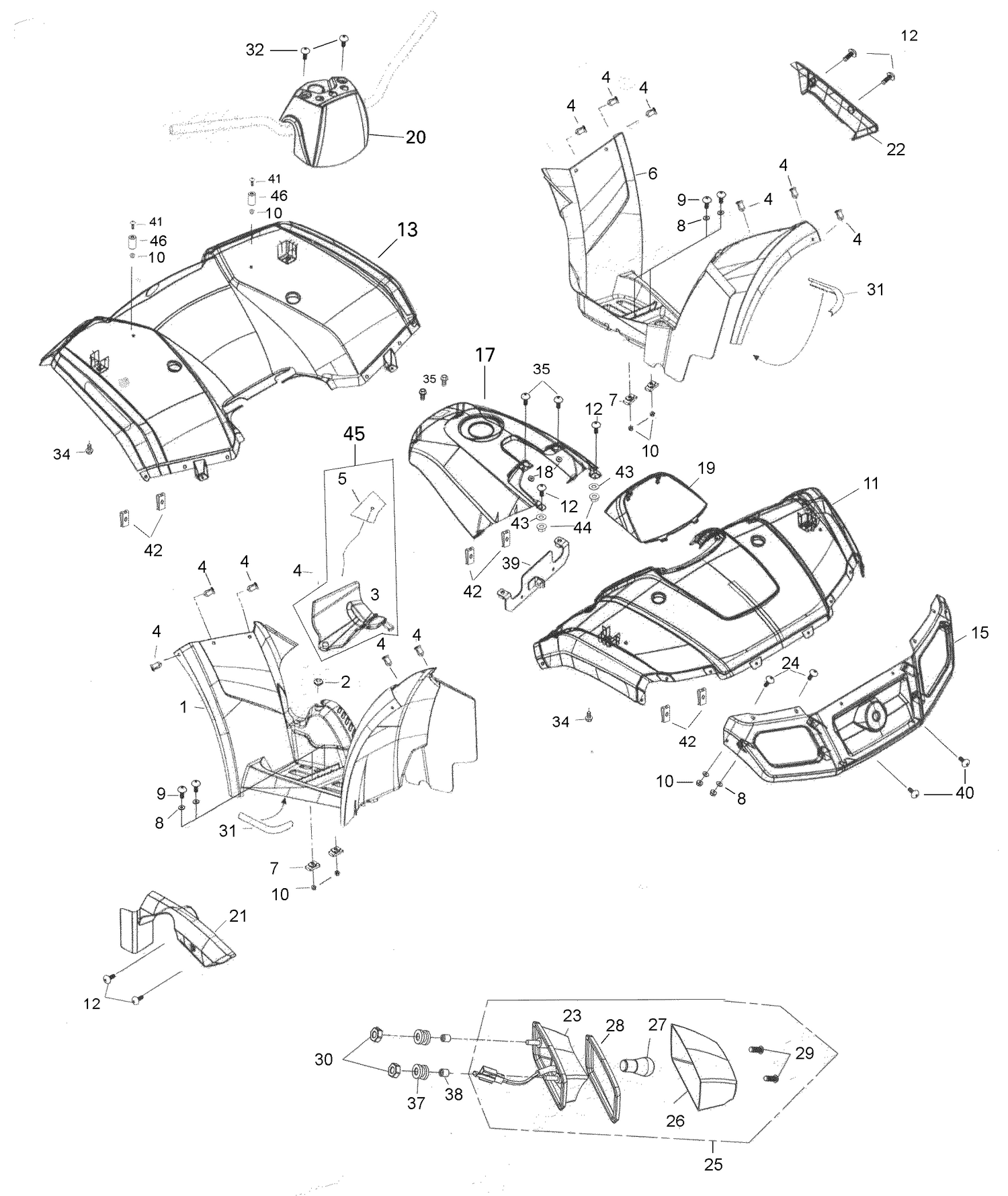

| Ref | Part Number | Description |
|---|
| 1 |
A64312179000 |
RH Footboard, Black |
| 2 |
705005156 |
Oval Washer |
| 3 |
705000870 |
CHAIN COVER - Call your local BRP dealership |
| 4 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 5 |
705000563 |
Reflective Sheet |
| 6 |
A64313179000 |
LH Footboard, Black |
| 7 |
705000407 |
Rubber Stopper |
| 8 |
250200029 |
Washer M6 |
| 9 |
A9380006032K |
PAN HEAD SCREW PHILLIPS M6 X 32 - Call your local BRP dealership |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
A64301179000RD |
Front Fender, Red |
| 11 |
A64301179000YL |
Front Fender, Yellow |
| 12 |
A9370106025K |
PAN HEAD SCREW PHILLIPS M6 X 25 - Call your local BRP dealership |
| 13 |
A83400179000RD |
REAR FENDER, RED - Call your local BRP dealership |
| 13 |
A83400179000YL |
Rear Fender, Yellow |
| 15 |
A64321179000RD |
Front Fascia, Red |
| 15 |
A64321179000YL |
Front Fascia, Yellow |
| 17 |
A64501179001RD |
Dash Board, Red |
| 17 |
A64501179001YL |
DASH BOARD, YELLOW - Call your local BRP dealership |
| 18 |
705005156 |
Oval Washer |
| 19 |
A64502179000RD |
CONSOLE COVER, RED - Call your local BRP dealership |
| 19 |
A64502179000YL |
CONSOLE COVER, YELLOW - Call your local BRP dealership |
| 20 |
A64211179000 |
Steering Cover |
| 21 |
A83505179000 |
RH PANEL - Call your local BRP dealership |
| 22 |
A83506179000 |
LH PANEL - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Rear Light Socket |
| 24 |
A9370106018KL |
PHILLIPS SCREW M6 X 18 - Call your local BRP dealership |
| 25 |
A33700179000 |
Tail Light Housing |
| 26 |
A33702179000 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 27 |
520000758 |
Bulb This part replaces 410504100. |
| 28 |
A33717179000 |
Gasket |
| 29 |
A9390304035 |
Screw M4 X 35 |
| 30 |
A9035006000 |
NYLON NUT M6 - Call your local BRP dealership |
| 31 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 32 |
A9370106015K13 |
PAN HEAD SCREW PHILLIPS M6 X 15 - Call your local BRP dealership |
| 34 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 35 |
A9600006010 |
Hex. Flange Screw M6 X 10 |
| 37 |
A33713179000 |
Tail Light Rubber Ring |
| 38 |
A33718179000 |
Tail Light Rubber Ring Spacer |
| 39 |
A64504179000 |
Dash Board Bracket |
| 40 |
A9370106018k |
Phillips Screw M6 X 18 |
| 41 |
A9370106060 |
PHILLIPS SCREW M6 X 60 - Call your local BRP dealership |
| 42 |
A903440600B |
U Plate Nut |
| 43 |
250200029 |
Washer M6 |
| 44 |
A9035006000 |
NYLON NUT M6 - Call your local BRP dealership |
| 45 |
Not |
Available As Spare Part - Chain Cover Ass'y |
