Home / BRP / STERN DRIVE / 1991 / 5.70 / 574APERGD 1991 / INTAKE MANIFOLD & FUEL PUMP

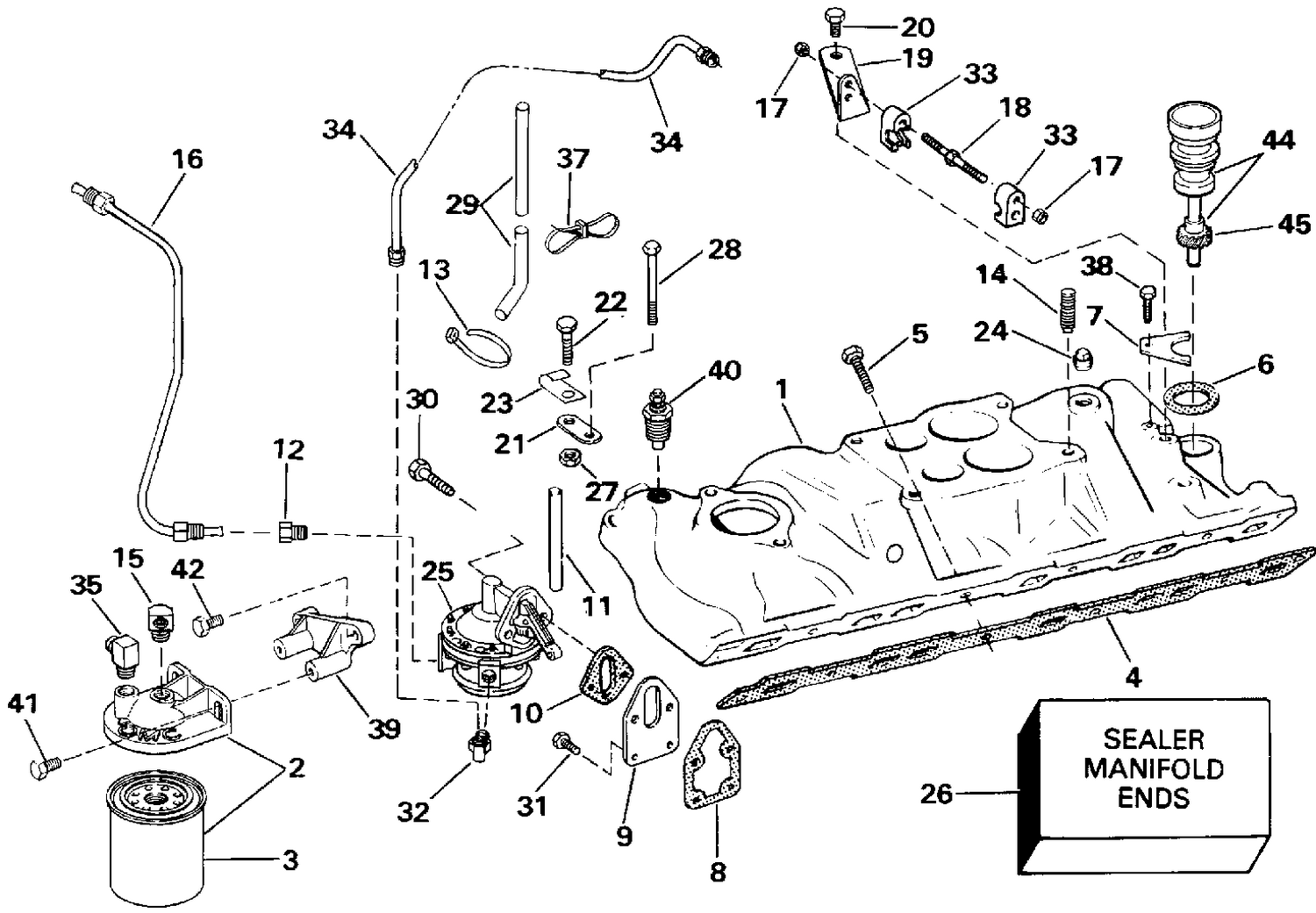

INTAKE MANIFOLD & FUEL PUMP

INTAKE MANIFOLD & FUEL PUMP

Parts (40)

RefPart NumberDescription
1 0986068 MANIFOLD, Intake
1 3854532 INTAKE MANIFOLD This part replaces 0986069.
2 0174176 FUEL FILTER & BRACKET ASSY
4 0985630 GASKET SET, Manifold
5 3855983 BOLT, Intake manifold, long This part replaces 0911972.
5 3856129 BOLT, Intake manifold, short This part replaces 0914407.
6 0312780 GASKET, Dist. to manifold
7 3852108 CLAMP, Distributor This part replaces 0312778.
8 3852113 GASKET, Plate to engine This part replaces 0312800.
9 0312801 PLATE, Fuel pump mounting
10 0311064 GASKET, Fuel pump
11 3852112 PUSH ROD, Fuel pump This part replaces 0312799.
12 3852017 ADAPTER, Fuel line This part replaces 0124816.
13 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
14 3853333 STUD, Carburetor mounting This part replaces 0914801.
15 3852702 FITTING, Filter outlet This part replaces 0913446.
16 3853997 FUEL LINE, Filter to pump This part replaces 0986613.
18 3850682 STUD, Anchor block This part replaces 0914682.
19 0914577 ANCHOR BRACKET
20 3853428 SCREW, Anchor bracket This part replaces 0915068.
21 3852621 BRACKET, Fuel line clamp This part replaces 0912885.
23 0511514 CLAMP, Cable
24 3852075 PLUG, Intake manifold This part replaces 0307948.
25 3855276 FUEL PUMP ASSY. This part replaces 0981650.
26 0914372 SEALER, Manifold ends
27 0311375 NUT
29 0909938 HOSE, Fuel overflow
30 3853393 SCREW, Bracket to manifold This part replaces 0915001.
31 0306487 SCREW
32 3852453 FITTING, Cover, return line This part replaces 0908644.
33 3852836 ANCHOR BLOCK This part replaces 0913795.
34 0986715 FUEL LINE, Pump to carburetor
34 3855280 Line Ay This part replaces 0986470.
35 0174179 ELBOW, Filter inlet
38 3853325 SCREW, Clamp to engine This part replaces 0914761.
39 3853310 BRACKET, Fuel filter This part replaces 0914677.
40 0171960 SENDER, Water temperature
41 3853326 SCREW, Bracket to engine This part replaces 0914764.
42 3853326 SCREW, Bracket to engine This part replaces 0914764.
44 0986130 SHAFT & GEAR
