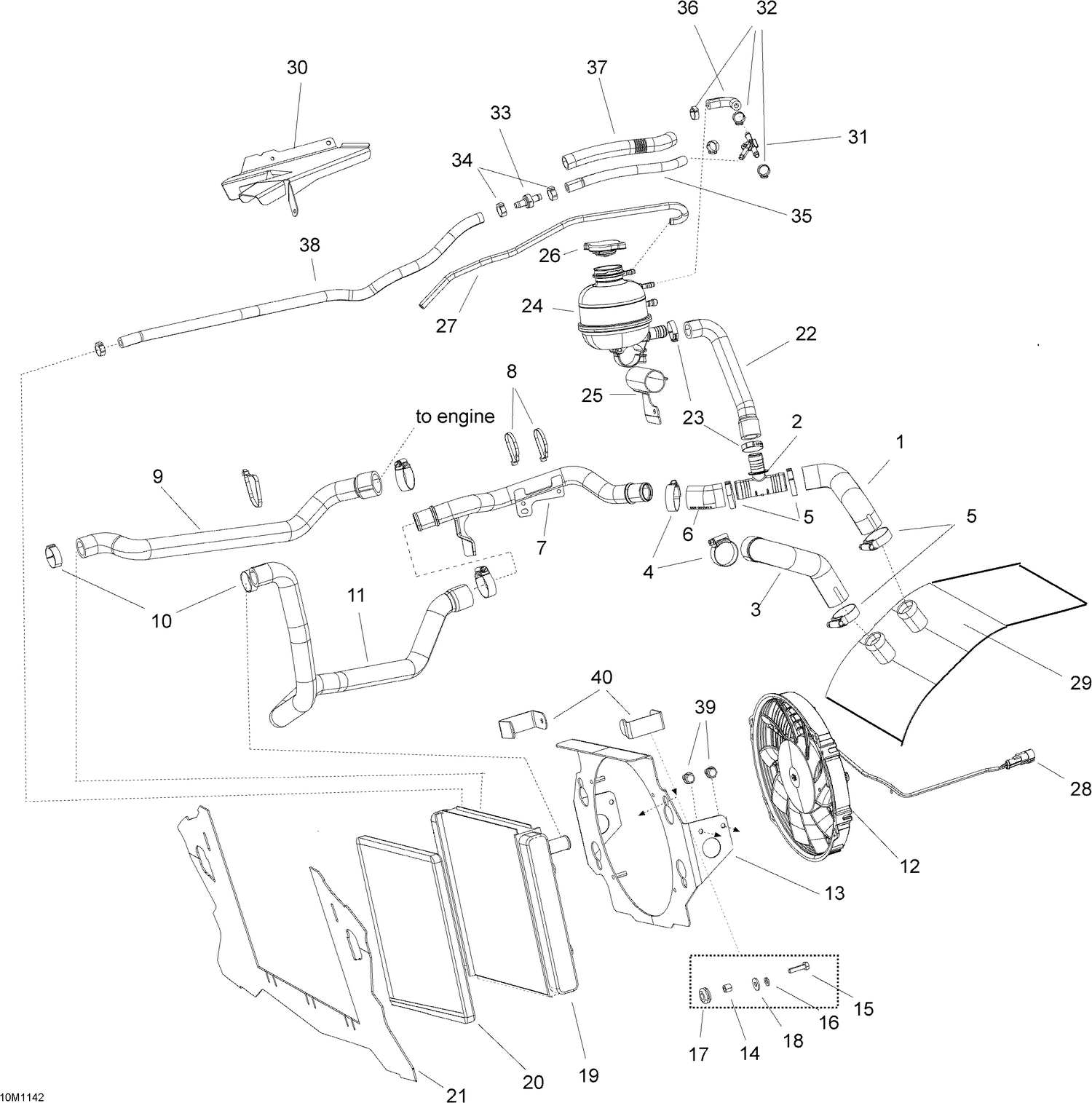

01- Cooling System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000779 | HOSE, T-FITTING->FRONT RADIATOR - Call your local BRP dealership |
| 2 | 509000372 | T-Fitting |
| 3 | 509000592 | HOSE, THERMOSTAT (RADIATOR) - Call your local BRP dealership |
| 4 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 5 | 509000181 | Oetiker Gear Clamp |
| 6 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 7 | 509000724 | Water Pipe Aluminum |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 509000780 | Hose, Front Radiator ( Air Engine) |
| 10 | 293650016 | Tridon Clamp |
| 11 | 509000781 | Hose, Front Radiator (Engine) |
| 12 | 509000838 | Cooling Fan This part replaces 509000547. |
| 13 | 509000791 | Radiator support |
| 14 | 605453745 | Bushing |
| 15 | 207162544 | Hex. Screw M6 X 25 |
| 16 | 234161471 | Lock Washer M6, Black This part replaces M20052. |
| 17 | 709000582 | Grommet This part replaces 293720053. |
| 18 | 234062410 | Flat Washer 6 mm |
| 19 | 509000787 | Radiator |
| 20 | 509000718 | Insulation |
| 21 | 509000700 | Air Deflector |
| 22 | 509000663 | Filling Hose |
| 23 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 24 | 509000421 | Coolant Tank |
| 25 | 509000782 | Tank Support |
| 26 | 509000180 | Radiator Pressure Cap |
| 27 | 219704360 | Hose 6 Mm 15000Mm Long |
| 28 | 278000220 | Male Connector, 2 Circuits |
| 29 | 509000645 | Radiator Tunnel |
| 30 | 509000700 | Air Deflector |
| 31 | 293710140 | Y-Fitting |
| 32 | 293650047 | Crimp Clamp, 15.3-706R |
| 33 | 509000153 | Check Valve |
| 34 | 293650140 | Oetiker Clamp |
| 35 | 509001069 | Hose-formed This part replaces 509000765. |
| 36 | 509001070 | Hose This part replaces 509000776. |
| 37 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 38 | 219704420 | Was 509000407 Hose 8 mm |
| 39 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870. |
