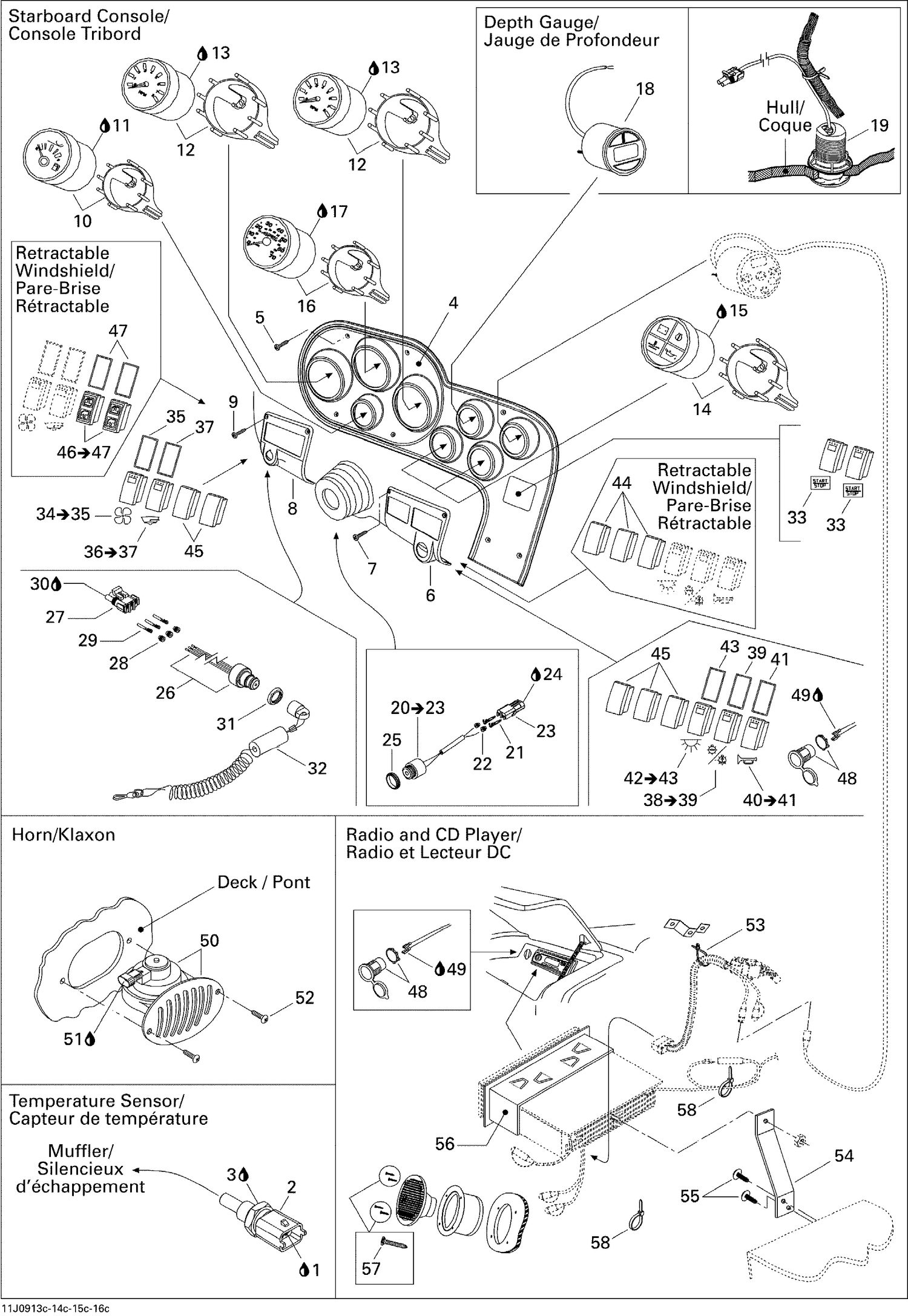

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 4 |
204471334 |
Fascia |
| 5 |
205342560 |
Socket Head Screw M4 X 25 |
| 6 |
204471173 |
RH Panel Switch |
| 7 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 8 |
204471174 |
LH PANEL SWITCH - Call your local BRP dealership |
| 9 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 10 |
204471163 |
FUEL GAUGE - Call your local BRP dealership |
| 11 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 12 |
204471162 |
Tachometer Gauge |
| 13 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
204471201 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
204471161 |
SPEEDO GAUGE - Call your local BRP dealership |
| 17 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 18 |
204471157 |
Depth Gauge |
| 19 |
204471292 |
Depth Sensor |
| 21 |
278000222 |
Male Terminal |
| 22 |
278000218 |
Wire Seal |
| 23 |
278000217 |
Female Housing, 2 Circuits |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
278000707 |
Buzzer Nut |
| 26 |
278002773 |
Safety Switch This part replaces 278001734. |
| 27 |
278000273 |
Male Housing, 3 Circuits |
| 28 |
278000218 |
Wire Seal |
| 29 |
278000223 |
Female Terminal |
| 30 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 31 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 32 |
204471206 |
Safety Lanyard |
| 33 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 35 |
204470132 |
Gasket |
| 37 |
204470132 |
Gasket |
| 39 |
204470132 |
Gasket |
| 41 |
204470132 |
Gasket |
| 43 |
204470132 |
Gasket |
| 48 |
710001248 |
DC Outlet |
| 49 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 50 |
204470801 |
HORN - Call your local BRP dealership |
| 51 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 52 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 53 |
293750002 |
Tie Wrap 142 mm |
| 54 |
204471284 |
RADIO SUPPORT - Call your local BRP dealership |
| 55 |
204100203 |
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership |
| 56 |
204471010 |
STEREO TRIM RING - Call your local BRP dealership |
| 57 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
