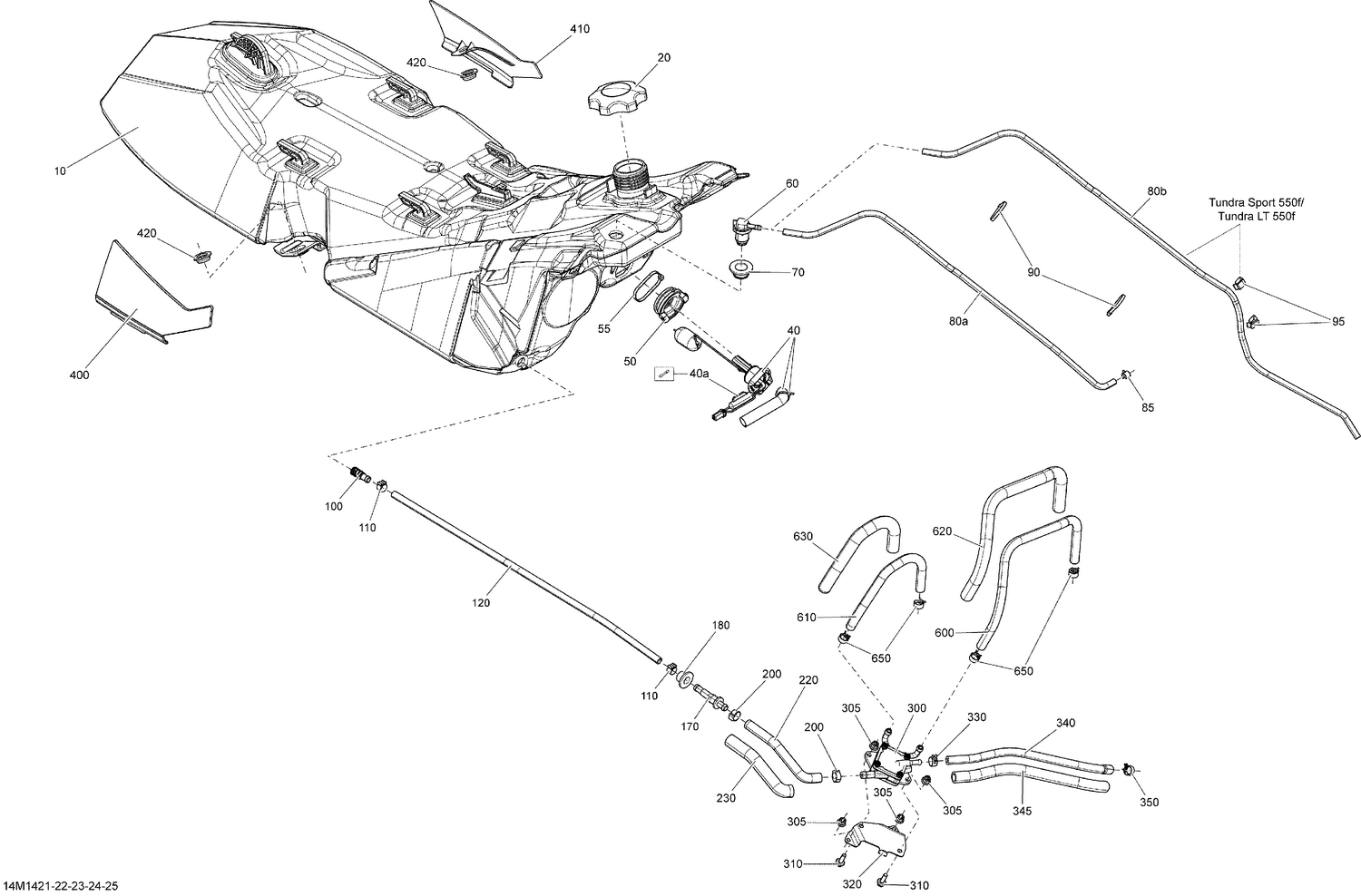

02- Fuel System _14M1421
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033695 | Fuel Tank |
| 40a | 710001995 | Fuse, 0.5 Ampère |
| 50 | 513033606 | Grommet |
| 55 | 293750008 | Tie Wrap 368 mm |
| 60 | 513033842 | Check Valve This part replaces 513033188. |
| 70 | 513033596 | Grommet |
| 80a | 219704410 | Polyurethane Hose 10000Mm Long |
| 80b | XXX | Not Available As Spare Parts |
| 85 | 414554800 | Spring Clamp |
| 90 | 414115200 | Tie-Rap 180 mm |
| 95 | XXX | Not Available As Spare Parts |
| 100 | 414872100 | Fuel Filter Strainer |
| 110 | 513033010 | Norma Spring Clamp |
| 120 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 170 | 414872700 | Male Connector |
| 180 | 513033435 | Grommet |
| 200 | 293650053 | Crimp Clamp |
| 220 | 513033499 | Formed Hose |
| 230 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 403901813 | Fuel Pump |
| 305 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 310 | 207662044 | Hex. Flange Screw M6 X 20 |
| 320 | 513033543 | Pump Bracket |
| 330 | 414415200 | Spring Clamp |
| 340 | 513033553 | Formed Hose |
| 345 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350 | 513033029 | Universal Spring Clamp |
| 400 | 513033418 | RH Cap |
| 410 | 513033419 | LH Cap |
| 420 | 513033326 | Shoulder Bushing |
| 600 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 610 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 620 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 630 | 219704408 | Tubing 16 Mm 1000Mm Long |
