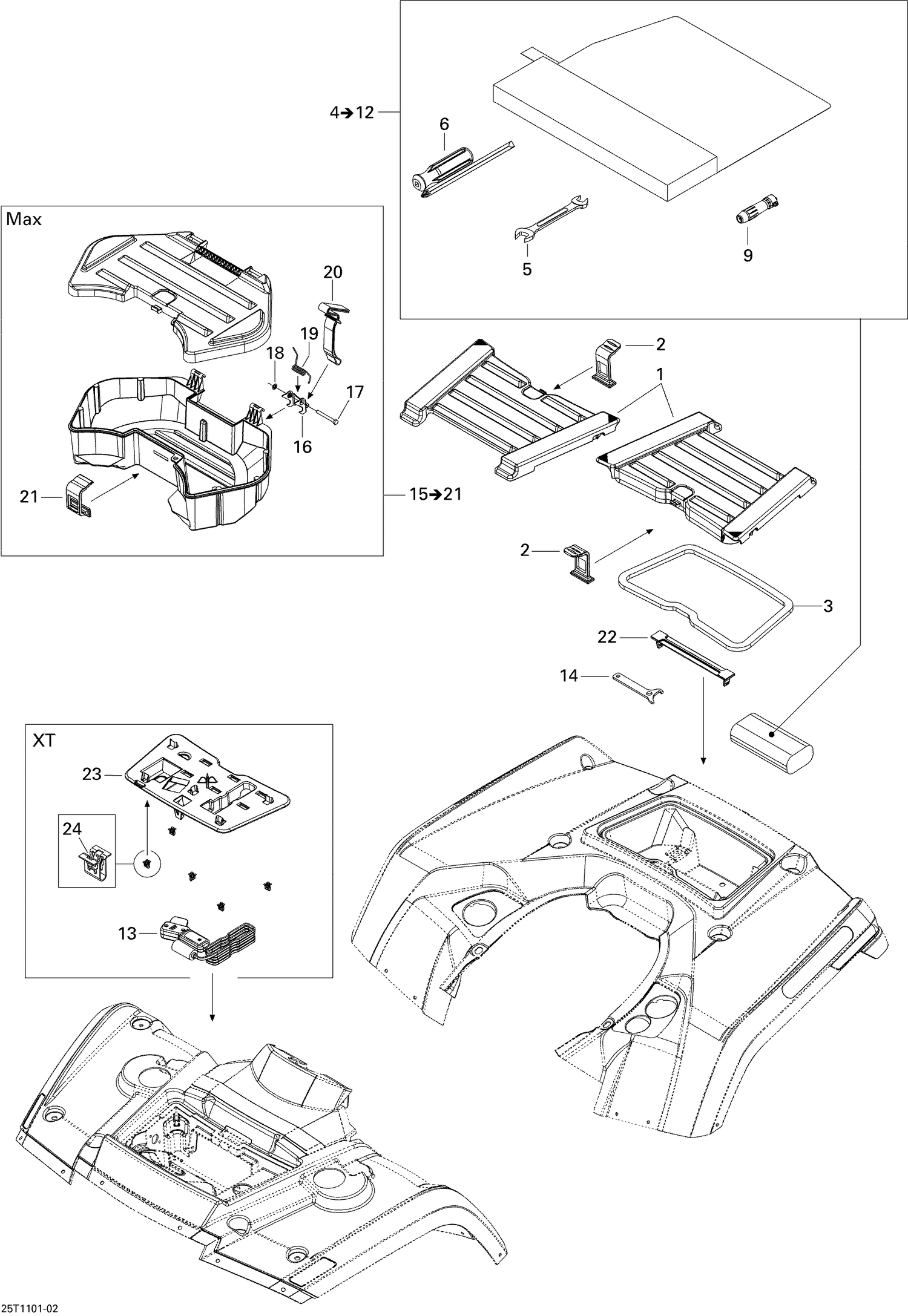

09- Front and Rear Trays
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705003492 | Storage Cover |
| 2 | 708200120 | Cover Latch |
| 3 | 293250192 | Neoprene Seal |
| 5 | 529014900 | Socket Wrench 10/13 mm |
| 6 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 9 | 529000052 | PRESSURE GAUGE - Call your local BRP dealership |
| 14 | 529000035 | Adjustment Wrench |
| 16 | 708200066 | LATCH - Call your local BRP dealership |
| 17 | 207065544 | Hex. Screw M6 X 55 |
| 18 | 732610072 | Push Nut |
| 19 | 708000369 | Spring |
| 20 | 510004495 | BELT - Call your local BRP dealership |
| 21 | 708200120 | Cover Latch |
| 22 | 708200121 | COVER LATCH KIT - Call your local BRP dealership |
