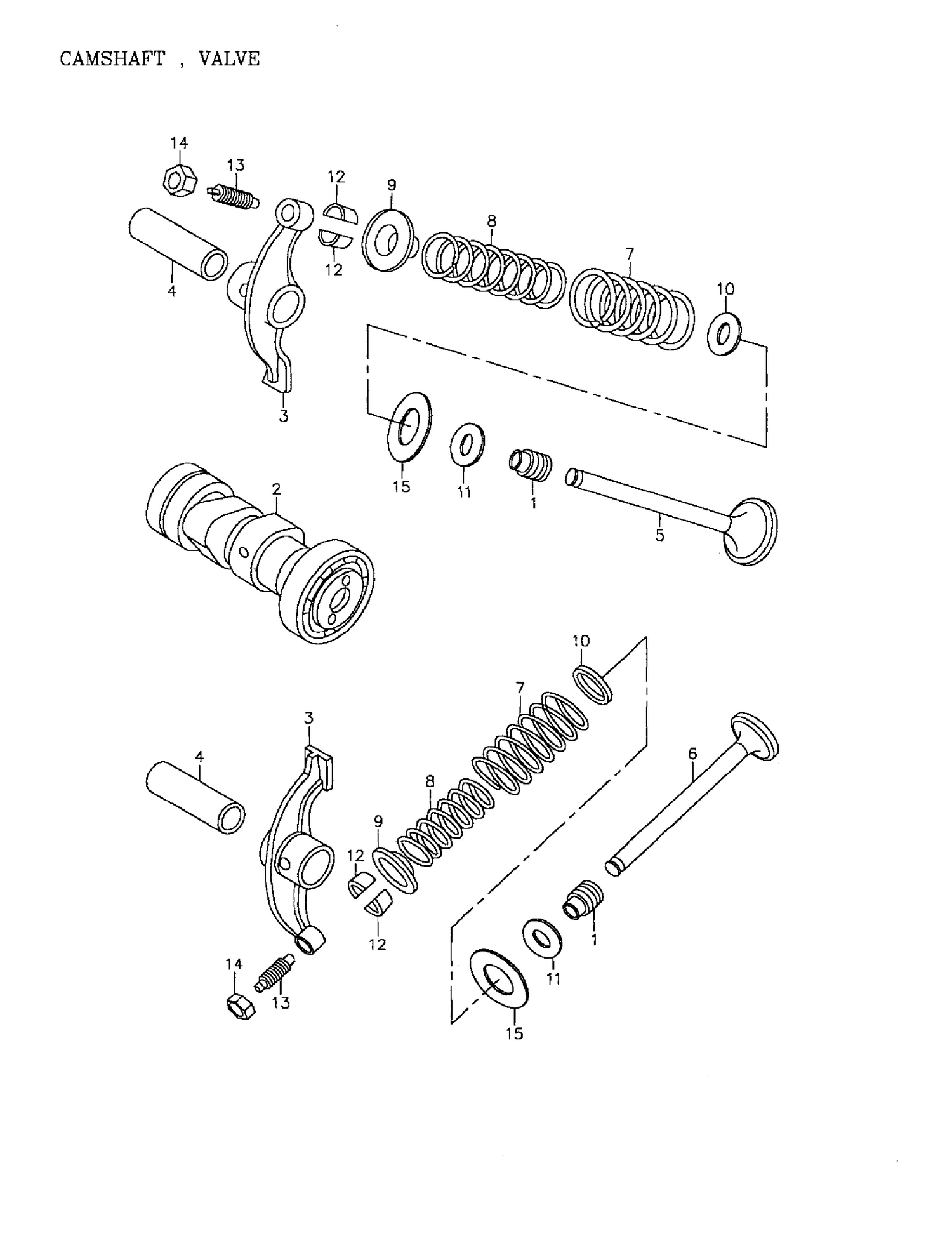

01- Camshaft, Valve (172-03)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A12209152000 | Valve Stem Seal |
| 2 | A14100152000 | Camshaft |
| 3 | A14431152000 | VALVE ROCKER ARM - Call your local BRP dealership |
| 4 | A14451152000 | Rocker Arm Shaft |
| 5 | A14711152000 | Inlet Valve |
| 6 | A14721152000 | EXHAUST VALVE - Call your local BRP dealership |
| 7 | A14751152000 | Valve Outer Spring |
| 8 | A14761152000 | Valve Inner Spring |
| 9 | A14771152000 | Valve Spring Retainer |
| 10 | A14776152000 | Valve Spring Inner Seat |
| 11 | A12210152000 | Valve Stem Seal Cap |
| 12 | A14781152000 | Valve Cotter |
| 13 | A90012120000 | VALVE GAP ADJUSTING SCREW - Call your local BRP dealership |
| 14 | A90206120000 | VALVE GAP ADJUSTING NUT - Call your local BRP dealership |
