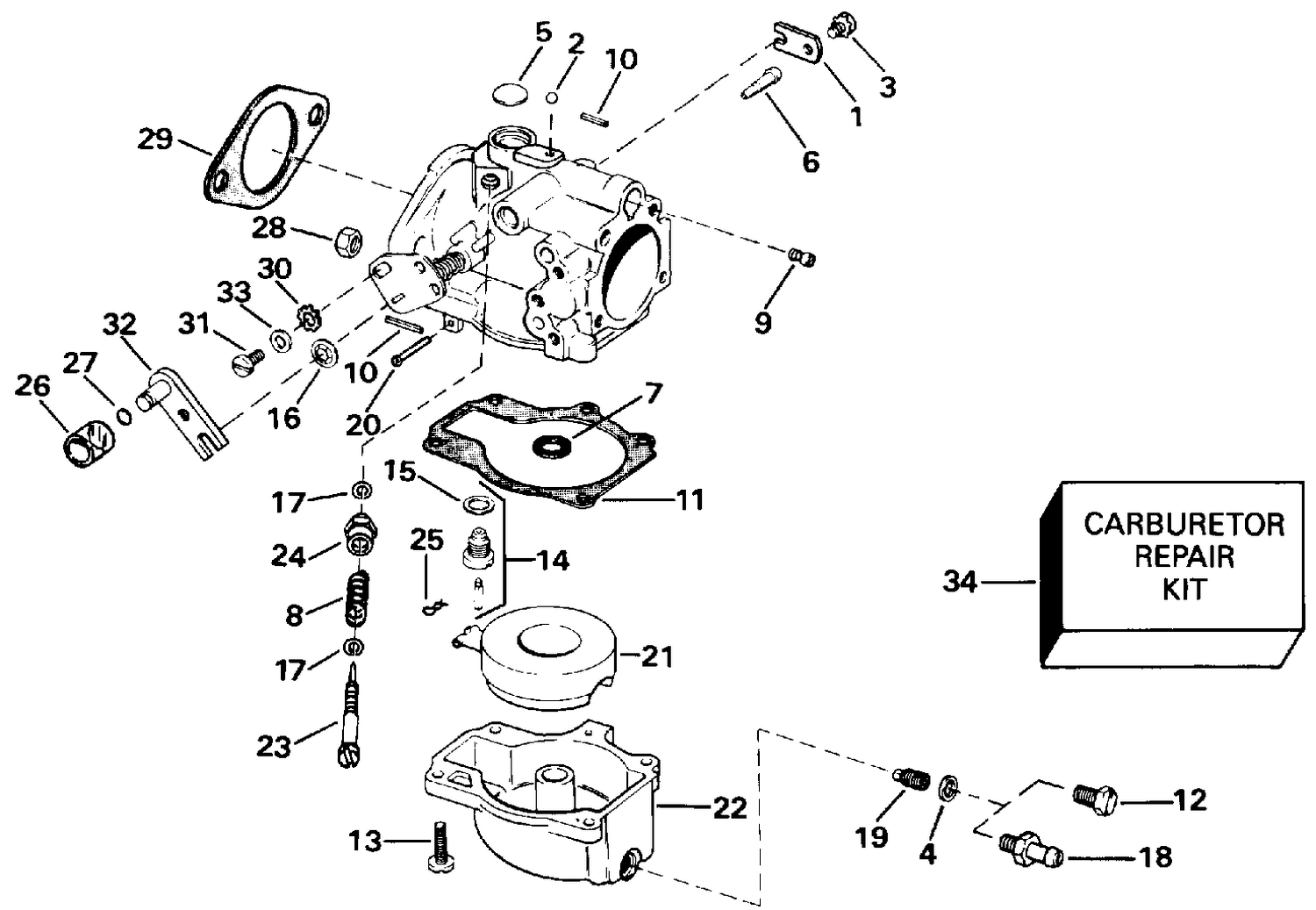

CARBURETOR - ALL 40 MODELS
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0318832 | O-RING, No. 35 |
| 9 | 0322776 | ORIFICE 150 only |
| 25 | 0336842 | CLIP, SPRING |
| 26 | 0397499 | ROLLER & SLEEVE ASSY. |
| 27 | 0308776 | O-RING |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0325092 | GASKET |
| 32 | 0397036 | LEVER & PIN |
| 0398340 | 0398340 | CARB. ASSY. |
| 0398347 | 0398347 | CARB. ASSY. |
| 0432436 | 0432436 | CARB AY |
| 0432437 | 0432437 | CARB ASSY. |
| 0432982 | 0432982 | CARB ASSY. |
| 0432983 | 0432983 | CARB. ASSY. |
| 0432984 | 0432984 | CARB. ASSY. |
| 0432985 | 0432985 | CARB. ASSY. |
