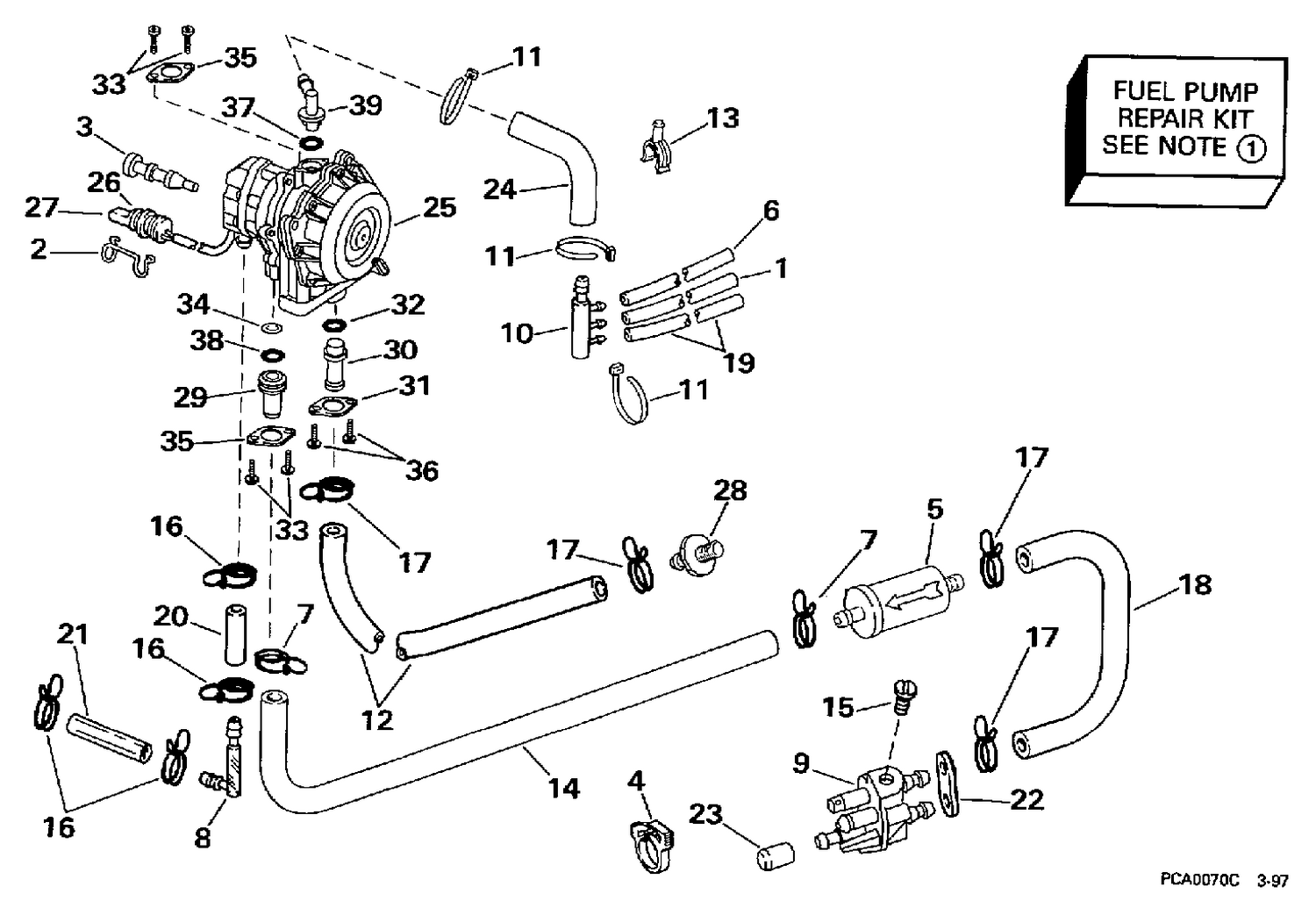

| Ref | Part Number | Description |
|---|
| 1 |
HOSE, |
Manifold to primer, 8 in. (203mm) |
| 2 |
0512743 |
DISPOSITIF DE RETENUE |
| 3 |
0333521 |
MOUNT, Isolation |
| 4 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 5 |
0360941 |
FUEL FILTER, 65 micron This part replaces 0435918. |
| 6 |
HOSE, |
Fuel manifold to carb., upper, 6 1/4 in (159mm) |
| 7 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 8 |
0331841 |
SIGHT TUBE OIL |
| 9 |
0398229 |
BODY AY |
| 10 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0329661 |
SUPPORT/BOUCHON |
| 14 |
HOSE, |
Filter to fuel pump, 10 3/4 in. (273mm) |
| 15 |
0328731 |
VIS, câble de verrouillage |
| 16 |
0339277 |
CLAMP, Exh back pressure hose |
| 17 |
0339278 |
COLLIER DE SERRAGE |
| 19 |
HOSE, |
Fuel manifold to lower carb., 5 in. (125mm) |
| 20 |
HOSE, |
Sight tube to pump, 1 1/2 in. (38mm) |
| 21 |
HOSE, |
Oil conn. to sight tube, 3 in. (76mm) |
| 22 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 24 |
0332845 |
HOSE |
| 25 |
5007421 |
Kit Ay This part replaces 0435559. |
| 31 |
0340201 |
RETAINER |
| 37 |
0335230 |
O-RING |
