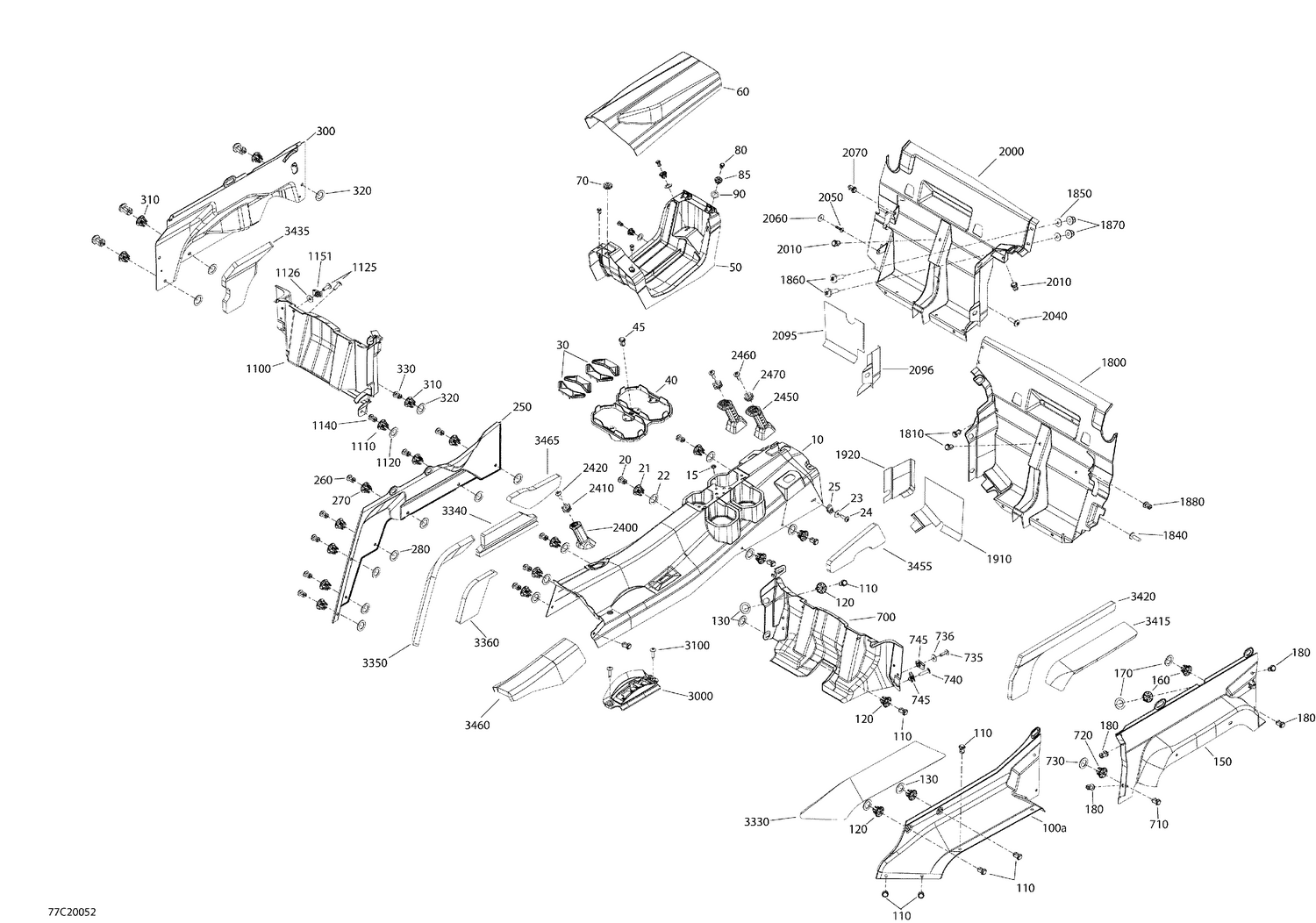

09- Cab Interior - Upper part
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715006470 | Front Center Console Assembly This part replaces 715005503. |
| 15 | 732610072 | Push Nut |
| 20 | 293150230 | Tuflok Plastic Rivet |
| 21 | 707900133 | Insert |
| 22 | 503189273 | Washer |
| 23 | 234062670 | Stainless Steel Flat Washer |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 25 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 30 | 707900036 | Cup Retainer |
| 40 | 707900100 | Cup Holder |
| 45 | 293150230 | Tuflok Plastic Rivet |
| 50 | 707900075 | Rear Central Console |
| 60 | 707900229 | Rear Console Cover Kit |
| 70 | 517303756 | Grommet |
| 80 | 293150230 | Tuflok Plastic Rivet |
| 85 | 707900133 | Insert |
| 90 | 503189273 | Washer |
| 100a | 707900001 | LH Side Console |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 120 | 707900133 | Insert |
| 130 | 503189273 | Washer |
| 150 | 707900633 | Rear Left Dash |
| 160 | 707900133 | Insert |
| 170 | 503189273 | Washer |
| 180 | 293150230 | Tuflok Plastic Rivet |
| 250 | 707900002 | RH Side Console |
| 260 | 293150230 | Tuflok Plastic Rivet |
| 270 | 707900133 | Insert |
| 280 | 503189273 | Washer |
| 300 | 707900080 | RH Rear Console Panel |
| 310 | 707900133 | Insert |
| 320 | 503189273 | Washer |
| 330 | 293150230 | Tuflok Plastic Rivet |
| 700 | 707900082 | LH Rear Upper Floor Cover |
| 710 | 293150230 | Tuflok Plastic Rivet |
| 720 | 707900133 | Insert |
| 730 | 503189273 | Washer |
| 735 | 250000722 | Torx Screw M6 X 20 |
| 736 | 234062670 | Stainless Steel Flat Washer |
| 740 | 250000758 | Torx Screw M6 X 25 |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1100 | 707900083 | Seat Cover |
| 1110 | 707900133 | Insert |
| 1120 | 503189273 | Washer |
| 1125 | 250000722 | Torx Screw M6 X 20 |
| 1126 | 234062670 | Stainless Steel Flat Washer |
| 1140 | 293150230 | Tuflok Plastic Rivet |
| 1151 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1800 | 707900220 | DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 1840 | 250000720 | Torx Screw K50 X 16 |
| 1850 | 250200040 | Flat Washer |
| 1860 | 250000712 | Torx Screw M6 X 20 |
| 1870 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1880 | 293150230 | Tuflok Plastic Rivet |
| 1910 | 707900182 | Heat Shield |
| 1920 | 707900183 | Heat Shield |
| 2000 | 707900219 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 2010 | 293150230 | Tuflok Plastic Rivet |
| 2040 | 250000720 | Torx Screw K50 X 16 |
| 2050 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2060 | 234062670 | Stainless Steel Flat Washer |
| 2070 | 293150230 | Tuflok Plastic Rivet |
| 2095 | 707900167 | Heat Shield |
| 2096 | 707900184 | Heat Shield |
| 2400 | 707900011 | Passenger Handle |
| 2410 | 250000722 | Torx Screw M6 X 20 |
| 2420 | 707900048 | Connector Tube |
| 2450 | 707900103 | Handle |
| 2460 | 250000722 | Torx Screw M6 X 20 |
| 2470 | 707900048 | Connector Tube |
| 3000 | 707900088 | Shift Lever Indicator |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3330 | 707900621 | LH Lower Lateral Console Foam |
| 3340 | 707900622 | RH Lateral Console Foam |
| 3350 | 707900623 | RH Lateral Console Foam |
| 3360 | 707900624 | RH Lateral Console Foam |
| 3415 | 707900625 | LH Rear Lateral Foam |
| 3420 | 707900626 | LH Rear Lateral Foam |
| 3435 | 707900627 | RH Rear Lateral Foam |
| 3455 | 707900628 | Front Central Foam |
| 3460 | 707900629 | Front Central Foam |
| 3465 | 707900630 | Front Central Foam |
