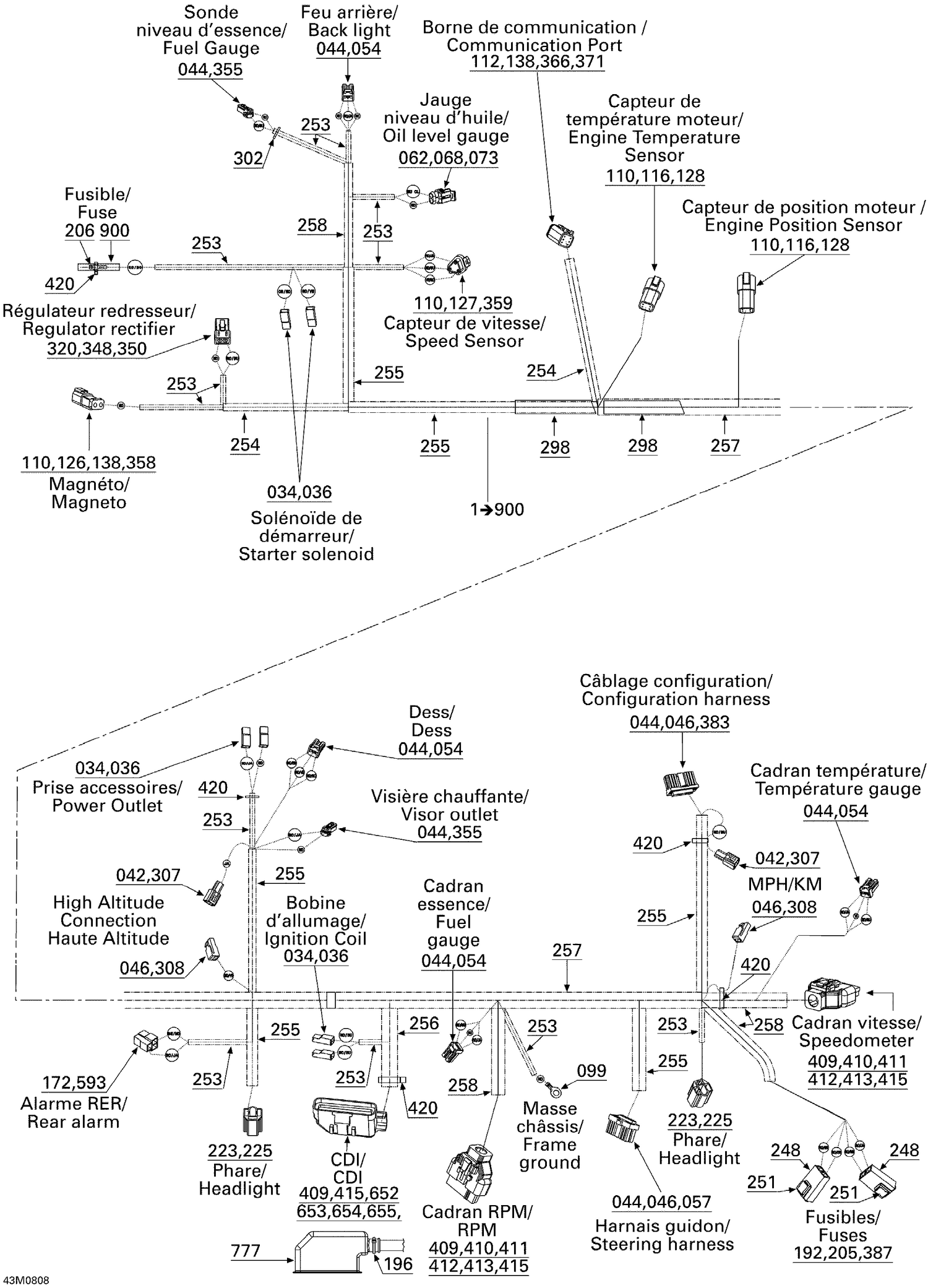

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 42 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 57 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 62 |
278001014 |
Female Terminal |
| 68 |
409209500 |
Female Housing, 2 Circuits |
| 73 |
278001013 |
Wire Seal |
| 99 |
278000992 |
Open Barrel |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 116 |
278000635 |
Female Housing, 4 Circuits |
| 126 |
409207500 |
Male Lock, 2 Circuits |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 128 |
278000636 |
Female Wedge, 4 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 192 |
409003900 |
Fuse, 20 Amperes |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 205 |
409011600 |
Female Terminal |
| 206 |
409004200 |
Female Terminal |
| 223 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 225 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 248 |
409004000 |
Fuse Holder |
| 251 |
409014200 |
CLIP - Call your local BRP dealership |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 298 |
293740005 |
Tape |
| 302 |
293750001 |
Tie Wrap 94 mm |
| 307 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 308 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 320 |
515175567 |
Female Terminal |
| 348 |
278001673 |
Female Terminal Housing, 2 Circuits |
| 350 |
278001671 |
Female Lock, 2 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 358 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 359 |
515175666 |
Male Housing |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 413 |
515175804 |
BLOCK - Call your local BRP dealership |
| 415 |
515175806 |
Female Terminal |
| 420 |
414115200 |
Tie-Rap 180 mm |
| 593 |
515176069 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 652 |
515176221 |
Female Housing |
| 653 |
515176222 |
Wire Seal |
| 654 |
515176223 |
Female Terminal Housing, 36 Circuits |
| 655 |
515176224 |
Terminal Support |
| 777 |
515176485 |
Protection Cap |
