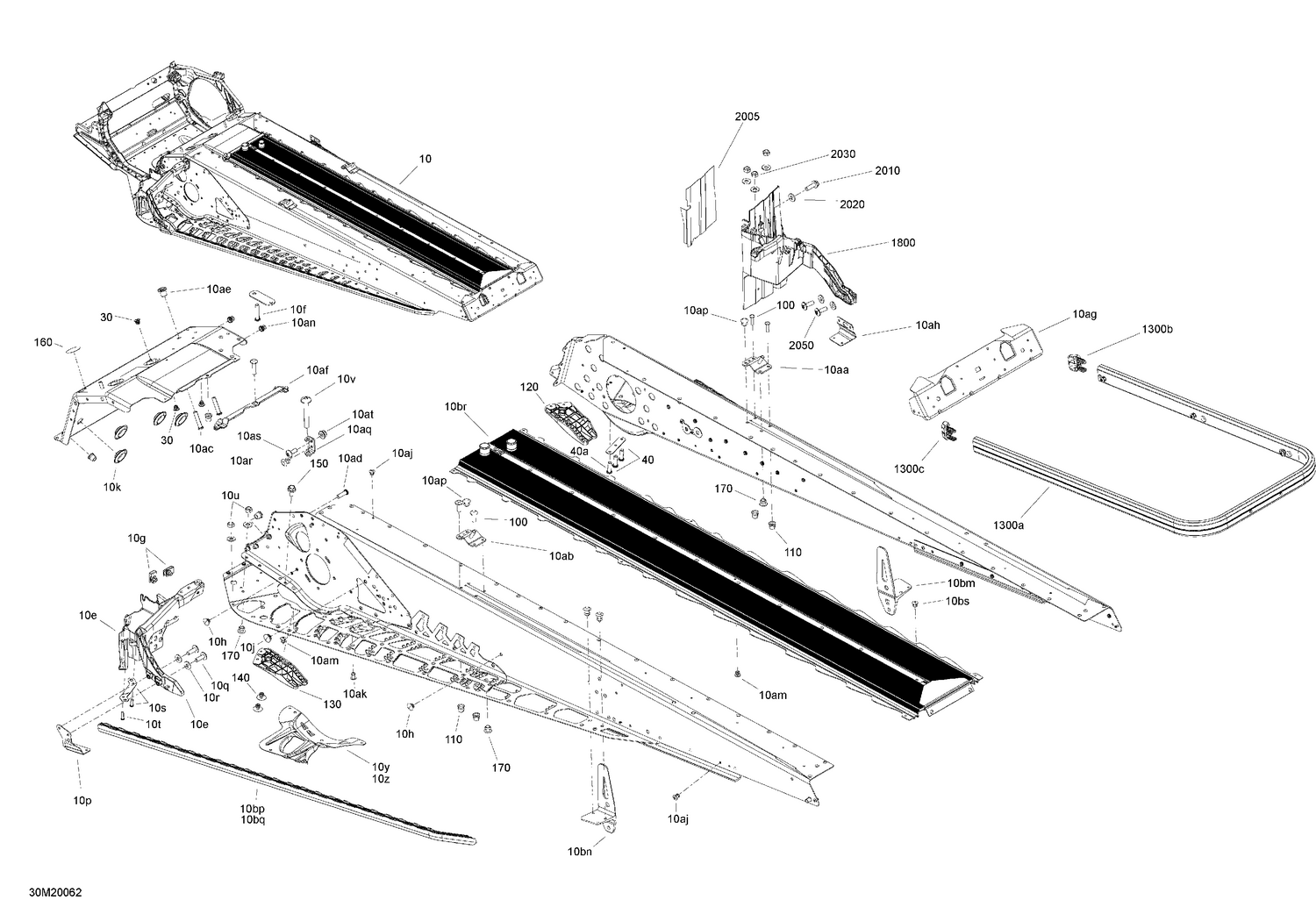

09- Frame - Rear Section - Package-Sport
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 390402400 | Pop Rivet 3/16" |
| 40a | 250300027 | Clinch Stud M6 X 20 |
| 100 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 110 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 120 | 518325782 | RH Deflector, Black Polypropylene |
| 130 | 518325783 | LH Deflector, Black Polypropylene |
| 140 | 293150104 | Pop Rivet 3/16" |
| 150 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 160 | 518325560 | Adhesive Patch |
| 170 | 293150174 | Hemlock Rivet, 6.4 mm |
| 1300b | 520000711 | Full Moon RH Cap |
| 1300c | 520000712 | Full Moon LH Cap |
| 1800 | 518326472 | Battery Support |
| 2005 | 514054755 | HEAT SHIELD - Call your local BRP dealership |
| 2010 | 210262040 | Hex. Flange Screw M6 X 20 |
| 2020 | 250200039 | Flat Washer |
| 2030 | 232561414 | Elastic Stop Nut M6 |
