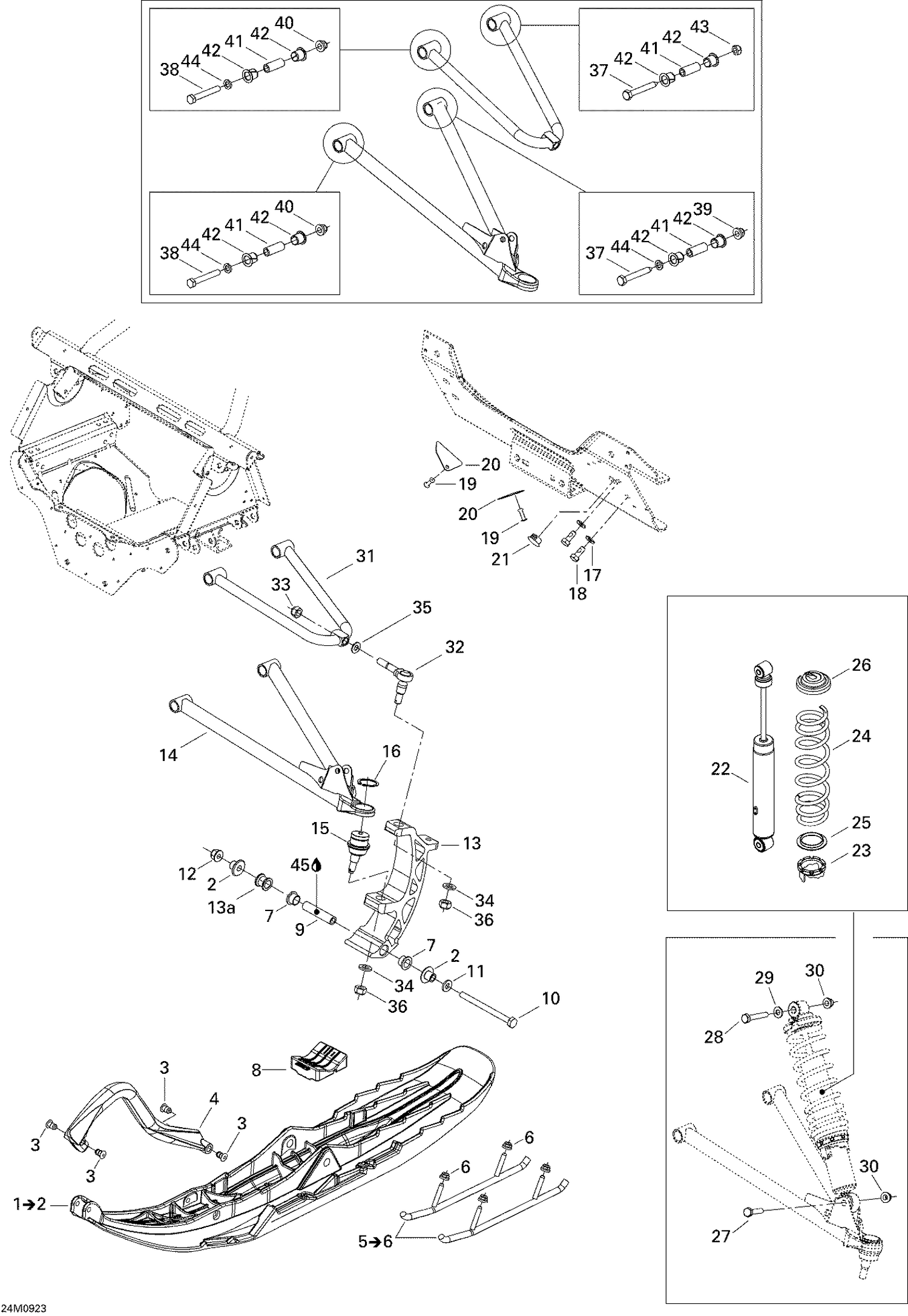

07- Front Suspension And Ski
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073055 | Black Pilot Ski Ass'y 6.9 LH This part replaces 505072175. |
| 2 | 505071781 | Ski Bushing |
| 3 | 505071812 | Retainer 17mm long |
| 4 | 505070963 | Black, Handle |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 505072690 | Leg Bushing This part replaces 505070954. |
| 8 | 505071779 | Ski Stopper |
| 9 | 506133300 | Spacer |
| 10 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 11 | 732900049 | Washer |
| 12 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 13 | 505071248 | SKI LEG - Call your local BRP dealership |
| 13a | 505071215 | SPACER - Call your local BRP dealership |
| 14 | 860512800 | LH LOWER ARM ASS'Y - Call your local BRP dealership |
| 14 | 860512900 | RH LOWER ARM ASS'Y - Call your local BRP dealership |
| 15 | 505073636 | Ball Joint This part replaces 505072251. |
| 16 | 293370035 | Circlip |
| 17 | 234081410 | Flat Washer 8 mm |
| 18 | 250000118 | Hex. Screw With Nylon |
| 19 | 293150103 | Pop Rivet 3/16" |
| 20 | 505071131 | ALUMINIUM PLUG - Call your local BRP dealership |
| 21 | 572072100 | CAP - Call your local BRP dealership |
| 22 | 505071662 | FRONT SHOCK - Call your local BRP dealership |
| 23 | 505073625 | Adjustment Cam This part replaces 503183700. |
| 24 | 505072022 | Viper Red Spring |
| 25 | 503187500 | Spring Guide |
| 26 | 706200881 | Spring Stopper |
| 27 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 28 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 29 | 503189564 | Washer |
| 30 | 233201414 | Hex. Flange Elastic Nut M10 |
| 31 | 505071816 | UPPER ARM - Call your local BRP dealership |
| 32 | 505072257 | Upper Ball Joint |
| 33 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 34 | 234021410 | Flat Washer 12 mm |
| 35 | 503189276 | Washer |
| 36 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 37 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000216. |
| 38 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000218. |
| 39 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 40 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 41 | 505070567 | Bushing |
| 42 | 505070566 | Arm Bushing |
| 43 | 232501416 | Elastic Flange Nut M10 |
| 44 | 503189564 | Washer |
