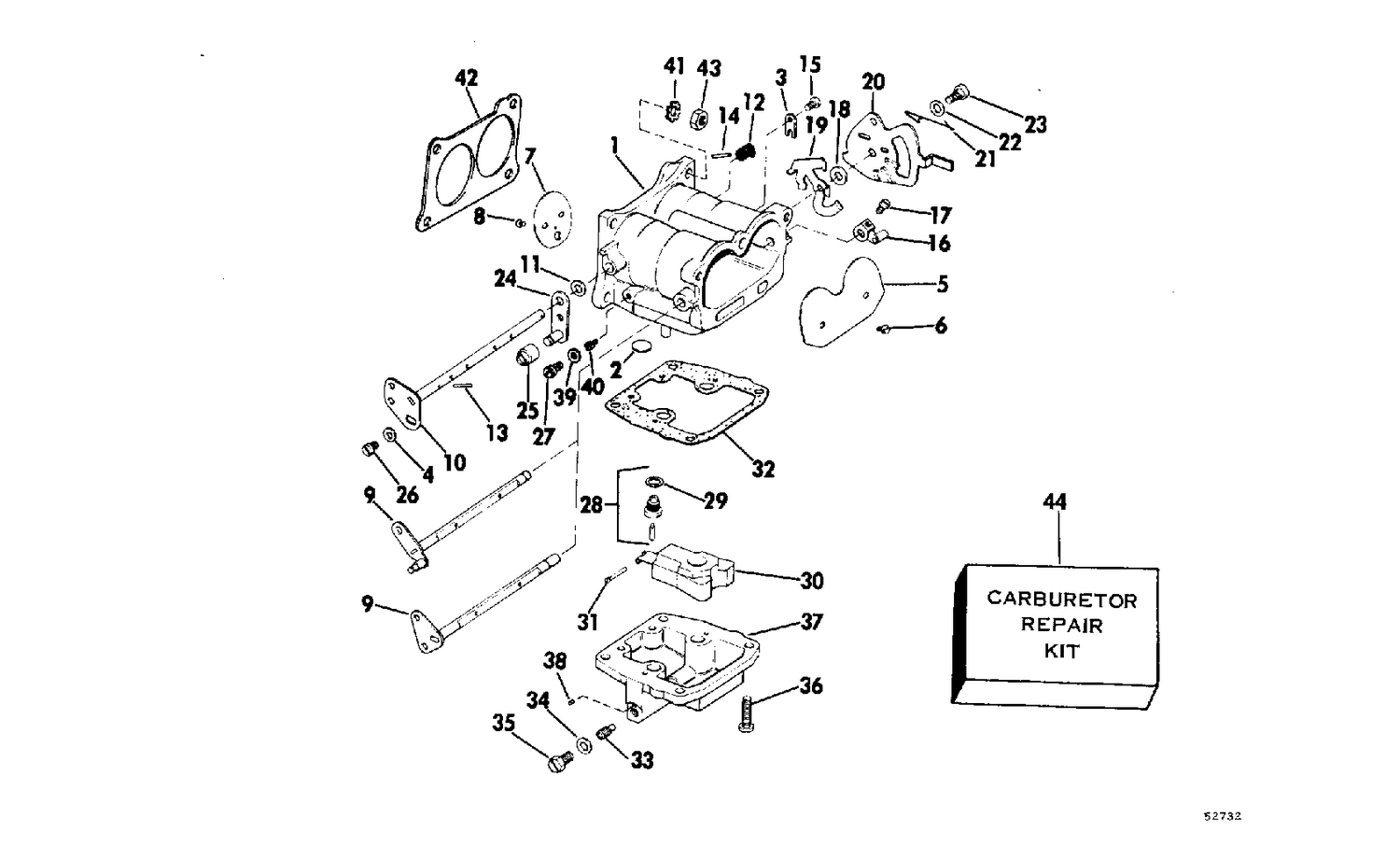

| Ref | Part Number | Description |
|---|
| 1 |
0387044 |
BODY ASSY.,Upper |
| 1 |
0387045 |
BODY ASSY.,Lower |
| 3 |
0314906 |
CLIP |
| 7 |
0317182 |
THROTTLE VALVE |
| 20 |
0320049 |
LEVER,Manual choke |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 27 |
0317501 |
SCREW PLUG, Orifice |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0317183 |
ORIFICE PLUG |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0384913 |
FLOAT CHAMBER ASSY |
| 42 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 43 |
0328742 |
NUT This part replaces 0306338. |
| 0386502 |
0386502 |
CARB ASSY., Upper |
| 0386727 |
0386727 |
CARB ASSY.,Lower |
