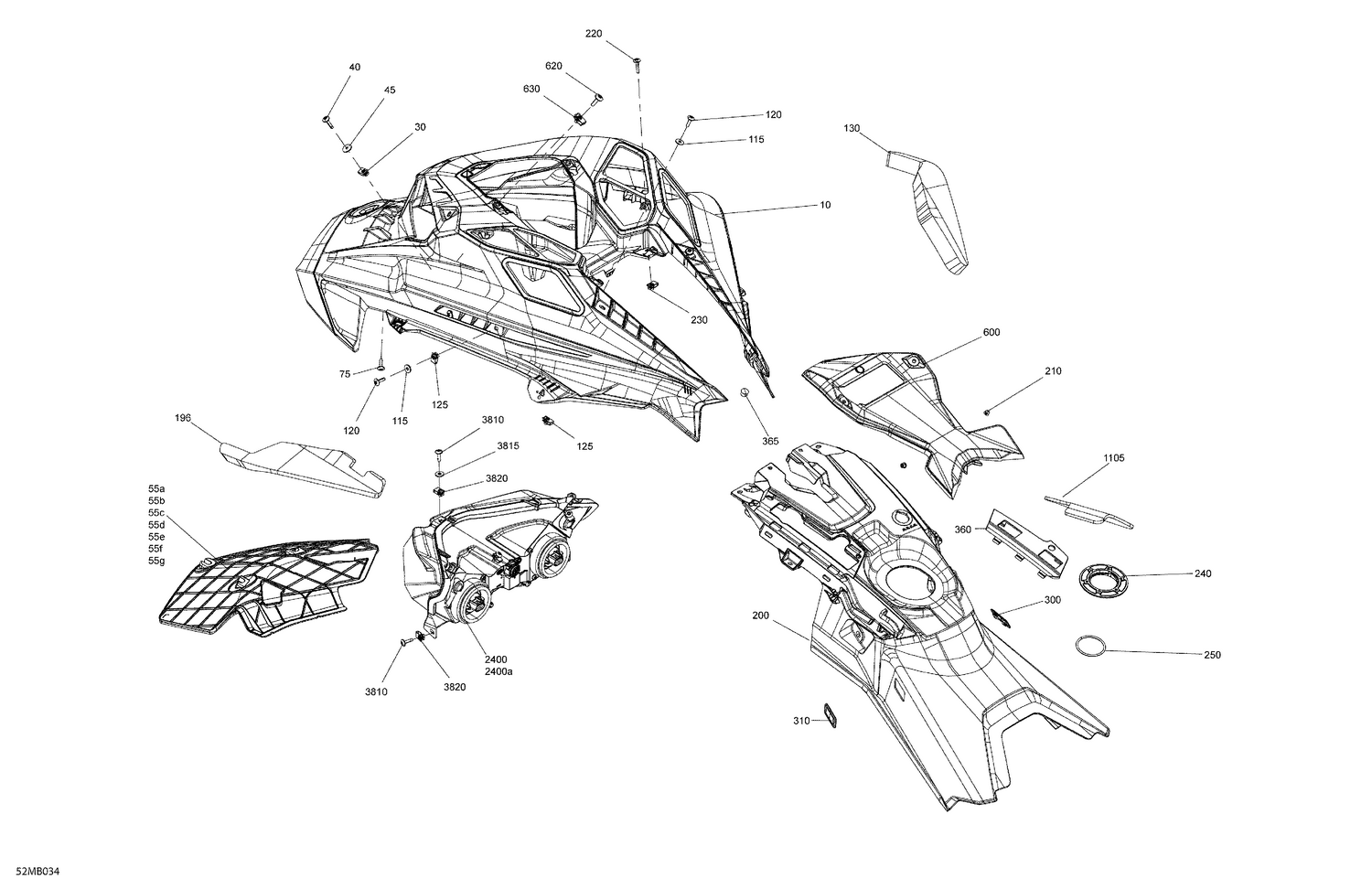

07- Body - Hood
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 40 | 250000587 | Torx Screw M5 X 26 |
| 45 | 250200166 | Washer |
| 55a | 517307545 | Support CTRL |
| 55b | 517308255 | Heat Shield |
| 55c | 517308256 | Heat Shield |
| 55d | 517307550 | Hood Acoustic Insulation |
| 55e | 503193995 | Washer |
| 55f | 250000725 | Screw M4 X 16 |
| 55g | 219704364 | Neoprene Seal (1PAC=3M) |
| 75 | 250000725 | Screw M4 X 16 |
| 115 | 517307442 | Washer |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 125 | 250000958 | Panel Nut M5 X 0.8 |
| 130 | 705015250 | Self-Adhesive Spacer |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517307685 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 360 | 517306583 | LH Front Console |
| 365 | 572051500 | Cap |
| 600 | 517307038 | Indicator Support |
| 620 | 250000586 | Torx Truss M5 X 20 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 1105 | 517307696 | Rubber Sheet |
| 2400a | 415130081 | Bulb |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3815 | 517307442 | Washer |
