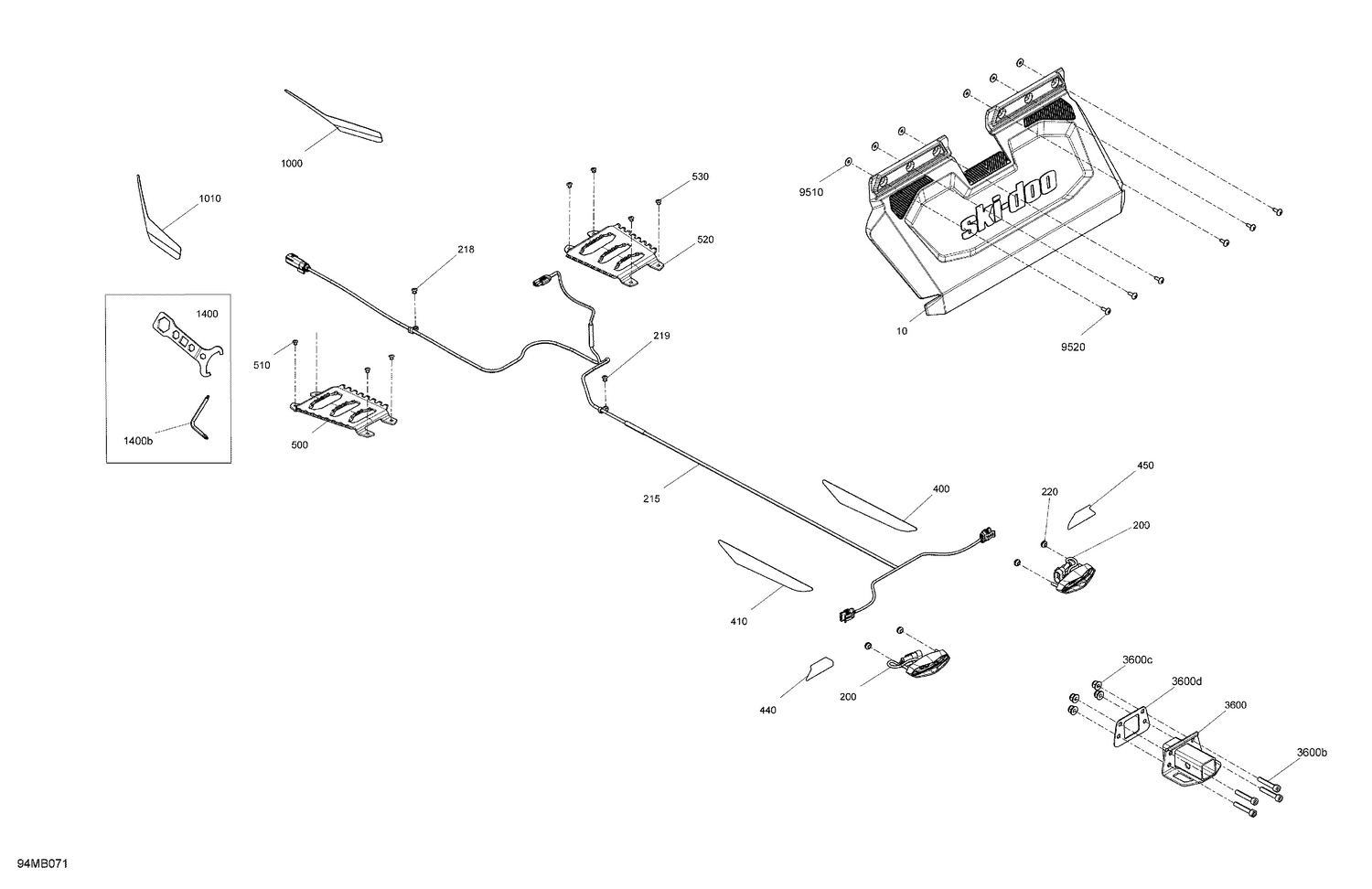

09- Miscellaneous - Utilities
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002036 | Guard_Snow Short |
| 200 | 520002636 | Tail Light This part replaces 520001738. |
| 215 | 515178634 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 510 | 293150102 | Rivet 3/16" |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3600b | 250001086 | Socket Head Screw M8 x 45 |
| 3600c | 233281466 | Elastic Flange Nut M8 |
| 3600d | 511001377 | Rear Chassis Reinforcement |
| 9510 | 250200025 | Washer M5 |
