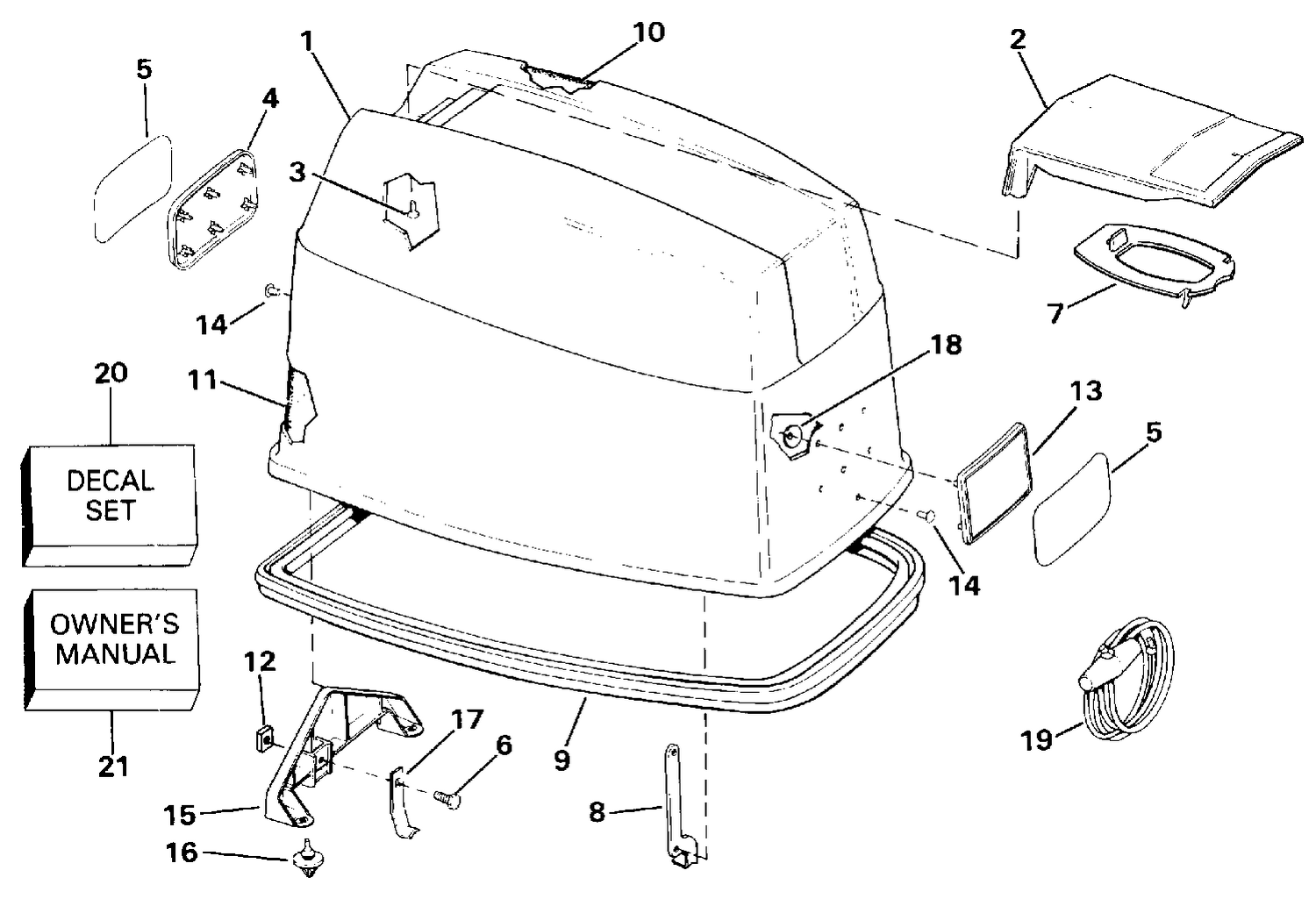

ENGINE COVER - JOHNSON
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432097 | ENGINE COVER ASSEMBLY |
| 1 | 0434557 | ENGINE COVER ASSEMBLY This part replaces 0433121. |
| 4 | 0331576 | APPLIQUE, Engine cover, rear |
| 5 | 0334321 | PLATE, Front & rear |
| 5 | 0335058 | PLATE, Front |
| 9 | 0325224 | SEAL, Engine cover |
| 9 | 0329273 | SEAL, Engine cover |
| 13 | 0331006 | APPLIQUE, Front |
| 13 | 0335034 | APPLIQUE, Front |
| 19 | 0378347 | CORDE DE LANCEUR |
| 20 | 0433125 | DECAL SET |
| 20 | 0433206 | DECAL SET |
| 21 | 0432379 | OWNER'S MANUAL |
| 21 | 0432380 | OWNER'S MANUAL |
