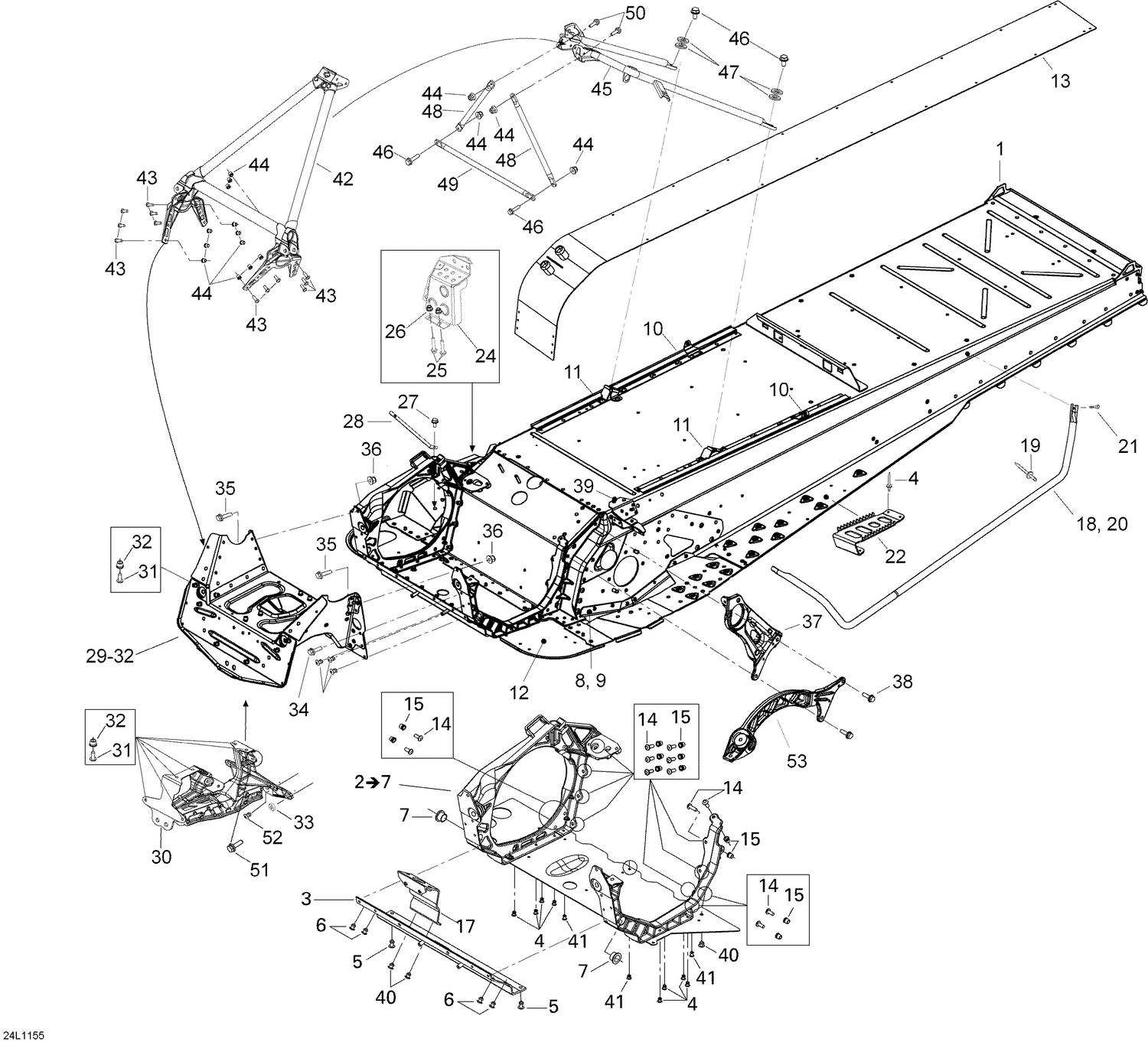

| Ref | Part Number | Description |
|---|
| 1 |
518326514 |
Frame ass'y XU |
| 2 |
518328187 |
Module Engine This part replaces 518326524. |
| 3 |
518326198 |
Front Member |
| 4 |
293150144 |
Stavex Rivet |
| 5 |
293150120 |
Hemlock Rivet 6.5 mm |
| 6 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 7 |
505072690 |
Leg Bushing |
| 8 |
518326439 |
Drive Axle Cover LH |
| 9 |
518326440 |
Drive Axle Cover RH |
| 10 |
518325987 |
Seat Box Bracket |
| 11 |
518326109 |
SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 11 |
518326110 |
SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 12 |
518325524 |
Frame Corner LH |
| 12 |
518325526 |
FRAME CORNER RH - Call your local BRP dealership |
| 13 |
509000645 |
Radiator Tunnel |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
518325371 |
MAG Engine Support |
| 18 |
518326963 |
LH Footboard Support Tube This part replaces 605254999. |
| 19 |
293150163 |
Rivet Hucklok |
| 20 |
518326964 |
RH Footboard Support Tube This part replaces 605255000. |
| 21 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 22 |
520000492 |
Footrest |
| 24 |
518326464 |
TOE HOOK LH - Call your local BRP dealership |
| 24 |
518326465 |
TOE HOOK RH - Call your local BRP dealership |
| 25 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 28 |
514054616 |
SPRING BRACKET - Call your local BRP dealership |
| 29 |
518328392 |
Cross Member This part replaces 518326764. |
| 30 |
518327487 |
Support This part replaces 518325925. |
| 31 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 34 |
210262050 |
Forming Screw M6 x 20 This part replaces 210262080. |
| 35 |
250000450 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
518327372 |
PULLEY SUPPORT - Call your local BRP dealership This part replaces 518326185. |
| 38 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 39 |
605355235 |
FASTENING BRACKET - Call your local BRP dealership |
| 40 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 41 |
293150144 |
Stavex Rivet |
| 42 |
518326970 |
Front Member This part replaces 518326555. |
| 43 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 45 |
518329107 |
UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 46 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 47 |
Not |
Available As Spare Part - Lock washer D6 |
| 48 |
518325114 |
Upper Column Support |
| 49 |
518325115 |
Center Column Support |
| 50 |
250000450 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 51 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 52 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
