Parts Catalog

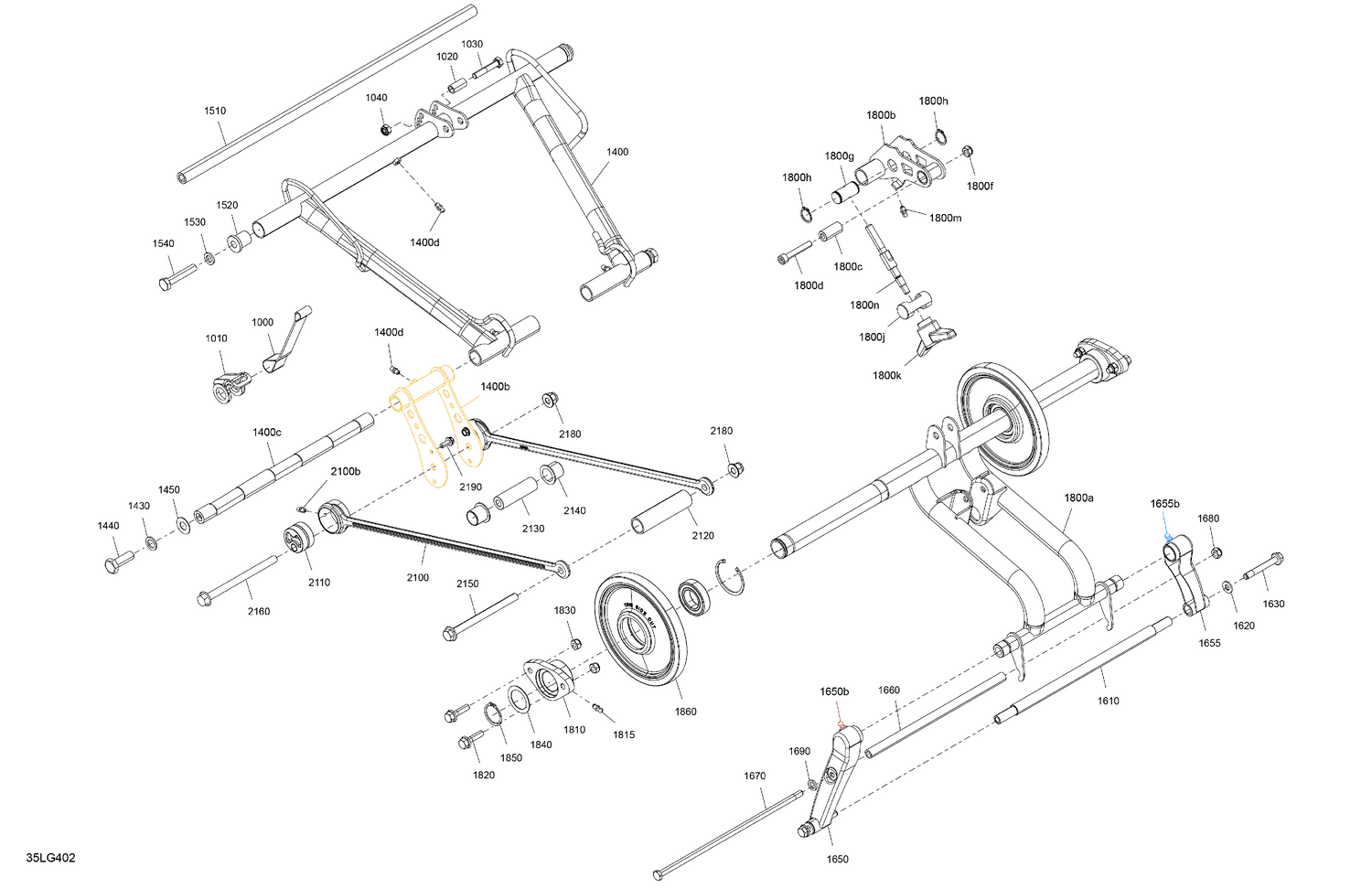

05- Suspension - Rear - Upper Section

Parts (50)

Ref	Part Number	Description
1000	503196938	Limiter Strap
1010	503194867	Holder, Limiter Strap
1020	503195579	Sleeve
1030	207084544	Hex. Screw M8 X 45
1040	232581414	Hex. Elastic Stop Nut M8
1400b	503195780	Rocker
1400c	503194641	Lower Shaft
1400d	408200700	Grease Fitting
1430	503192491	Washer
1440	250000537	Hex. Cap Screw M12 X 35
1450	706200281	Hardened Washer
1510	503191392	Upper Shaft
1520	503189324	Bushing
1530	503191926	Washer
1540	250000605	Hex. Screw S.GRIP M10 X 55
1610	503198405	AXLE_PIVOT ARM
1620	503192494	Washer
1630	207586044	Hex. Flange Screw M8 X 60, Scotch Grip
1650b	408200700	Grease Fitting
1655b	408200700	Grease Fitting
1660	503195343	Spacer
1670	503195342	Bolt M8
1680	232581414	Hex. Elastic Stop Nut M8
1690	250200111	Washer
1800a	503196966	Rear Arm Suspension
1800b	503194849	Adjuster
1800c	503195040	Sleeve
1800d	205085044	Socket Head Screw M8 x 50
1800f	232581414	Hex. Elastic Stop Nut M8
1800g	503194622	Adjuster Nut
1800h	293370095	Snap Ring
1800j	503194623	Adjuster Guide
1800k	503195185	Adjuster Knob
1800m	408200700	Grease Fitting
1800n	503195393	Adjuster Screw
1810	503198119	Suspension Arm Bushing
1815	408200700	Grease Fitting
1820	207683054	Hex. Flange Screw M8 X 30
1830	232581414	Hex. Elastic Stop Nut M8
1840	503195150	Shim Ring 30X42X1.0
1850	293370143	Circlip
1860	503195041	Wheel Ass'y 170 MM
2100b	408200700	Grease Fitting
2110	503195337	Rod Shaft
2120	503194457	Rod Shaft
2130	503195030	Front Swing Shaft
2140	503195184	Bushing
2150	230603044	Hex. Flanged Screw DIN.6921
2160	230604044	Hex. Flanged Screw M10 X 140
2180	233201414	Hex. Flanged Elastic Nut M10
