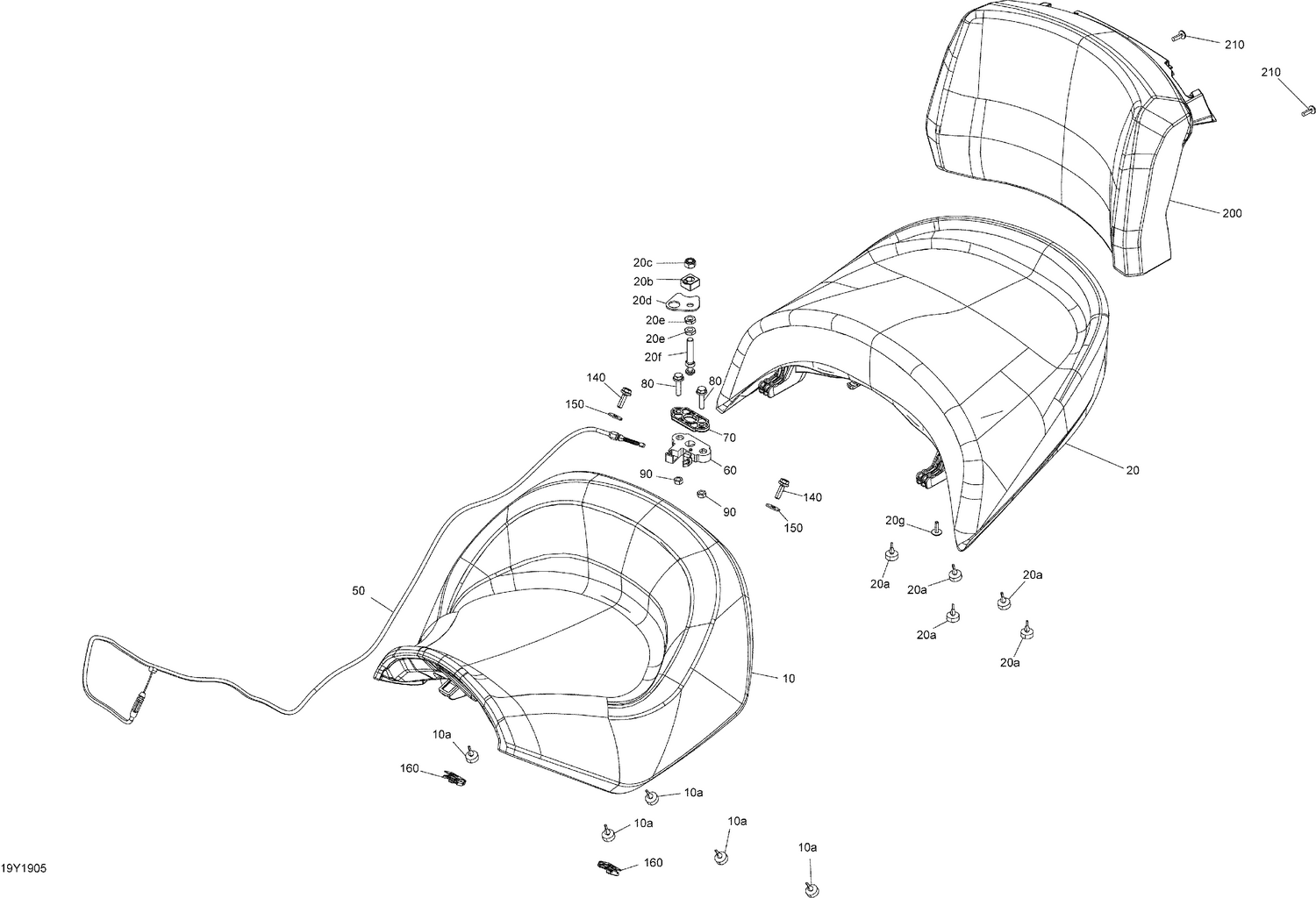

09- Seat
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 708000759 | Rubber Stopper |
| 20a | 708000759 | Rubber Stopper |
| 20b | 269501943 | Elastic Nut Housing M8 |
| 20c | 232581200 | Hex. Elastic Nut M8 Brass |
| 20d | 708001909 | Washer |
| 20e | 232180600 | Hex. Jam Nut M8 |
| 20f | 708001741 | Lug |
| 20g | 250000725 | Screw M4 X 16 |
| 50 | 708001743 | Seat Cable |
| 60 | 705007379 | Latch |
| 70 | 708001771 | Brace |
| 80 | 207562556 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 90 | 232061414 | Hex. Nut M6 |
| 140 | 207662044 | Hex. Flange Screw M6 X 20 |
| 150 | 250200082 | Flat Washer |
| 160 | 250100208 | Panel Nut M6 X 1.0 |
| 200 | 708301986 | Backrest Ass'y |
