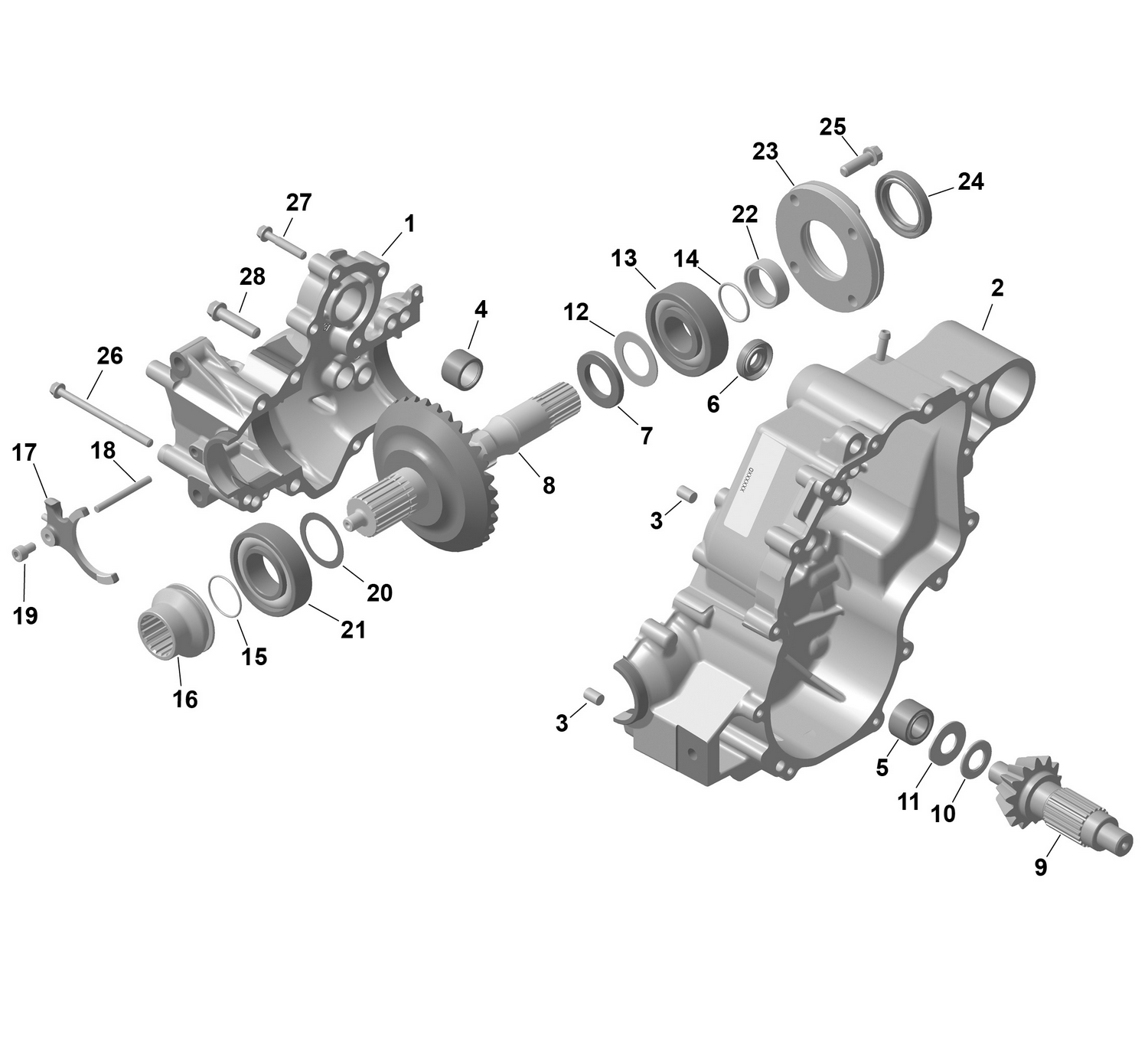

01- ROTAX - GearBox 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420832240 | Needle Bushing |
| 4 | 420232085 | Needle Bushing |
| 6 | 420247773 | Distance Ring |
| 8 | XXX | Not Available As Spare Parts |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 420632300 | Axial Needle Bearing |
| 11 | 420281306 | Thrust Washer Set, MAG Side |
| 12 | 420281300 | Washer Thrust Set |
| 13 | 420932822 | Ball Bearing |
| 16 | 420257674 | Shifting Sleeve |
| 17 | 420257606 | Shifting Fork |
| 18 | 420832650 | Needle Pin |
| 19 | 420241081 | Allen Screw M6 X 10 |
| 20 | 420944584 | Shim 0.5 |
| 21 | 420932580 | Ball Bearing |
| 22 | 420247125 | Distance Ring |
| 23 | 420611444 | Bearing Cover This part replaces 420611441. |
| 25 | 420440372 | Torx Flange Screw M8 X 25 |
| 26 | 420641228 | Torx Flange Screw M6 X 85 This part replaces 420440347. |
| 27 | 420440274 | Torx Flange Screw M6 X 35 |
