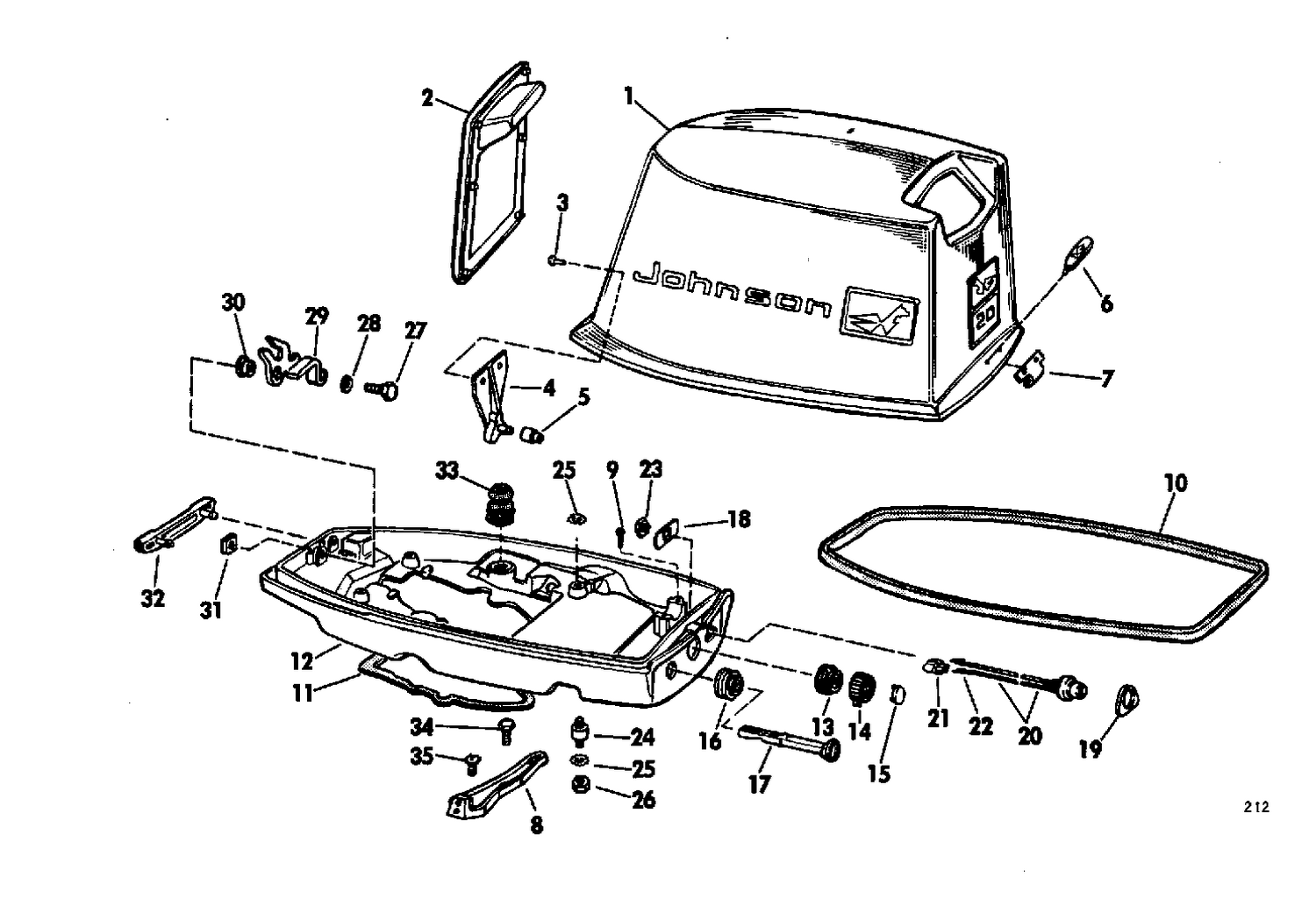

| Ref | Part Number | Description |
|---|
| 1 |
0382608 |
MOTOR COVER ASSEMBLY COMPLETE |
| 2 |
0313829 |
TILT HANDLE |
| 4 |
0378577 |
ANCHOR BLOCK & PIN |
| 6 |
0379354 |
PLATE, Rivet, front hook |
| 7 |
0308209 |
HOOK, Motor cover |
| 8 |
0307467 |
BRACKET |
| 9 |
0307907 |
SCREW |
| 10 |
0313173 |
SEAL, Motor cover This part replaces 0313170. |
| 12 |
0308357 |
COVER,Motor,lower |
| 13 |
0308242 |
CONDENSER,Coil |
| 14 |
0312533 |
KNOB,High speed |
| 15 |
0312534 |
PLUG |
| 16 |
0204457 |
GOMMET, Choke knob |
| 17 |
0312535 |
KNOB, Choke control |
| 18 |
0309936 |
RETAINER, Shorting switch |
| 19 |
0309937 |
PLATE |
| 20 |
0379638 |
SHORTENING SWITCH ASSY |
| 24 |
0377582 |
MOUNT, Rubber |
| 25 |
0306799 |
L'WASHER,Bracket to hsg. |
| 27 |
0308201 |
SCREW |
| 28 |
0204445 |
BOW WASHER |
| 29 |
0308200 |
LEVER, Latch |
| 30 |
0204444 |
BUSHING |
| 32 |
0308225 |
REST, Motor |
| 33 |
0306119 |
GROMMET |
| 35 |
0307468 |
SCREW, Mount bracket, starboard |
