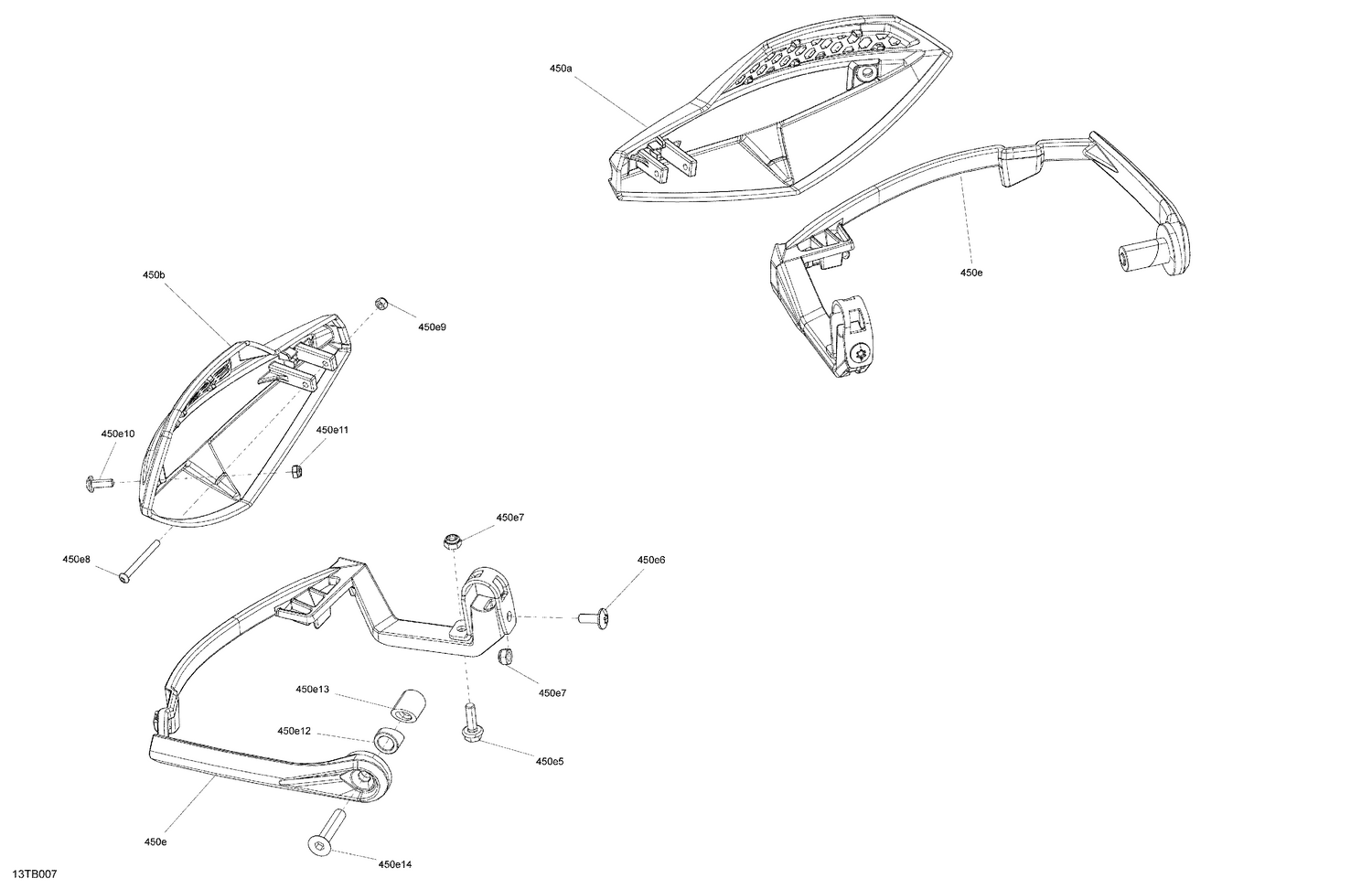

03- Mechanic - Air Deflector
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 450a | 709401303 | Deep Black RH Air Deflector |
| 450b | 709401304 | Deep Black LH Air Deflector |
| 450e10 | 250000742 | Torx Screw M5 X 14 |
| 450e11 | 232551600 | Hex. Elastic Nut M5 |
| 450e12 | 709400161 | Small Bracket |
| 450e13 | 709400162 | Large Bracket |
| 450e14 | 205384034 | Socket Head Screw |
| 450e5 | 207662044 | Hex. Flange Screw M6 X 20 |
| 450e6 | 250000717 | Torx Head Screw M6 X 16 |
| 450e7 | 232561600 | Hex. Elastic Stop Nut M6 |
| 450e8 | 205444086 | Socket Head Screw M4 X 40 |
| 450e9 | 232541414 | Elastic Stop Nut M4 |
