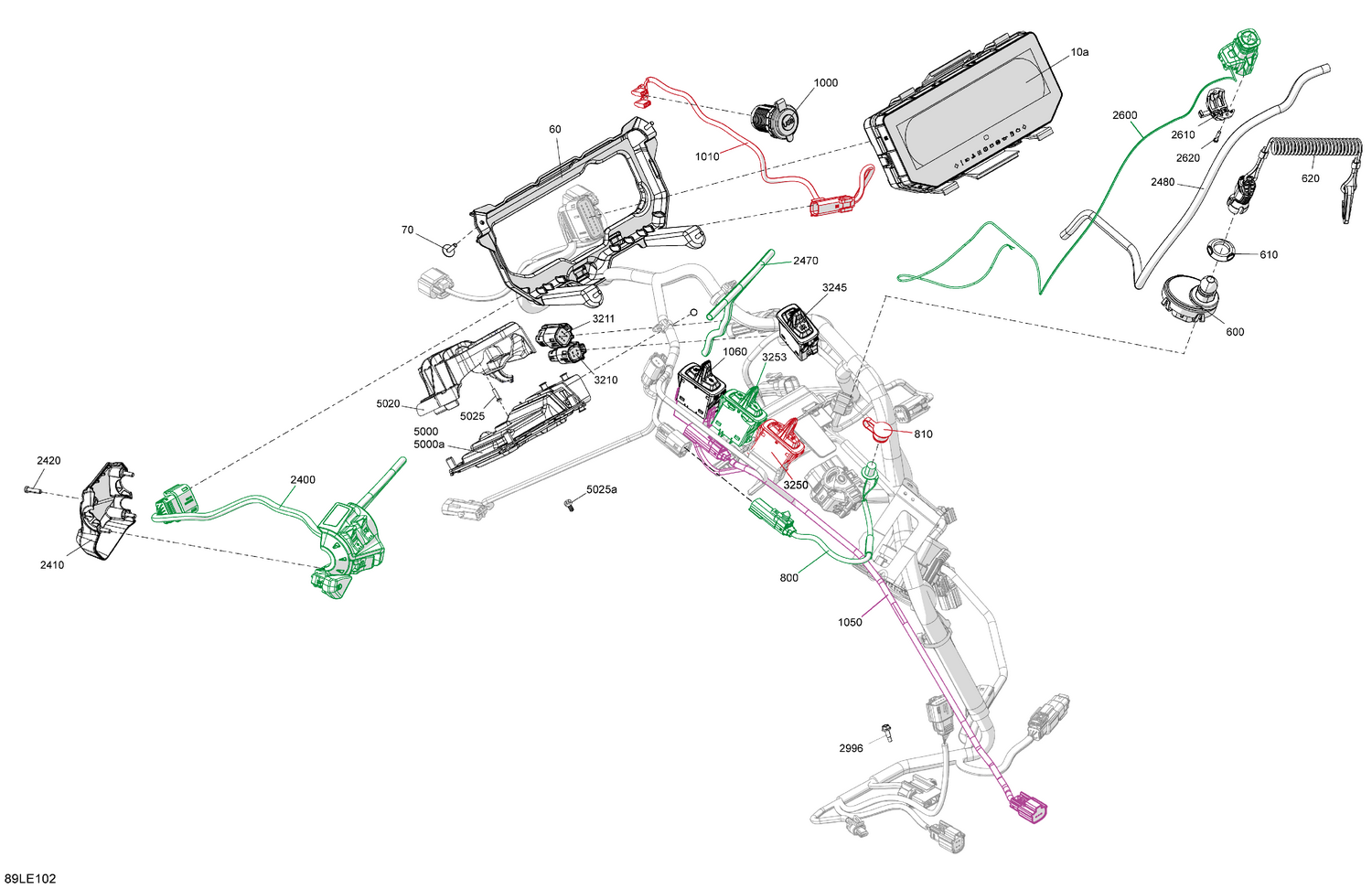

08- Electric - Upper Section
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 515179828 | Multifunction Full Size Mono Gauge |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 710008832 | Dess Can Terminal |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515179490 | Heated Seat Switch |
| 2400 | 515178969 | Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 2996 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3211 | 515178202 | Connector Coil |
| 3245 | 515178968 | Rocker Switch |
| 3250 | 515178501 | Rocket Switch |
| 3253 | 515178462 | Switch Rocker Hand Warmer |
| 5000a | 420464172 | ECM Module |
| 5020 | 512061397 | Module Support |
| 5025a | 710009084 | Screw |
