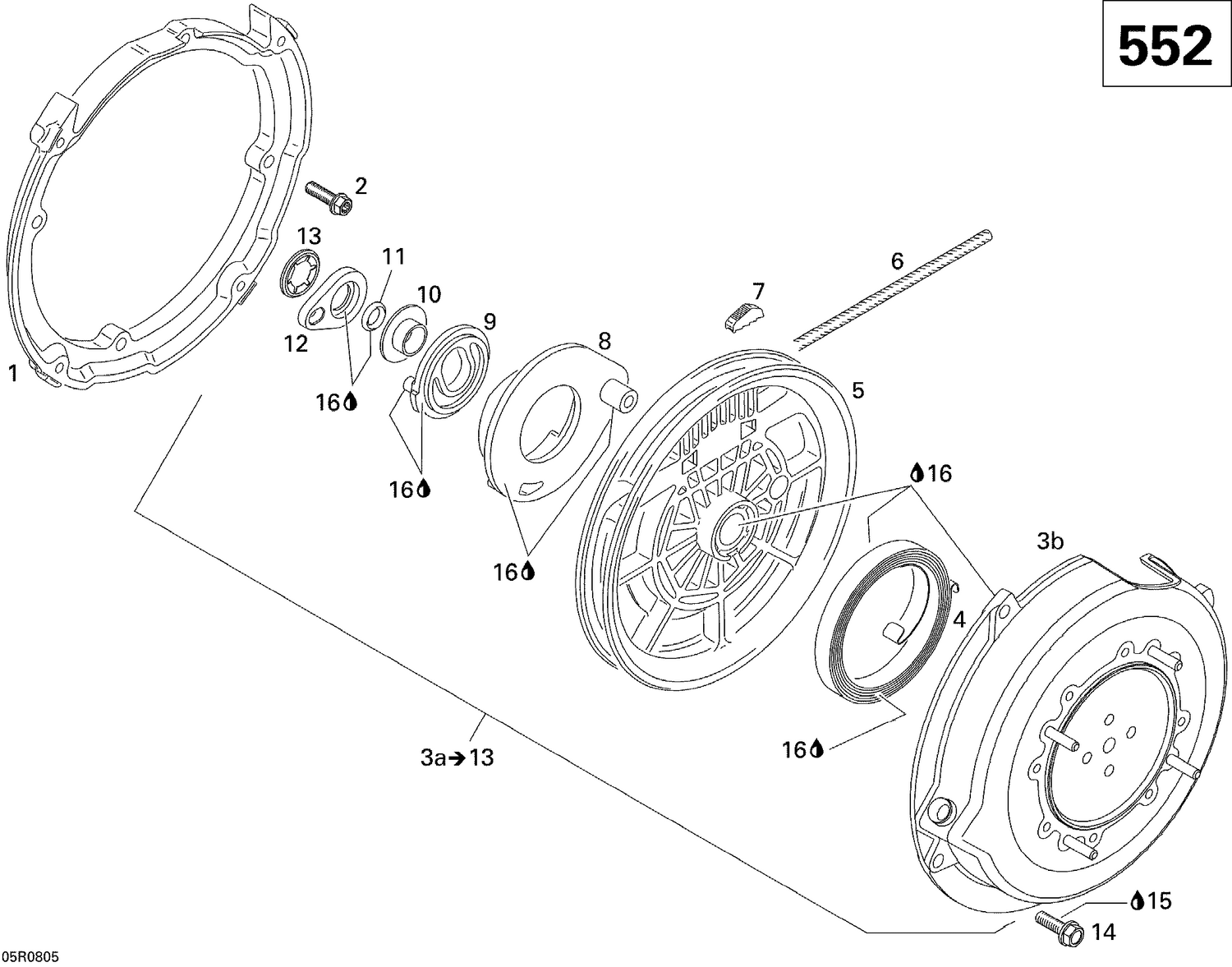

04- Rewind Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810955 | Flange Connector This part replaces 420810952. |
| 2 | 420440207 | Torx Flange Screw M6 X 20 This part replaces 420440202. |
| 3b | Not | Available As Spare Part - Starter Housing |
| 4 | 420939115 | Rewind Spring |
| 5 | 420852480 | Rope Sheave |
| 6 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420852070 | Key Clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852640 | Pawl Lock This part replaces 420852307. |
| 10 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 14 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 | 293800060 | Loctite 243, 10 ml |
