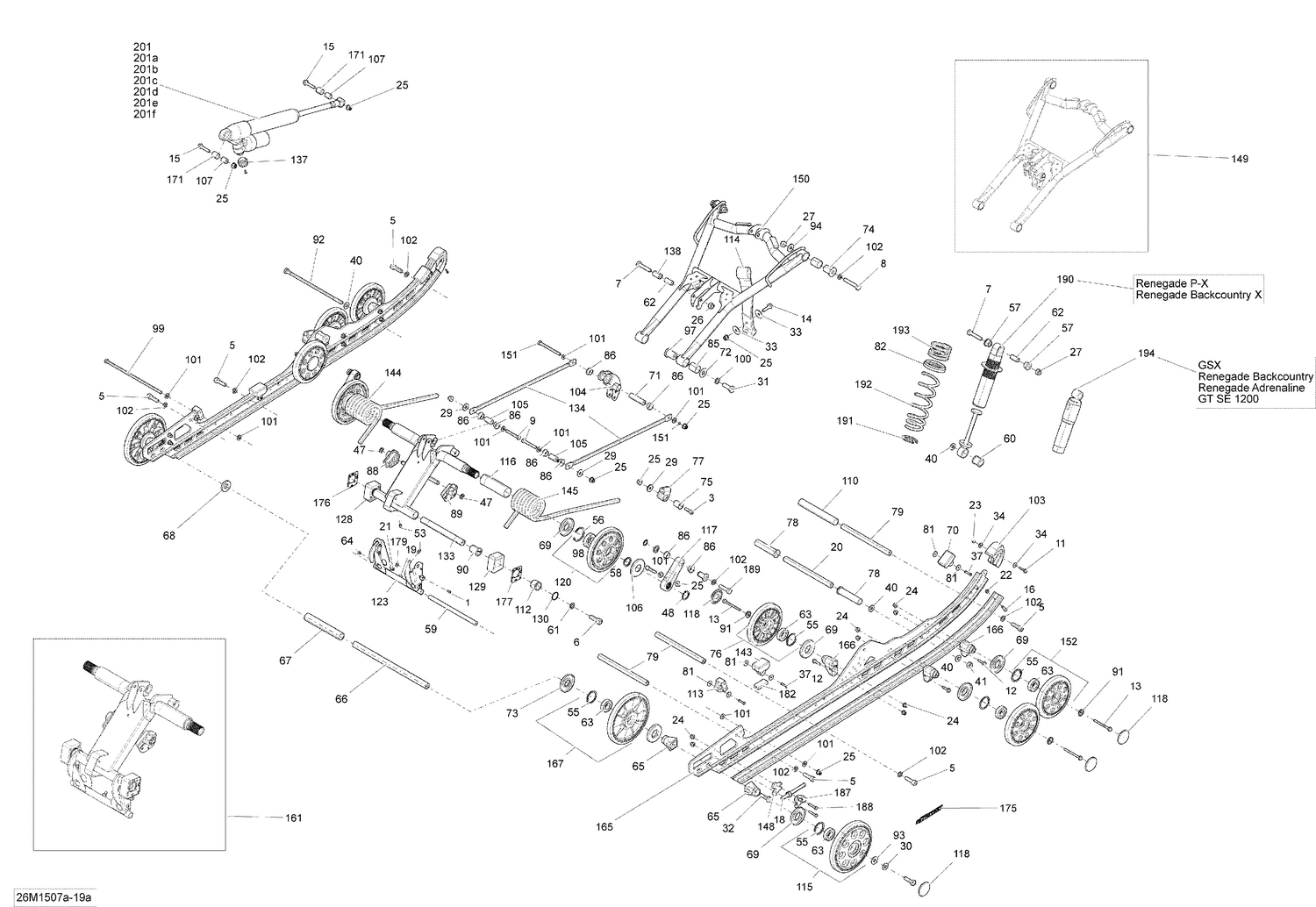

| Ref | Part Number | Description |
|---|
| 1 |
205041060 |
Socket Head Screw M4X 10 |
| 3 |
205082554 |
Socket Screw M8 X 25 |
| 5 |
205503554 |
Socket Head Screw M10 X 35 |
| 6 |
205523554 |
Socket Head Screw M12 X 35 |
| 7 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 8 |
207006056 |
Hex. Cap Screw M10 X 60 |
| 9 |
207085544 |
Hex. Screw M8 X 55 |
| 11 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 12 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 13 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 14 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 15 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 16 |
208562531 |
Phillips Screw M6 X 25 |
| 18 |
230100054 |
Hex Screw M10 x 100 |
| 19 |
232061404 |
Hexagonal Nut M6 |
| 20 |
503193435 |
Pivot Axle |
| 21 |
232551414 |
Elastic Stop Nut M5 |
| 22 |
232561434 |
Elastic Stop Nut M6 |
| 23 |
233251434 |
Flange Elastic Nut M5 |
| 24 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 25 |
233281466 |
Elastic Flange Nut M8 |
| 26 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 27 |
233601466 |
Elastic Locking Nut M10 |
| 29 |
234082410 |
Flat Washer 8 mm |
| 30 |
234201474 |
Conical Spring Washer 10 mm |
| 31 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 32 |
250000592 |
Hex Cap Screw Nylon M10 x 35 |
| 33 |
250200128 |
Flat Washer 8 mm |
| 34 |
250200140 |
Washer |
| 37 |
293150013 |
Pop Rivet 3/16" |
| 40 |
250200143 |
Flat Washer |
| 41 |
233201466 |
Flange Elastic Nut M10 |
| 47 |
293370013 |
E-Circlip |
| 48 |
293370080 |
Retaining Ring |
| 53 |
408200700 |
Grease Fitting |
| 55 |
415129371 |
Retaining Ring |
| 56 |
415129780 |
Retaining Ring |
| 57 |
503189117 |
Urethane Bushing |
| 58 |
503189146 |
Axle Spring |
| 59 |
503189156 |
Pivot Arm Axle |
| 60 |
503189271 |
Bushing |
| 61 |
503189276 |
Washer |
| 62 |
503189282 |
Bushing |
| 63 |
503190396 |
Ball Bearing |
| 64 |
390402200 |
Pop Rivet 3/16" |
| 65 |
503190428 |
Rear Wheel Spacer |
| 66 |
503190429 |
Rear Axle |
| 67 |
503196317 |
Spacer This part replaces 503190430. |
| 68 |
503190432 |
Washer |
| 69 |
503190434 |
Labyrinth Seal |
| 70 |
503190576 |
Rubber Stopper |
| 71 |
503190643 |
Axle Bar (Long) |
| 72 |
503190656 |
Washer |
| 73 |
503190682 |
Labyrinth Seal |
| 74 |
503190698 |
Axle |
| 75 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 76 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 77 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 78 |
503191259 |
Center Bushing |
| 79 |
503191260 |
Axle Strap |
| 81 |
503191273 |
Washer |
| 82 |
503191281 |
Spring Spacer |
| 83 |
503191306 |
Black, Slider Shoe 137'' |
| 85 |
503191554 |
Bushing |
| 86 |
503191555 |
Swivel Bushing |
| 88 |
503191565 |
LH Cam Adjuster |
| 89 |
503191566 |
RH Cam Adjuster |
| 90 |
503191640 |
Cushion |
| 91 |
503191820 |
Wheel Cup M6 |
| 92 |
503193227 |
Bolt M10 X 251MM |
| 93 |
503191910 |
Washer |
| 94 |
503191926 |
Washer |
| 97 |
503191966 |
Lower Axle |
| 98 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 99 |
503192440 |
Bolt M8 X 248mm |
| 100 |
503192491 |
Washer |
| 101 |
503192494 |
Washer |
| 102 |
503192496 |
Washer |
| 103 |
503196873 |
Rail Protector This part replaces 503192530. |
| 104 |
503192531 |
Rocker |
| 105 |
503192555 |
Axle Bar |
| 106 |
503192592 |
Labyrinth Ring |
| 107 |
503196509 |
Axle Shock Absorber This part replaces 503192606. |
| 110 |
503196943 |
Spacer This part replaces 503192678. |
| 112 |
503192749 |
Guide Block |
| 113 |
503192750 |
Rubber Stopper |
| 114 |
503192759 |
Stopper Strap |
| 115 |
503192766 |
Black, Wheel Ass'y 180 mm |
| 116 |
503192767 |
Bushing |
| 117 |
503195985 |
Link Ass'y This part replaces 503193069. |
| 118 |
503192771 |
Black, Wheel Cap |
| 120 |
503192808 |
Black Wheel Ass'y 155 mm |
| 123 |
503192823 |
Pivot Arm Ass'y |
| 128 |
503192918 |
LH Cam Block |
| 129 |
503192919 |
RH Cam Block |
| 130 |
503192921 |
O-Ring |
| 133 |
503192981 |
Lower Shaft |
| 134 |
503193005 |
Link Rod |
| 137 |
503193033 |
Shock Adjuster Knob |
| 138 |
503193037 |
Bushing |
| 143 |
503195523 |
Rubber Stopper Ass'y This part replaces 503193101. |
| 144 |
503192105 |
Black Lh Spring |
| 144 |
503193158 |
Black, LH Spring Square |
| 145 |
503192104 |
Black, RH Spring Square |
| 145 |
503193159 |
Black, RH Spring Square |
| 148 |
503193250 |
Spacer |
| 149 |
503194529 |
Front Arm Ass'y This part replaces 503193264. |
| 150 |
503194529 |
Front Arm Ass'y This part replaces 503193265. |
| 151 |
503193372 |
Screw M8 X 90 |
| 152 |
503193376 |
Black, Wheel Ass'y 147 mm |
| 161 |
503193617 |
Rear Arm Ass'y |
| 165 |
503193552 |
Black, Runner 137" |
| 166 |
503193894 |
Casted Support |
| 167 |
503194050 |
Black, Wheel Ass'y 180 mm |
| 171 |
505072663 |
Leg Cushion |
| 175 |
516004755 |
Runner Decal |
| 176 |
516004900 |
LH Block Sticker Decal |
| 177 |
516004901 |
RH Block Sticker Decal |
| 179 |
517225900 |
Flat Washer |
| 182 |
572084800 |
Reinforcement Stopper |
| 187 |
503192583 |
Tensioner |
| 188 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 189 |
207204056 |
Cap Screw Hex. M10 X 40 |
| 190 |
503193536 |
Central Shock |
| 191 |
503194270 |
Spring Stopper This part replaces 503192608. |
| 192 |
503193160 |
Deep Black, Spring (189mm) Long |
| 193 |
503193837 |
Black, Spring (51mm) Short |
| 194 |
503193283 |
Central Shock |
| 200 |
250000644 |
Allen Screw M3 X 0.5 X 10 |
| 201a |
415093804 |
O-Ring |
| 201b |
505070400 |
O-Ring |
| 201c |
505070399 |
Screw |
| 201d |
505070398 |
Air Valve |
| 201e |
415093806 |
Piston Ring |
