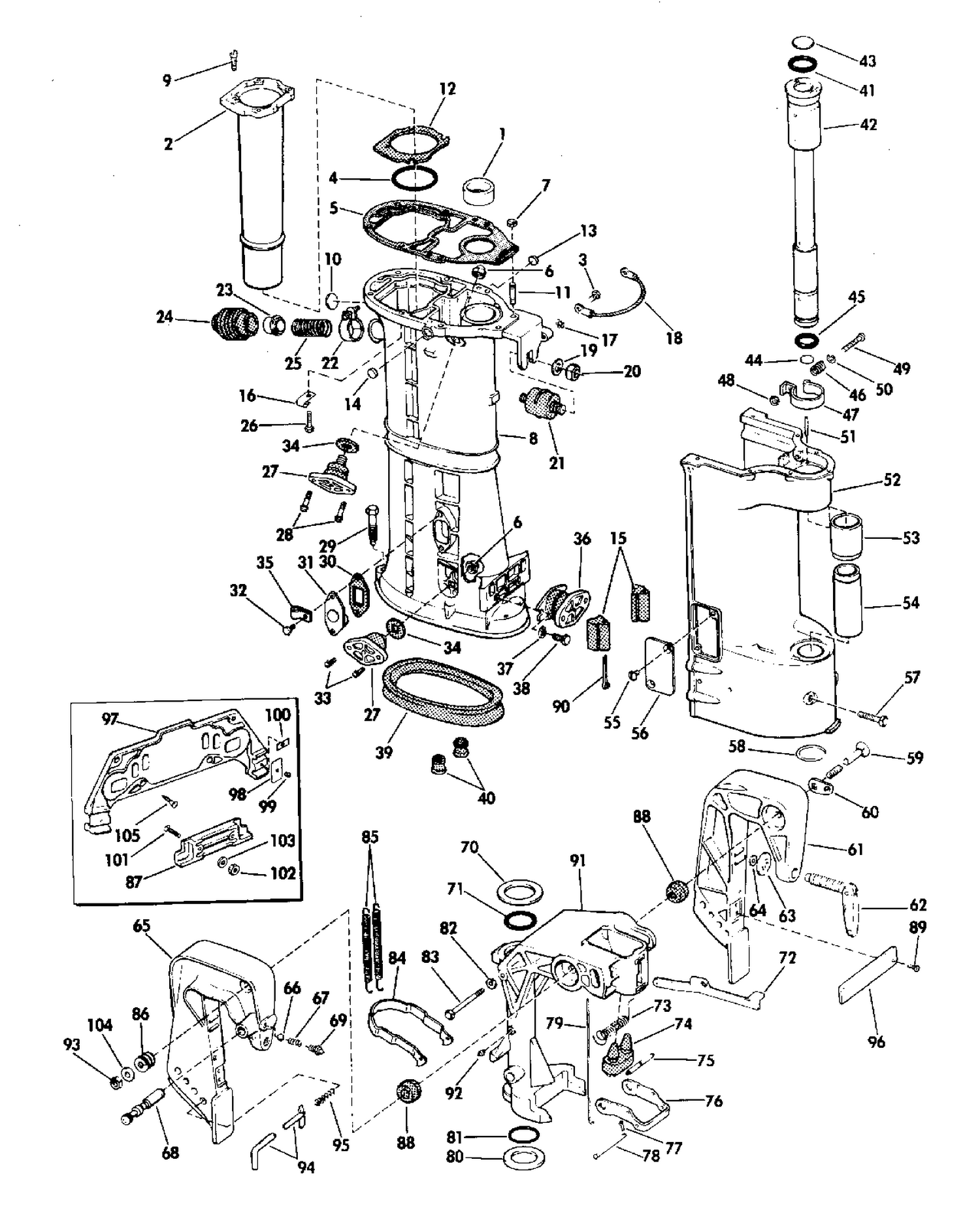

| Ref | Part Number | Description |
|---|
| 1 |
0310135 |
BUSHING, Pilot |
| 2 |
0305094 |
HOUSING, Exhaust inner |
| 3 |
0302468 |
SCREW, Ground lead |
| 4 |
0305281 |
SEAL, Inner exh tube, lower |
| 5 |
0310137 |
GASKET, Exhaust housing |
| 6 |
0303890 |
ACORN NUT, Lower side mount |
| 7 |
0306320 |
NUT |
| 8 |
0379386 |
EXHAUST HOUSING ASSY |
| 9 |
0309023 |
SCREW, Inner housing |
| 10 |
0307541 |
PLUG, Expansiion |
| 11 |
0304517 |
STUD, Cylinder |
| 12 |
0306242 |
GASKET, Inner housing |
| 13 |
0308427 |
PLUG, Port |
| 14 |
0308428 |
PLUG, Starboard |
| 15 |
0309325 |
STABILIZER |
| 16 |
0314254 |
CLAMP This part replaces 0310620. |
| 18 |
0376349 |
FIL, masse |
| 19 |
0127386 |
RONDELLE This part replaces 0303913. |
| 20 |
0363254 |
NUT, Stern bracket screw This part replaces 0303912. |
| 21 |
0377963 |
MOUNT, Rubber, upper front |
| 22 |
0377321 |
CLAMP, Exh. relief boot |
| 23 |
0305349 |
RETAINER , Exhaust relief spring |
| 24 |
0305384 |
BOOT, Exhaust relief |
| 25 |
0305385 |
SPRING, Exh. relief boot |
| 26 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 27 |
0379007 |
MOUNT, Rubber side |
| 28 |
0307027 |
SCREW, Lever to shaft |
| 29 |
0305282 |
BOLT, Bowl & suction piece |
| 30 |
0308344 |
GASKET, Cover plate |
| 31 |
0308346 |
PLATE, Cover |
| 32 |
0304027 |
VIS, arbre de commande de sens de marche |
| 33 |
0307057 |
SCREW, Lever to carburetor |
| 34 |
0304168 |
GASKET, Mount, lower side |
| 35 |
0307444 |
CLAMP |
| 36 |
0377964 |
MOUNT, Rubber, lower front |
| 37 |
0303886 |
LOCKWASHER |
| 39 |
0305672 |
RING, Seal, exhaust housing |
| 40 |
0304026 |
GROMMET |
| 41 |
0202591 |
O RING |
| 42 |
0377124 |
PIVOT SHAFT ASSY |
| 43 |
0200737 |
PLUG, Expansion |
| 44 |
0202103 |
PLUG, Expansion |
| 47 |
0377864 |
FRICTION BAND ASSY |
| 48 |
0307071 |
NUT, Friction band screw |
| 49 |
0307072 |
SCREW, Friction band |
| 50 |
0553575 |
RING , Retaining |
| 51 |
0305374 |
PIN, Friction brake |
| 52 |
0309326 |
COVER, Exhaust, front |
| 53 |
0305264 |
BUSHING, Pivot shaft, lower |
| 54 |
0305265 |
BUSHING, Pivot shaft, lower |
| 55 |
0303397 |
SCREW, Cover plate |
| 56 |
0305740 |
PLATE, Cover |
| 57 |
0307056 |
SCREW, Mount to cover |
| 58 |
0305307 |
RETAINER, Pivot shaft |
| 59 |
0305495 |
BOLT, Tilting |
| 60 |
0300364 |
LINK, Conical, tilt shaft |
| 61 |
0395431 |
STERN BRACKET ASSY., Port This part replaces 0383455. |
| 65 |
0383460 |
STERN BRACKET ASSY, Stbd. (includes items 80, 81 & 82) |
| 67 |
0307455 |
SPRING |
| 68 |
0307456 |
PIN |
| 69 |
0307457 |
FITTING, Lube |
| 70 |
0305202 |
RING, Thrust upper |
| 71 |
0305270 |
O RING |
| 72 |
0303863 |
ARM, Manual locking elver |
| 73 |
0306265 |
SPRING, Bolt to arm |
| 74 |
0305365 |
BUMBER, Tilting, swivel bracket |
| 75 |
0303956 |
CLAMP, Hose, small |
| 76 |
0305204 |
LINK, Reverse lock |
| 78 |
0303955 |
ROD, Reverse lock |
| 79 |
0303957 |
LINK, Reverse lock arm |
| 80 |
0305201 |
RING, Thrust , lower |
| 83 |
0313268 |
SCREW, Bracket to shaft |
| 84 |
0305269 |
LEVER, Locking, reverse |
| 85 |
0305353 |
SPRING, Reverse lock |
| 86 |
0302051 |
SPRING Tilting bolt |
| 87 |
0309193 |
CLAMP |
| 88 |
0302637 |
WASHER, Conical tilt bolt |
| 89 |
0310379 |
SCREW |
| 90 |
0309337 |
COTTER PIN, Stabilizer |
| 91 |
0379506 |
SWIVEL BRACKET ASSEMBLY |
| 93 |
0305496 |
LOCKNUT, Alternator to bracket |
| 94 |
0379485 |
ROD, Thrust |
| 95 |
0310377 |
SPRING, Thrust rid |
| 96 |
0310378 |
PLATE, Stern bracket |
| 97 |
0394219 |
KIT DE MONTAGE DE TABLEAU ARRIÈRE This part replaces 0378955. |
| 98 |
0305855 |
CLAMP |
| 99 |
0303274 |
SCREW |
| 100 |
0307066 |
SLEEVE, Shift cable |
| 101 |
0309190 |
SCREW |
| 104 |
0306433 |
WASHER |
