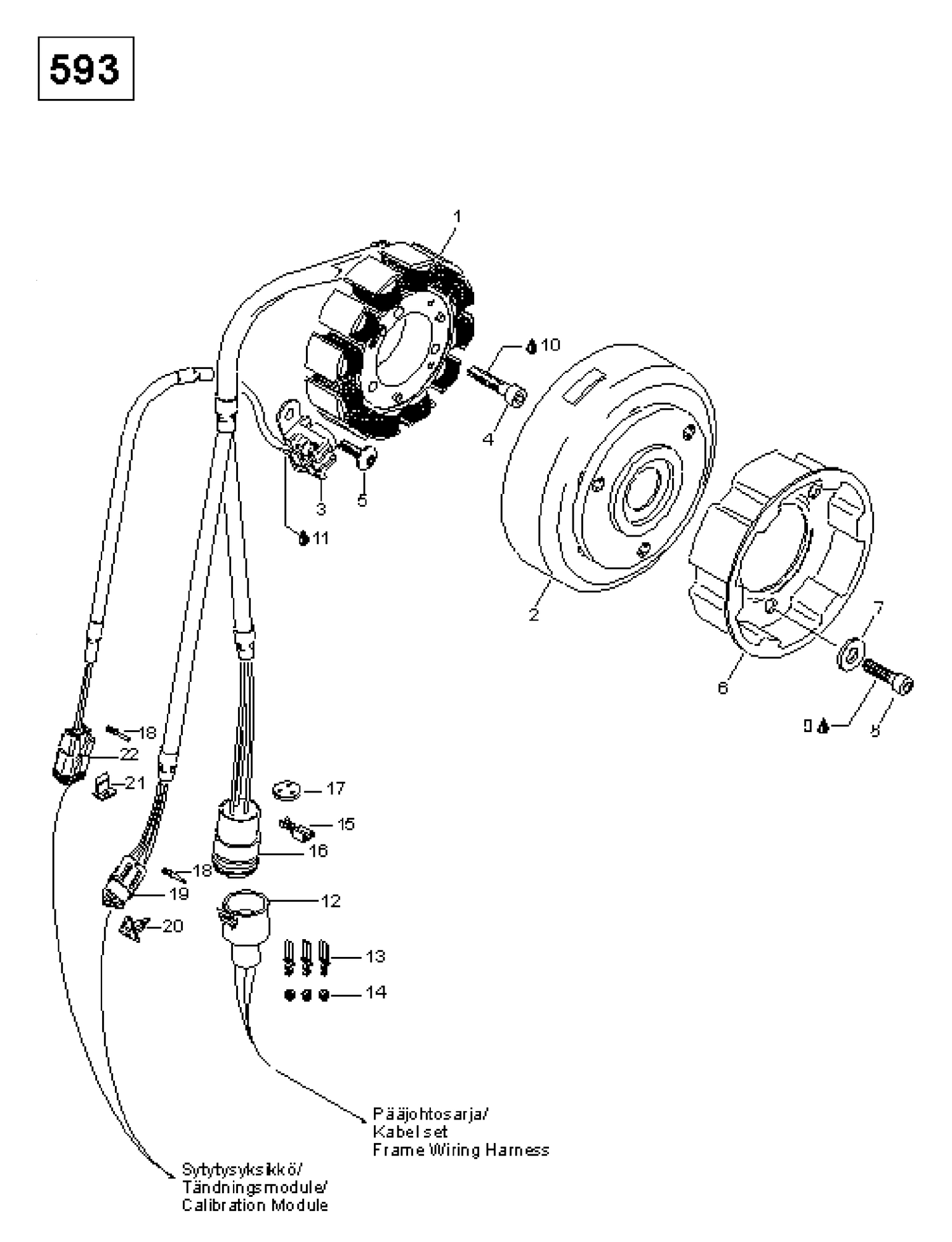

| Ref | Part Number | Description |
|---|
| 1 |
420888619 |
Stator assy |
| 2 |
420889344 |
Magneto flywheel |
| 3 |
420966836 |
Pick up assy |
| 4 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 5 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 6 |
420852590 |
Starter cup |
| 7 |
420827405 |
Lock washer |
| 8 |
420841520 |
Allenscrew M8 x 12 |
| 9 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 10 |
293800060 |
Loctite 243, 10 ml This part replaces 420897651. |
| 12 |
409207900 |
MALE HOUSING - Call your local BRP dealership |
| 13 |
409011100 |
MALE TERMINAL - Call your local BRP dealership |
| 14 |
409208500 |
SEAL - Call your local BRP dealership |
| 15 |
409011900 |
FEMALE TERMINAL - Call your local BRP dealership |
| 16 |
409208200 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 18 |
278000632 |
Female terminal |
| 19 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 20 |
409207200 |
Female lock (3 circuits) |
| 21 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
