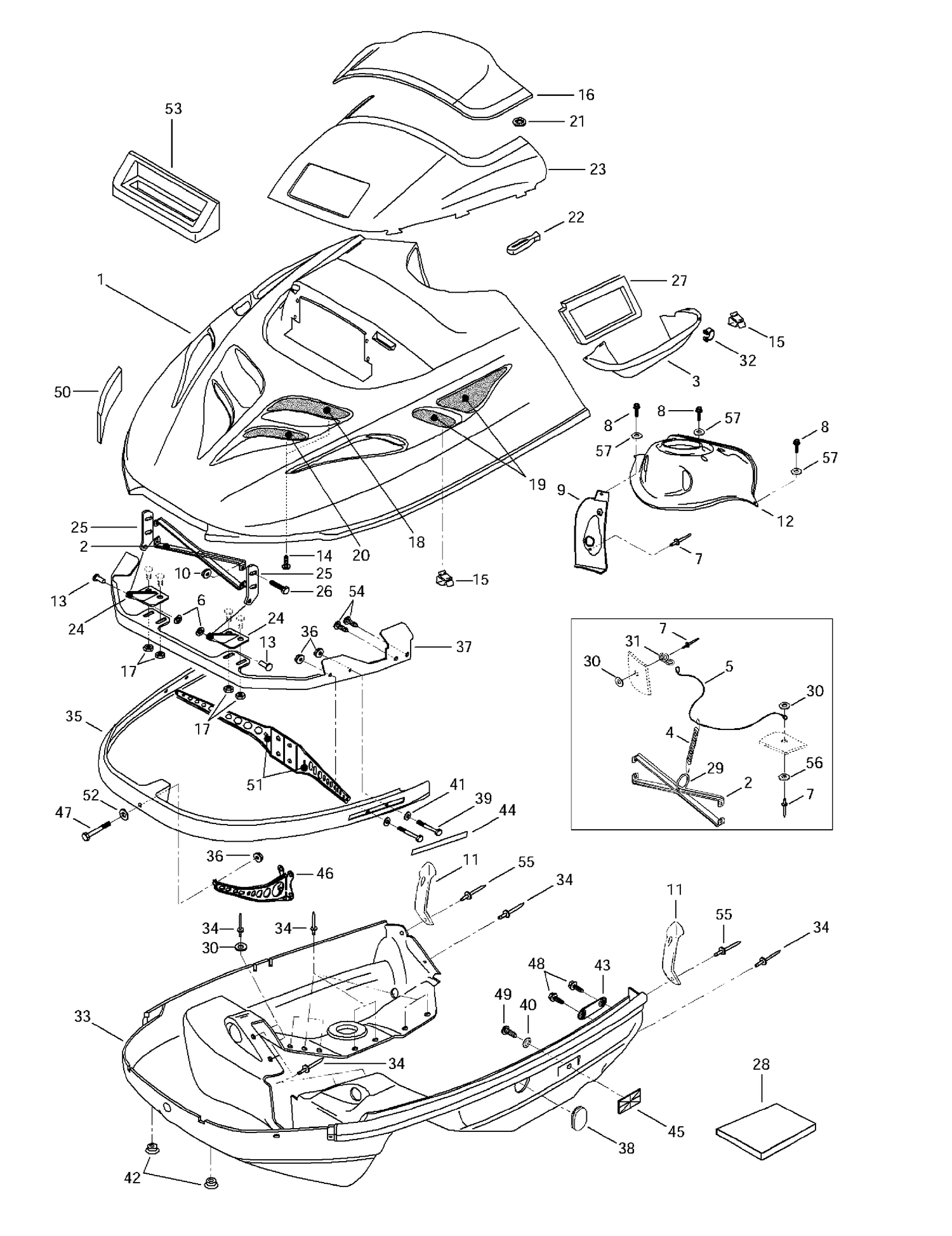

| Ref | Part Number | Description |
|---|
| 2 |
517278100 |
Hood Reinforcement |
| 4 |
415043300 |
Spring |
| 5 |
414212300 |
Cab Retainer Cable |
| 6 |
389804300 |
Push Nut |
| 7 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 8 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 9 |
572052101 |
Handle Dash |
| 10 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 11 |
570027100 |
Hood Latch |
| 12 |
572052702 |
Dash-Switch |
| 13 |
390906200 |
FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 14 |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 15 |
414227300 |
Clip |
| 16 |
414795900 |
WINDSHIELD LOW - Call your local BRP dealership |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 18 |
517277000 |
RH Upper Grill |
| 19 |
517280200 |
Side Grill (Black) |
| 20 |
517265800 |
RH Front Grill |
| 21 |
732610072 |
Push Nut |
| 22 |
570023800 |
Windshield Latch |
| 23 |
572084600 |
Windsheild Support |
| 24 |
517289900 |
Welded Lower Hinge |
| 25 |
517261100 |
UPPPER HINGE - Call your local BRP dealership |
| 26 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 28 |
414632400 |
Acoustic Foam |
| 29 |
415058300 |
RING - Call your local BRP dealership |
| 30 |
517124300 |
Washer |
| 31 |
517262800 |
Bracket |
| 33 |
502006583 |
Bottom Pan (Yellow) |
| 34 |
390906800 |
Pop Rivet 3/16" This part replaces 390909400. |
| 35 |
517265400 |
Front Bumper |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 37 |
517285800 |
Hinge Bracket |
| 38 |
570053700 |
Pan Bottom Cap (Yellow) |
| 39 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 40 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 41 |
224061121 |
Flat Washer |
| 42 |
572072100 |
CAP - Call your local BRP dealership |
| 43 |
517267100 |
Side Bracket |
| 44 |
861805523 |
Yellow, LH/RH Rear Reflector Kit This part replaces 418001009. |
| 45 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 46 |
517281100 |
Front Weld Support |
| 47 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 48 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 49 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 51 |
517287400 |
LH Support |
| 52 |
224061201 |
Flat Washer |
| 53 |
415044800 |
Sealing Foam |
| 54 |
Not |
Available As Spare Part - Hex Tapping Screw |
| 55 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 56 |
224081301 |
Flat Washer |
| 414631900 |
Acoustic |
Foam 414631900 |
| 414631900 |
Mousse |
Acoustique 414631900 |
| 517265900 |
Grille |
Avant GA 517265900 |
| 517265900 |
LH |
Front Grill 517265900 |
| 517277100 |
Grille |
Supérieure GA 517277100 |
| 517277100 |
LH |
Upper Grill 517277100 |
