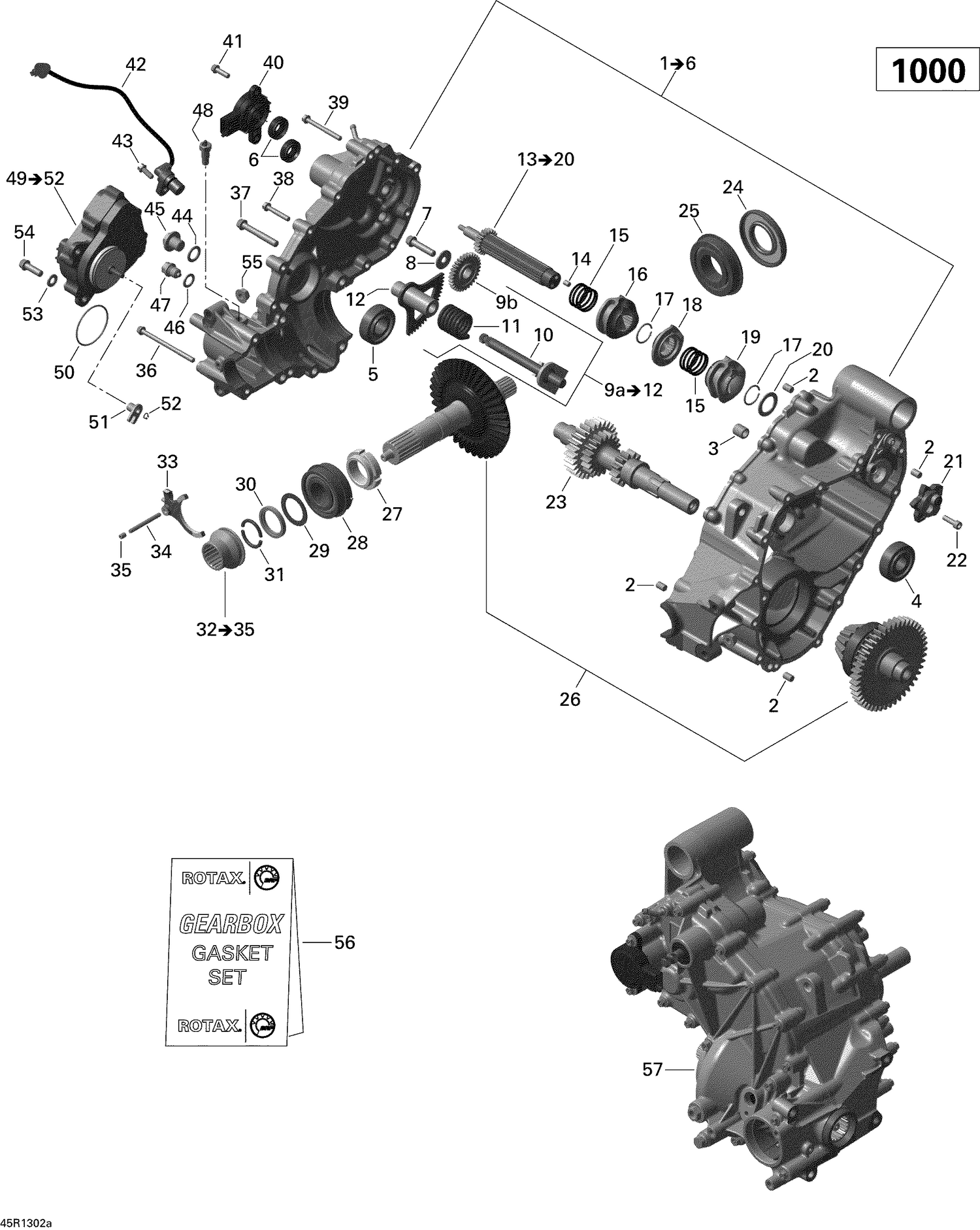

05- Gear Box 1

05- Gear Box 1

Parts (43)

RefPart NumberDescription
2 420632010 Center Pin 8 X 12
4 420932816 Ball Bearing This part replaces 420932815.
5 420932433 Ball Bearing 6204
6 420250450 Oil Seal
7 420641188 Torx Flange Screw M8 X 35
8 420227937 Plain Washer
9b Not Available As Spare Part - Intermediate Gear, 30 Teeth
10 Not Available As Spare Part - Shift Shaft
11 Not Available As Spare Part - Spring
12 Not Available As Spare Part - Tooth Segment
14 Not Available As Spare Part - Needle Pin
15 Not Available As Spare Part - Compression Spring
16 Not Available As Spare Part - Gear Shifting Gate
17 Not Available As Spare Part - Retaining Ring
18 Not Available As Spare Part - Disengagement Gate
19 Not Available As Spare Part - Gear Shifting Gate
20 Not Available As Spare Part - Thrust Washer
21 Not Available As Spare Part - Index Washer
22 420241939 Allen Screw M6 X 20 This part replaces 420241932.
24 420831955 Oil Seal
33 Not Available As Spare Part - Shifting Fork
34 Not Available As Spare Part - Needle Pin
35 420841771 SET SCREW M6 X 8 - Call your local BRP dealership
36 420641228 Torx Flange Screw M6 X 85
37 420641213 Torx Flange Screw M8 X 55
38 420440274 Torx Flange Screw M6 X 35 This part replaces 420440277.
39 420440702 Torx Flange Screw M6 X 55
40 420266168 Angle Rotation Sensor
41 420641048 Torx Flange Screw M6 X 16
42 420265727 Camshft Position Sensor Ass'y This part replaces 420265626.
43 420641048 Torx Flange Screw M6 X 16
44 420650350 O-Ring
45 420241662 Plug Screw M14 X 1.5 This part replaces 420241660.
46 420250640 Copper Washer
47 420241787 Magnetic Drain Plug M12 This part replaces 420241786.
48 420640192 Contact Screw M10 Ass'y With Cable
50 415129175 Shifting Fork
51 293370042 Circlip This part replaces 415129176.
52 293300117 O-Ring
53 420250315 Flat Washer 8.4 mm This part replaces 420250311.
54 420440372 Torx Flange Screw M8 X 25
55 420842619 Hex. Nut M8
56 420684149 Gasket Set This part replaces 420684139.
