| Ref | Part Number | Description |
|---|
| 1 |
0281146 |
MOTOR COVER ASSEMBLY |
| 2 |
0306407 |
LOCCKWASHER,Cover latch |
| 3 |
0207103 |
TILT HANDLE |
| 4 |
0312299 |
VIS, serre-câble |
| 5 |
0207616 |
HOOK, Front, cover |
| 6 |
0207800 |
SEAL, Cover |
| 7 |
0315705 |
RIVERT,Rear hook |
| 8 |
0208212 |
HOOK, Rear |
| 9 |
0312184 |
HANDLE, Latch |
| 11 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 12 |
0314615 |
ADJUSTING KNOB |
| 13 |
0315520 |
KNOB, Choke |
| 14 |
0320731 |
BUSHING, Choke knob |
| 15 |
0311439 |
GROMET, Knob slow speed |
| 18 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 19 |
0389496 |
MOTOR COVER, Lower |
| 20 |
0312979 |
EYELET |
| 21 |
0316195 |
SCREW |
| 22 |
0320023 |
PLATE, Safety warning |
| 23 |
0306487 |
SCREW |
| 24 |
0306407 |
LOCCKWASHER,Cover latch |
| 26 |
0309526 |
SCREW |
| 27 |
0306119 |
GROMMET |
| 28 |
0322340 |
HINGE PIN, Knob |
| 29 |
0321885 |
NIPPLE |
| 30 |
0553769 |
BUSHING |

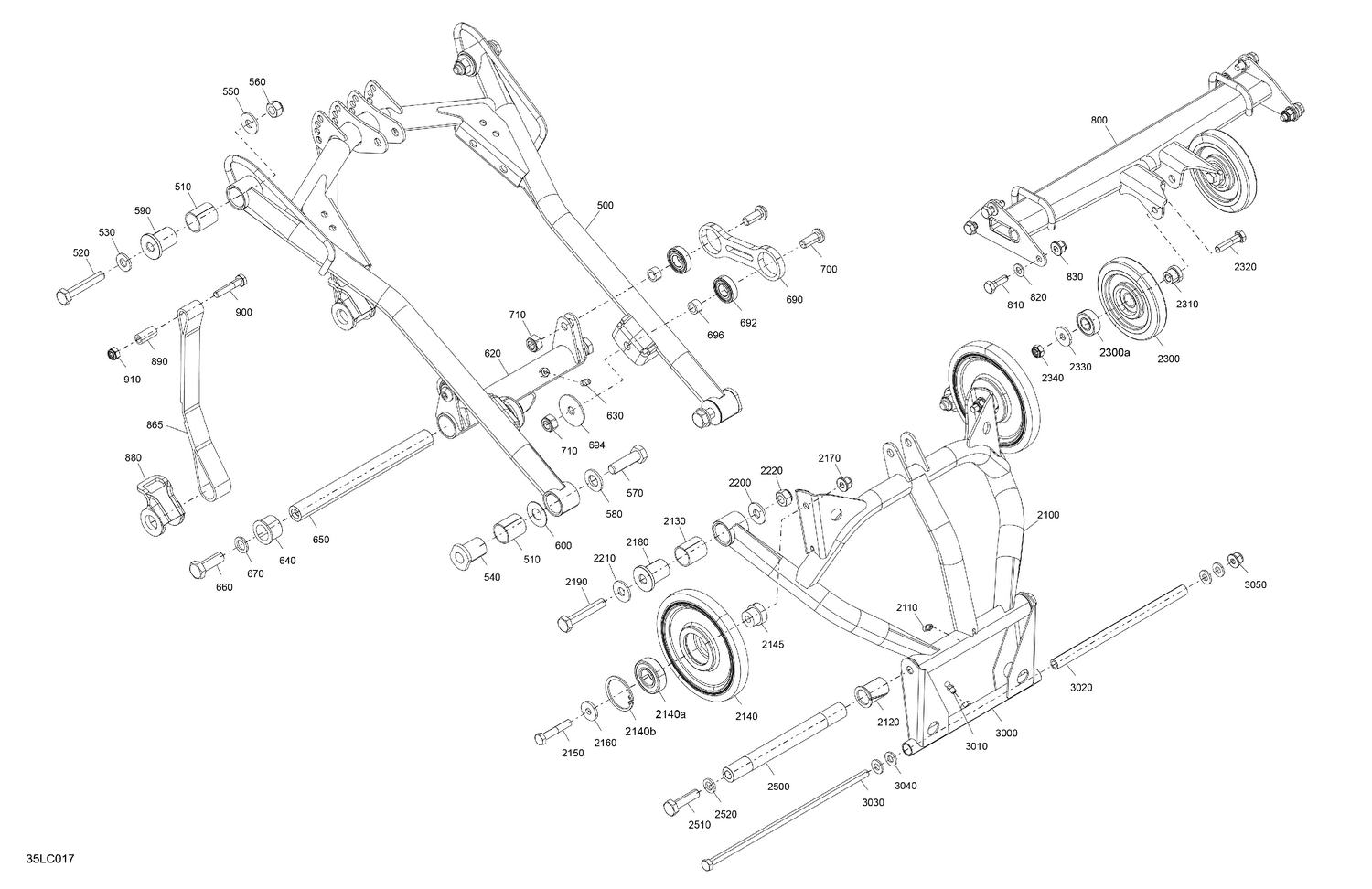

| 500 |
503195801 |
Front Arm |
| 510 |
503191554 |
Bushing |
| 520 |
250000696 |
Hexagonal Screw |
| 530 |
250200138 |
Washer |
| 540 |
503196093 |
Lower Axle Sleeve |
| 550 |
503191926 |
Washer |
| 560 |
233601466 |
Elastic Locking Nut M10 |
| 570 |
250001172 |
Hex. Cap Screw M14 X 50 |
| 580 |
234071410 |
Flat Washer 14 mm |
| 590 |
503194580 |
Upper Axle Sleeve |
| 600 |
503196112 |
Washer |
| 620 |
503195249 |
Front Swing |
| 630 |
408200700 |
Grease Fitting |
| 640 |
31027 |
Flange Bearing (Cushion) |
| 650 |
503195399 |
Lower Shaft |
| 660 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 670 |
503192491 |
Washer |
| 690 |
503195744 |
Rod Link |
| 692 |
503195805 |
Bearing |
| 694 |
503195846 |
Washer |
| 696 |
503195839 |
Sleeve |
| 700 |
205402546 |
Socket Screw BN.HD.ISO.7380 |
| 710 |
232500416 |
Elastic Stop Nut M10 |
| 800 |
503194090 |
Middle Beam |
| 810 |
250000556 |
Hex. Cap Screw M8 x 25 |
| 820 |
503192494 |
Washer |
| 830 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 865 |
503193780 |
Limiter Strap |
| 880 |
503195144 |
Limiter Strap Holder |
| 890 |
503195401 |
Sleeve |
| 900 |
207084044 |
Hex. Screw M8 X 40 |
| 910 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 2100 |
503194325 |
Rear Arm (Heavy Duty) |
| 2110 |
408200700 |
Grease Fitting |
| 2120 |
503191640 |
Cushion |
| 2130 |
503191554 |
Bushing |
| 2140a |
503190396 |
Ball Bearing |
| 2140b |
415129371 |
Retaining Ring |
| 2145 |
605454461 |
Sleeve |
| 2150 |
207084544 |
Hex. Screw M8 X 45 |
| 2160 |
20077 |
M8 Washer |
| 2170 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2180 |
503194580 |
Upper Axle Sleeve |
| 2190 |
250000696 |
Hexagonal Screw |
| 2200 |
503191926 |
Washer |
| 2210 |
503191926 |
Washer |
| 2220 |
233601466 |
Elastic Locking Nut M10 |
| 2300a |
405404600 |
Ball Bearing |
| 2310 |
503193330 |
Sleeve |
| 2320 |
207083544 |
Hex. Screw M8 X 35 |
| 2330 |
20077 |
M8 Washer |
| 2340 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 2500 |
503193638 |
Axe Inferieur *shaft-lower |
| 2510 |
207204044 |
Hex Cap Screw Din.931 S.grip |
| 2520 |
234001410 |
Flat Washer 10 mm |
| 3000 |
503194342 |
Rear Swing |
| 3010 |
408200700 |
Grease Fitting |
| 3020 |
503196358 |
Pivot Arm Axle |
| 3030 |
503194069 |
Bolt M8 |
| 3040 |
503192494 |
Washer |
| 0281147 |
0281147 |
DECAL SET |
