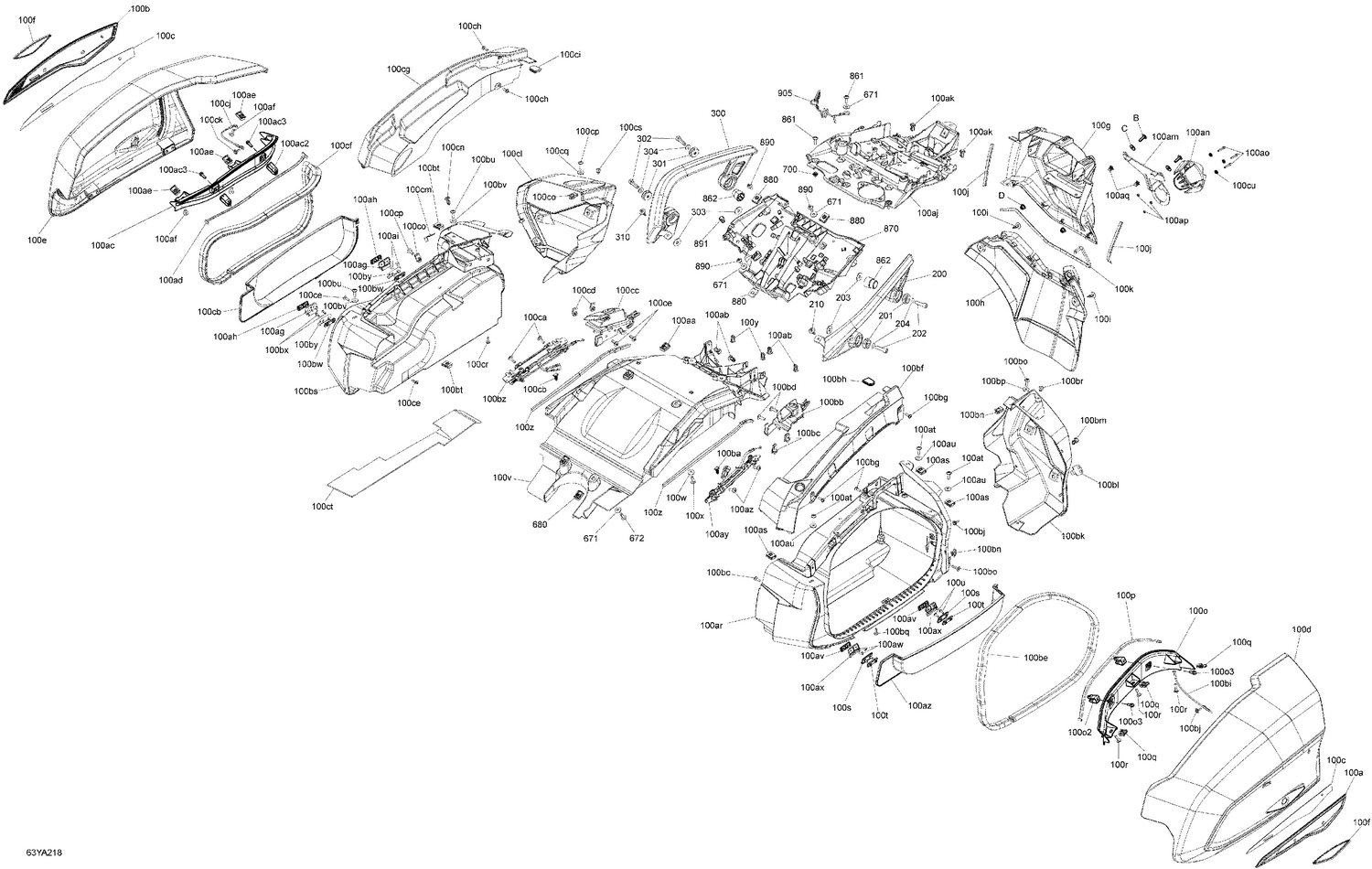

| Ref | Part Number | Description |
|---|
| B |
250000303 |
Torx Truss Screw M6 X 20 |
| C |
234062600 |
Flat Washer M6, Stainless |
| 100a |
708301859 |
LH Box Trim |
| 100aa |
250100208 |
Panel Nut M6 X 1.0 |
| 100ab |
293150230 |
Tuflok Plastic Rivet |
| 100ac2 |
708303255 |
Striker Cover |
| 100ac3 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 100ad |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 100ae |
250100208 |
Panel Nut M6 X 1.0 |
| 100af |
250000722 |
Torx Screw M6 X 20 |
| 100ag |
708302044 |
Female Hinge |
| 100ah |
708302046 |
Retaining Plate |
| 100ai |
250001131 |
Torx Truss PT K40 x 12 |
| 100aj |
708302571 |
Electronic Component Support This part replaces 708302143. |
| 100ak |
293150230 |
Tuflok Plastic Rivet |
| 100am |
719000069 |
Rear Fog Light Support |
| 100an |
719000067 |
Rear Fog Light Guard |
| 100ao |
205052588 |
Socket Head Screw M5 X 25 |
| 100ap |
232051600 |
Hex. Nut M5 |
| 100aq |
517302785 |
Edge Clip |
| 100ar |
708302404 |
LH Cargo |
| 100as |
250100208 |
Panel Nut M6 X 1.0 |
| 100at |
250000722 |
Torx Screw M6 X 20 |
| 100au |
234062670 |
Stainless Steel Flat Washer |
| 100av |
708302046 |
Retaining Plate |
| 100aw |
250001131 |
Torx Truss PT K40 x 12 |
| 100ax |
708302045 |
Male Hinge |
| 100ay |
708301794 |
LH Latch Assembly |
| 100az |
250000722 |
Torx Screw M6 X 20 |
| 100b |
708301860 |
RH Box Trim |
| 100ba |
710002033 |
Connector Holder |
| 100bb |
708301222 |
LH Control |
| 100bc |
250100198 |
Panel Nut M6 X 1.0 |
| 100bd |
250000722 |
Torx Screw M6 X 20 |
| 100be |
293250420 |
Molded Weather Strip |
| 100bf |
708302401 |
LH Cargo Fairing |
| 100bg |
250000720 |
Torx Screw K50 X 16 |
| 100bh |
708301805 |
Antena Cap |
| 100bi |
708300385 |
Retainer Cable |
| 100bj |
250000725 |
Screw M4 X 16 |
| 100bk |
708302283 |
LH Light Support |
| 100bl |
708302284 |
Brace |
| 100bm |
293150230 |
Tuflok Plastic Rivet |
| 100bn |
250100198 |
Panel Nut M6 X 1.0 |
| 100bo |
250000722 |
Torx Screw M6 X 20 |
| 100bp |
234062670 |
Stainless Steel Flat Washer |
| 100bq |
250000720 |
Torx Screw K50 X 16 |
| 100br |
293830005 |
Rubber Bumper |
| 100bs |
708302405 |
RH Cargo |
| 100bt |
250100208 |
Panel Nut M6 X 1.0 |
| 100bu |
250000722 |
Torx Screw M6 X 20 |
| 100bv |
234062670 |
Stainless Steel Flat Washer |
| 100bw |
708302046 |
Retaining Plate |
| 100bx |
250001131 |
Torx Truss PT K40 x 12 |
| 100by |
708302045 |
Male Hinge |
| 100bz |
708301795 |
RH Latch Assembly |
| 100c |
704905469 |
Trim Box Double Face Tape |
| 100ca |
250000722 |
Torx Screw M6 X 20 |
| 100cb |
710002033 |
Connector Holder |
| 100cc |
708301697 |
RH Control |
| 100cd |
250100198 |
Panel Nut M6 X 1.0 |
| 100ce |
250000722 |
Torx Screw M6 X 20 |
| 100cf |
293250420 |
Molded Weather Strip |
| 100cg |
708302402 |
RH Cargo Fairing |
| 100ch |
250000720 |
Torx Screw K50 X 16 |
| 100ci |
708301805 |
Antena Cap |
| 100cj |
708300385 |
Retainer Cable |
| 100ck |
250000725 |
Screw M4 X 16 |
| 100cl |
708302285 |
RH Light Support |
| 100cm |
708302284 |
Brace |
| 100cn |
293150230 |
Tuflok Plastic Rivet |
| 100co |
250100198 |
Panel Nut M6 X 1.0 |
| 100cp |
250000722 |
Torx Screw M6 X 20 |
| 100cq |
234062670 |
Stainless Steel Flat Washer |
| 100cr |
250000720 |
Torx Screw K50 X 16 |
| 100cs |
293830005 |
Rubber Bumper |
| 100ct |
705009908 |
Heat Shield |
| 100cu |
234051670 |
Flat Washer M5 |
| 100d |
708301268 |
Steel Black, LH Trunck Cover |
| 100e |
708301269 |
Steel Black, RH Trunk Cover |
| 100f |
705002423 |
Amber, Lateral Reflector |
| 100g |
708301584 |
Rear Fender |
| 100h |
708301747 |
Rear Fender Extention |
| 100i |
414745900 |
Tuflock Phillips Plastic Screw |
| 100j |
293250385 |
Neoprene Seal, 150 MM |
| 100k |
219704373 |
Seal 1000Mm Long |
| 100o2 |
708303255 |
Striker Cover |
| 100o3 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 100p |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 100q |
250100208 |
Panel Nut M6 X 1.0 |
| 100r |
250000722 |
Torx Screw M6 X 20 |
| 100s |
708302044 |
Female Hinge |
| 100t |
708302046 |
Retaining Plate |
| 100u |
250001131 |
Torx Truss PT K40 x 12 |
| 100v |
708301609 |
Under Tail |
| 100w |
234062670 |
Stainless Steel Flat Washer |
| 100x |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100y |
293150230 |
Tuflok Plastic Rivet |
| 100z |
293250385 |
Neoprene Seal, 150 MM |
| 201 |
708302461 |
Bushing |
| 202 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 203 |
234082410 |
Flat Washer 8 mm |
| 204 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 301 |
708302461 |
Bushing |
| 302 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 303 |
234082410 |
Flat Washer 8 mm |
| 304 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 310 |
414745900 |
Tuflock Phillips Plastic Screw |
| 671 |
234062670 |
Stainless Steel Flat Washer |
| 672 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 680 |
250100208 |
Panel Nut M6 X 1.0 |
| 700 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 861 |
250000722 |
Torx Screw M6 X 20 |
| 862 |
708303508 |
Anchorage Socket |
| 870 |
708301698 |
Cargo Rear Support |
| 880 |
250100208 |
Panel Nut M6 X 1.0 |
| 890 |
250000881 |
Torx Truss M8 X 16 |
| 891 |
293150230 |
Tuflok Plastic Rivet |
