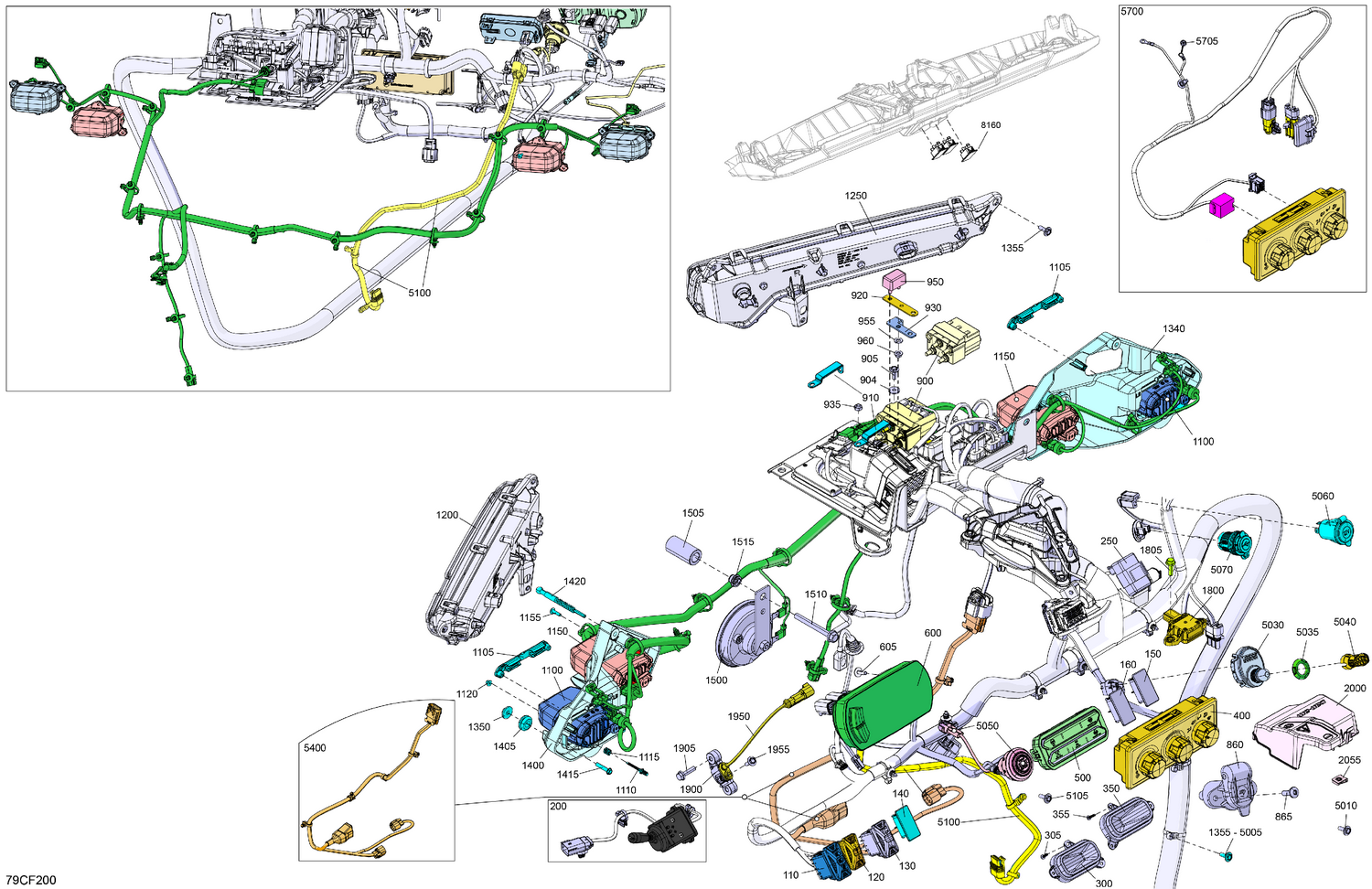

08- Electric - Front Section
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 710008380 | Switch Hazard Lights |
| 120 | 710007665 | Winch Switch |
| 130 | 710007173 | Plug Carling |
| 140 | 710007173 | Plug Carling |
| 150 | 710007173 | Plug Carling |
| 160 | 710008382 | Switch Hdc |
| 200 | 710010627 | Arm_Turn Signal |
| 250 | 710003239 | Flasher Unit |
| 300 | 709402625 | LH Steering Wheel Trim |
| 305 | 250001234 | Screw Plastite Torx K30 X 12 |
| 350 | 709402628 | RH Steering Wheel Trim |
| 355 | 250001234 | Screw Plastite Torx K30 X 12 |
| 400 | 710010453 | Temperature Module |
| 500 | 710010535 | Multifunction Switch |
| 600 | 710008298 | Multifunction Compact Gauge |
| 605 | 250000959 | Screw PT Type K-50 X 16 |
| 860 | 710010577 | Inlet 3 Pins |
| 865 | 250000720 | Torx Screw K50 X 16 |
| 900 | 710006991 | Solenoid |
| 904 | 250200025 | Washer M5 |
| 905 | 250000959 | Screw PT Type K-50 X 16 |
| 910 | 710004772 | Power Bar |
| 920 | 710006401 | Copper Busbar |
| 930 | 710004873 | Power Bar |
| 935 | 232561200 | Brass Elastic Stop Nut M6 |
| 950 | 710007039 | Circuit Breaker 50 Amp |
| 955 | 234161601 | Lock Washer Helical M6 |
| 960 | 250100071 | Hex. Flange Nut M5 |
| 1100 | 710008088 | Low Beam Light |
| 1105 | 517309049 | Support Pivot |
| 1110 | 517309133 | Threaded Rod |
| 1115 | 517309058 | Compression Spring |
| 1120 | 517309134 | Specialized Nut |
| 1150 | 710006910 | HIgh Beam Light |
| 1155 | 250000759 | Torx Truss Pt K40 X 16 |
| 1200 | 710009123 | Auxiliary Light Led Flasher Lamp |
| 1250 | 710009124 | Auxiliary LED Light Flasher Lamp |
| 1340 | 710009206 | RH Headlight Support |
| 1350 | 710004749 | Shoulder Bushing |
| 1355 | 250000959 | Screw PT Type K-50 X 16 |
| 1400 | 710009482 | LH Headlight Support |
| 1405 | 293720130 | Overmolded Grommet |
| 1415 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 1420 | 710009786 | Screw Lux |
| 1500 | 710004791 | Horn |
| 1505 | 705207818 | Spacer |
| 1510 | 207665544 | Hex Flange Screw M6 X 55 |
| 1515 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1800 | 710005658 | Yaw Rate Sensor |
| 1805 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 1900 | 710010499 | Support Abs Sensor |
| 1905 | 207662556 | Hex. Flange Screw M6 X 25 |
| 1950 | 710011077 | Speed Sensor |
| 1955 | 250000959 | Screw PT Type K-50 X 16 |
| 2000 | 710009444 | Junction Block Cover |
| 2055 | 250100208 | Panel Nut M6 X 1.0 |
| 5005 | 250000712 | Torx Screw M6 X 20 |
| 5010 | 250000959 | Screw PT Type K-50 X 16 |
| 5030 | 710008832 | Terminal DESS CAN |
| 5035 | 278004274 | Specialized Nut |
| 5040 | 710004964 | Grey Key RFID |
| 5050 | 710005213 | Start-Stop Button |
| 5070 | 710008594 | USB Connector |
| 5100 | 710009717 | Trottle Pedal Harness |
| 5105 | 250000959 | Screw PT Type K-50 X 16 |
| 5400 | 710011078 | Front Differential ABS Harness |
| 5700 | 710009706 | Heater Unit Wiring Harness |
| 5705 | 232561200 | Brass Elastic Stop Nut M6 |
