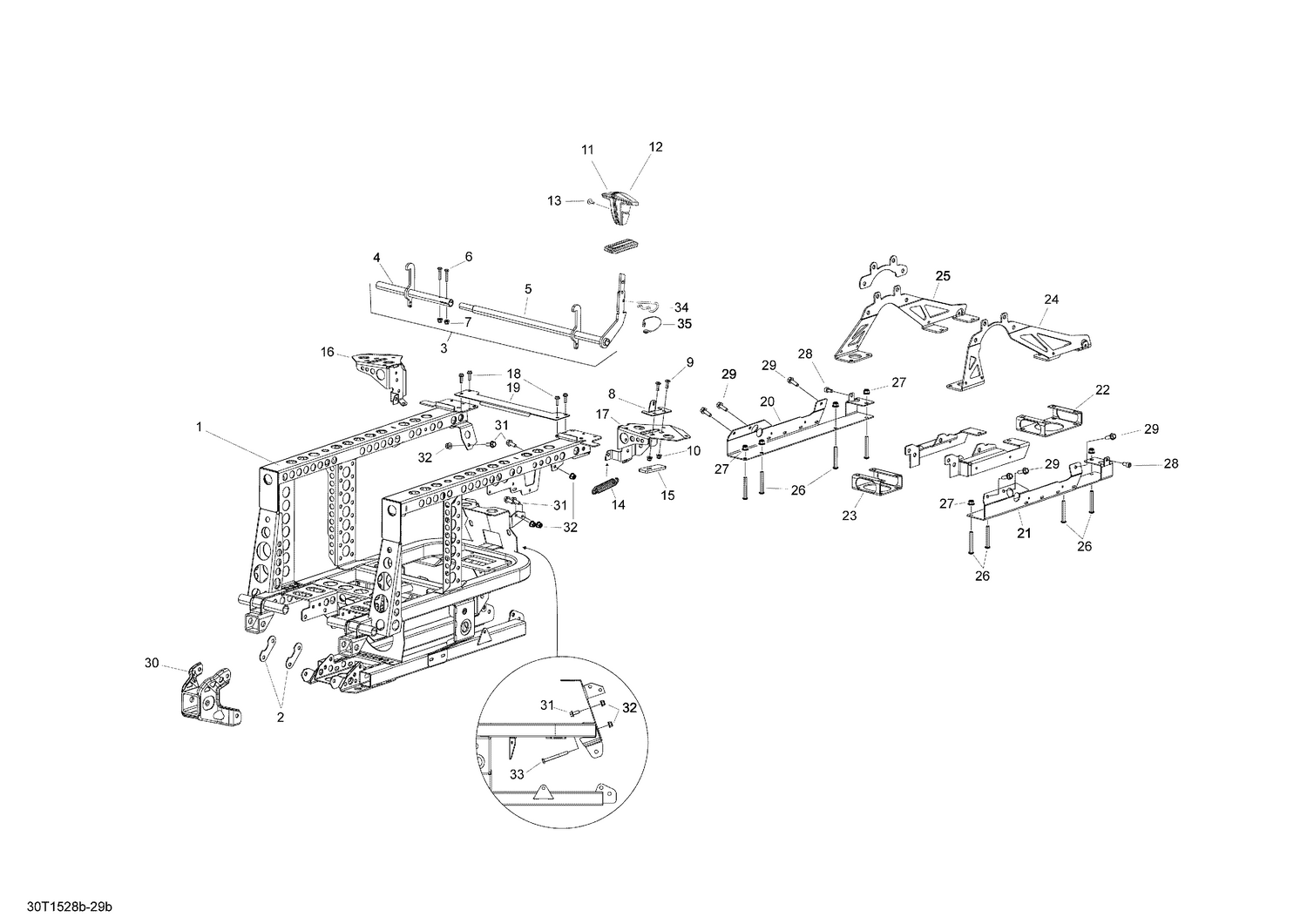

09- Frame _30T1528b
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705204221 | Rear Frame Painted |
| 2 | 705203564 | Support Plate |
| 3 | Not | Available As Spare Part - Tilt Mechanism |
| 4 | 705203669 | LH TUBE WELDED - Call your local BRP dealership |
| 5 | 705203670 | RH Tube |
| 6 | 207063044 | Hex. Screw M6 X 30 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 705203834 | Lever Support |
| 9 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 705008420 | Left Half Knob |
| 12 | 705008048 | Right Half Knob |
| 13 | Not | Available As Spare Part - SCREW |
| 14 | 415107100 | Spring |
| 15 | 708301280 | Rubber Collar |
| 16 | 705203611 | LH Rear Fender Support |
| 17 | 705203612 | RH Rear Fender Support |
| 18 | 250000331 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 19 | 705203954 | FILLER PLATE - Call your local BRP dealership |
| 20 | 705203724 | LH Lower Beam Reinforcement |
| 21 | 705203725 | RH Lower Beam Reinforcement |
| 22 | 705203726 | Front Support Plate |
| 23 | 705203727 | Rear Support Plate |
| 24 | 705203728 | LH Differential Support Reinforcement |
| 25 | 705203729 | RH Differential Support Reinforcement |
| 26 | 250000383 | Torx Screw M8 X 60, Scotch Grip |
| 27 | 233281416 | Hex. Elastic Flange Nut M8 |
| 28 | 250000678 | Forming Screw HD.DIN.7500E |
| 29 | 250000376 | Hex Forming Screw DIN.7500D |
| 30 | 715006155 | Trailer Hitch This part replaces 715002812. |
| 31 | 207682046 | Hex. Flange Screw M8 X 20 |
| 32 | 233281416 | Hex. Elastic Flange Nut M8 |
| 33 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 34 | 505073670 | Cotter Spring |
