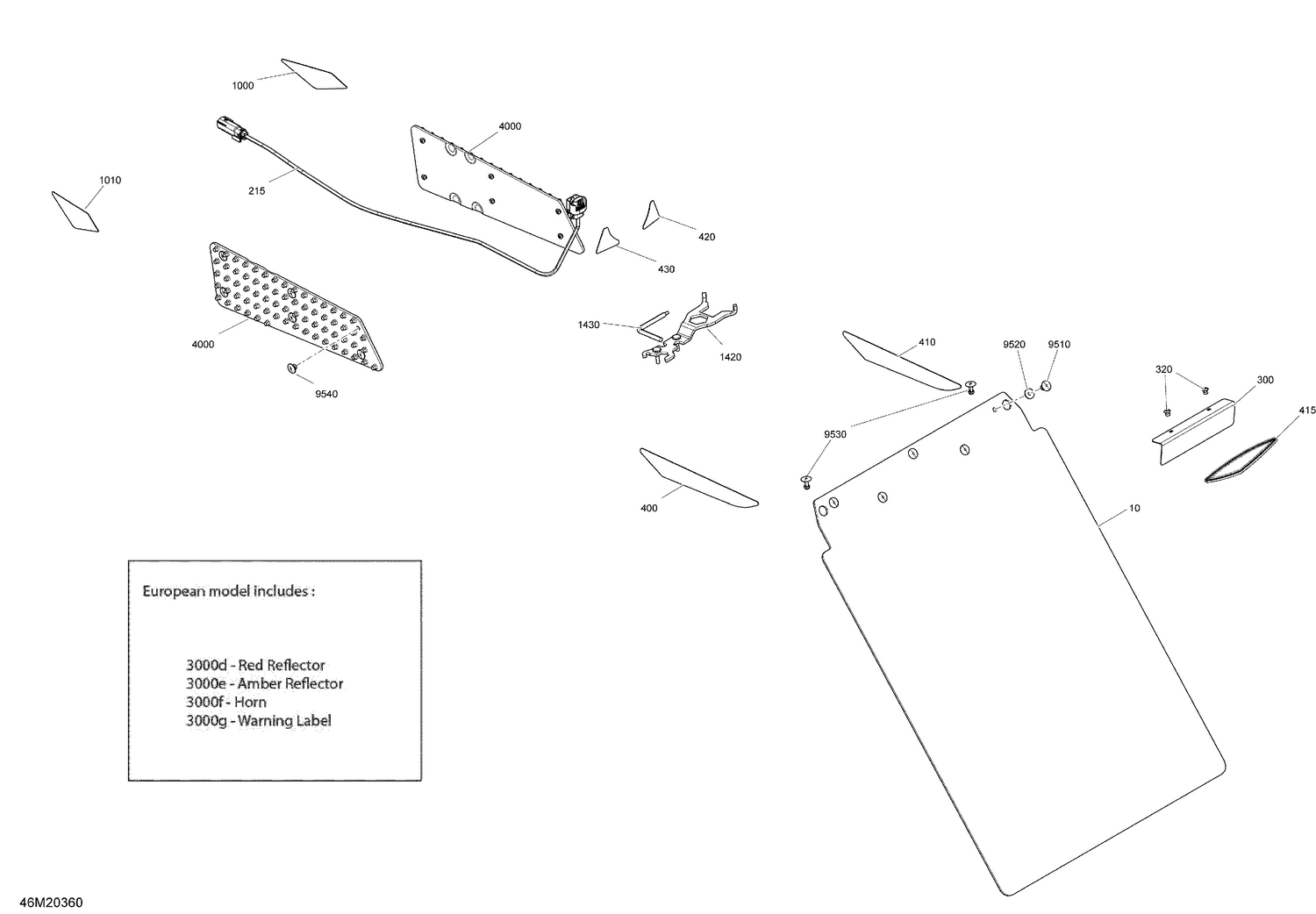

10- Utilities
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002213 | Snow Flap |
| 215 | 515178825 | Wiring Harness |
| 300 | 520002339 | Support |
| 320 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 415 | 705003412 | Red, Lateral Reflector |
| 420 | 520002289 | Reflector Red Rear Right |
| 430 | 520002288 | Reflector Red Rear Left |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1420 | 520001499 | Wrench |
| 1430 | 417127579 | Belt Installation Tool |
| 3000d | 705012439 | Red Reflector |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 4000 | 860200164 | Grip Plate Kit |
| 9510 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9520 | 517124300 | Washer |
| 9530 | 293150100 | Pop Rivet 3/16" |
