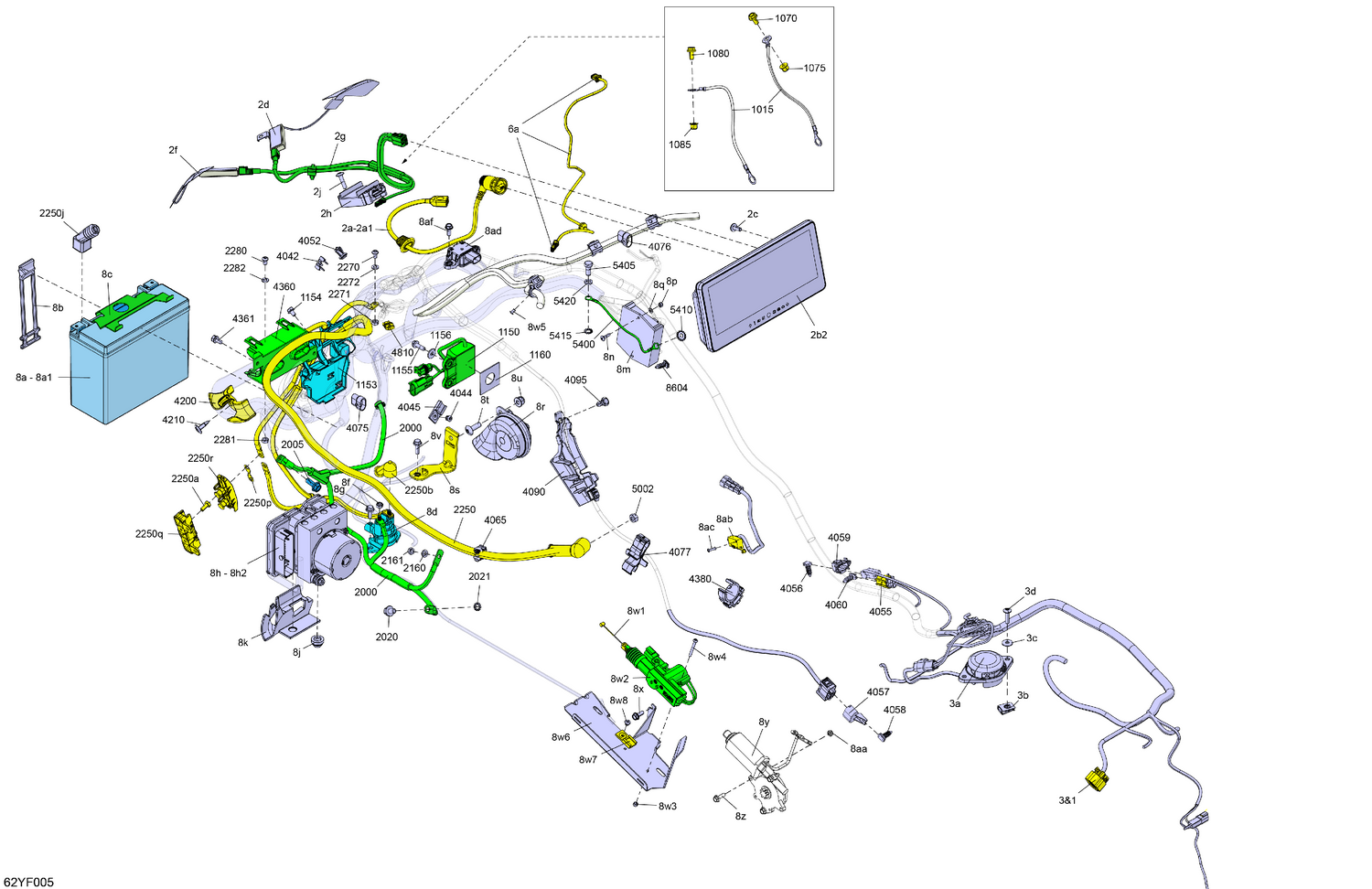

08- Electric - System
Parts (104)
| Ref | Part Number | Description |
|---|---|---|
| 2a1 | 515179431 | USB wiring Harness Ass'y |
| 2b2 | 710010376 | Multifunction Gauge 10 |
| 2c | 250000717 | Torx Head Screw M6 X 16 |
| 2d | 710010625 | Fm2 Antenna |
| 2f | 710010625 | Fm2 Antenna |
| 2g | 710010431 | Phantom Box |
| 2h | 278004172 | External Module GPS |
| 2j | 250000758 | Torx Screw M6 X 25 |
| 3a | 710008103 | Passenger Detection Switch |
| 3b | 250100208 | Panel Nut M6 X 1.0 |
| 3c | 234062670 | Stainless Steel Flat Washer |
| 3d | 250000807 | Torx Truss Screw M6 X 25 |
| 6a | 710009557 | Wiring Harness |
| 8a1 | 715500541 | Battery Bolt Kit |
| 8aa | 232561434 | Elastic Stop Nut M6 |
| 8ab | 710001379 | Brake Pressure Switch Ass'y |
| 8ac | 293150150 | Pop Rivet |
| 8ad | 710005658 | Yaw Rate Sensor |
| 8af | 210261650 | Hex. Flange Screw M6 X 16 |
| 8b | 520000528 | Latch |
| 8c | 710010843 | Battery Support |
| 8d | 278003012 | Starter Relay |
| 8f | 232561600 | Hex. Elastic Stop Nut M6 |
| 8g | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 8h2 | 710003279 | Shock Damper |
| 8j | 710009090 | Vibration Damper |
| 8k | 710003996 | VCM Harness Protector |
| 8m | 710008602 | PBM Module Ass'y |
| 8n | 250000750 | Torx Screw M4 X 16 |
| 8p | 232541484 | Elastic Stop Nut M4 |
| 8q | 234041480 | Flat Washer 4 mm |
| 8r | 710004940 | Horn |
| 8s | 710005769 | Horn Support |
| 8t | 250000874 | Torx Truss M8 X 25 |
| 8u | 233281414 | Hex. Flange Elastic Nut M8 |
| 8v | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8w1 | 710002889 | Reverse Cable |
| 8w2 | 710011269 | Actuator |
| 8w3 | 232541414 | Elastic Stop Nut M4 |
| 8w4 | 205444056 | Socket Head Screw M4 X 40 |
| 8w5 | 390403000 | Pop Rivet 5/32 |
| 8w6 | 710010657 | Actuator Support |
| 8w7 | 270000141 | Clip |
| 8w8 | 293150293 | Pop Rivet 3/16 X ,425 |
| 8x | 210261650 | Hex. Flange Screw M6 X 16 |
| 8y | 710007256 | Actuator Motor |
| 8z | 207662054 | Hex. Flange Screw M6 X 20 |
| 1015 | 710010111 | Antenna Ground Strap |
| 1070 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1075 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1080 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1085 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062670 | Stainless Steel Flat Washer |
| 1160 | 293830091 | Rubber Bumper |
| 2000 | 710008074 | Pos Cable |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2250a | 207161444 | Hex. Screw M6 X 14 |
| 2250b | 710000393 | Protector Cap |
| 2250j | 710002945 | Battery Guard |
| 2250p | 710008102 | Fuse 80 A |
| 2250q | 710008098 | Fuse Holder Support |
| 2250r | 710008154 | Fuse Holder Cover |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 4042 | 710001222 | Lock |
| 4044 | 293150293 | Pop Rivet 3/16 X ,425 |
| 4045 | 270000141 | Clip |
| 4052 | 293150230 | Tuflok Plastic Rivet |
| 4055 | 710004906 | Connector Plug |
| 4056 | 710002033 | Connector Holder |
| 4057 | 710004902 | Connector Plug |
| 4058 | 710002033 | Connector Holder |
| 4059 | 710004903 | Connector Plug |
| 4060 | 710002033 | Connector Holder |
| 4065 | 293750083 | Cable Support |
| 4075 | 710004901 | Connector Plug |
| 4076 | 710004901 | Connector Plug |
| 4077 | 710004669 | Wire Support |
| 4090 | 710004794 | Harness Holder |
| 4095 | 293150230 | Tuflok Plastic Rivet |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4380 | 710004299 | Cable Support |
| 4810 | 708305003 | Connector Cap |
| 5002 | 233081416 | Hex. Flange Nut M8 |
| 5400 | 710006436 | Fuel Tank Cable |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
| 5420 | 250200111 | Washer |
