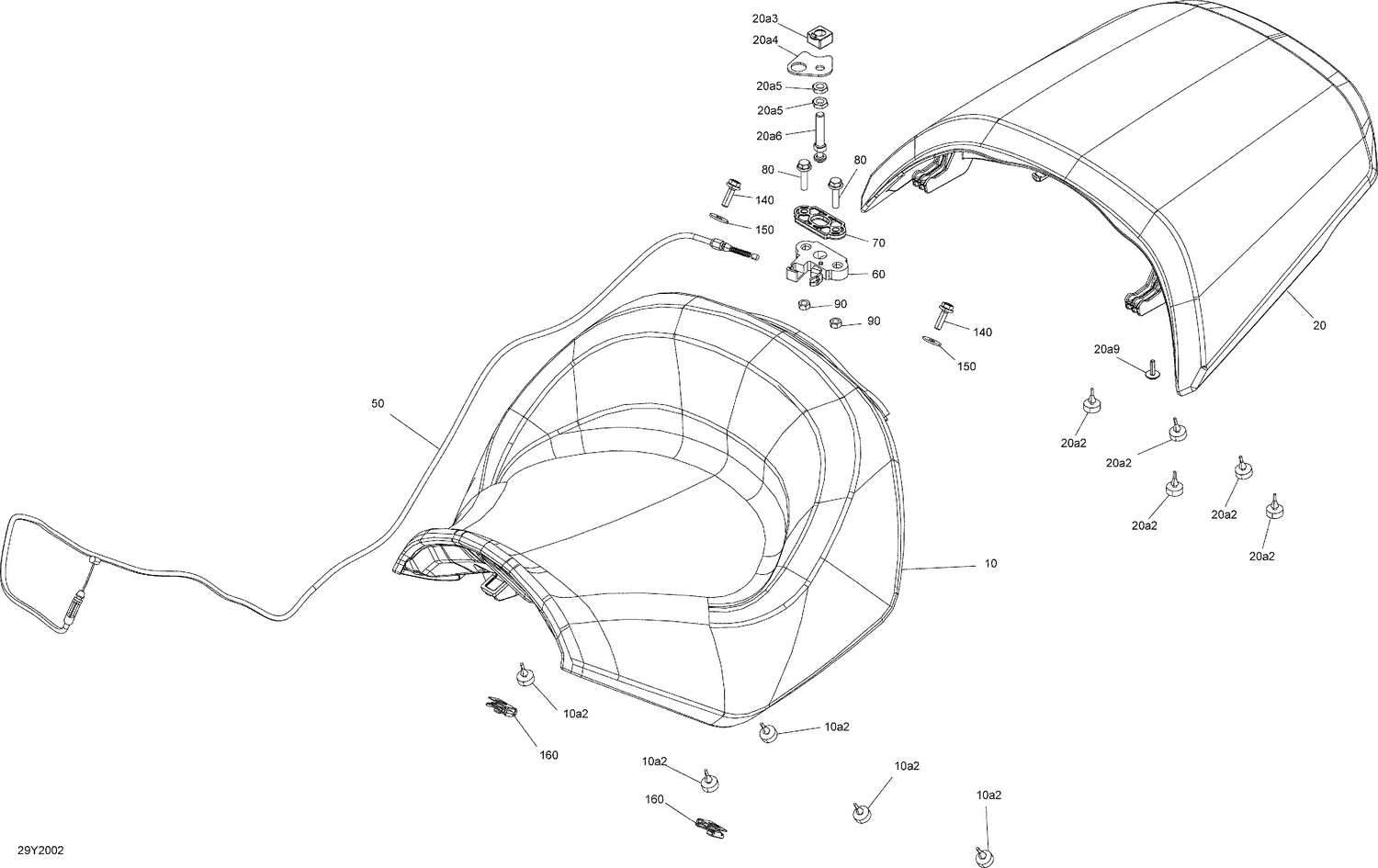

09- Seat - S
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10a2 | 708000759 | Rubber Stopper |
| 20a2 | 708000759 | Rubber Stopper |
| 20a3 | 269501943 | Elastic Nut Housing M8 |
| 20a4 | 708001909 | Washer |
| 20a5 | 232180600 | Hex. Jam Nut M8 |
| 20a6 | 708001741 | Lug |
| 20a9 | 250000725 | Screw M4 X 16 |
| 50 | 708001743 | Seat Cable |
| 60 | 705007379 | Latch |
| 70 | 708001771 | Brace |
| 80 | 207562556 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 90 | 232061414 | Hex. Nut M6 |
| 140 | 207662044 | Hex. Flange Screw M6 X 20 |
| 150 | 250200082 | Flat Washer |
