| Ref | Part Number | Description |
|---|
| BP |
278003716 |
Battery Cable |
| COM |
710002705 |
Lock |
| COM |
710002706 |
Female Housing 6 Circuits |
| COM |
710005438 |
Female Terminal |
| COM |
710005439 |
Female Terminal |
| DF |
710002705 |
Lock |
| DF |
710002706 |
Female Housing 6 Circuits |
| DF |
710005437 |
Plug |
| DF |
710005439 |
Female Terminal |
| EGTS |
278001484 |
RUBBER CAP - Call your local BRP dealership |
| EGTS |
415128501 |
Seal |
| EGTS |
710001136 |
Housing |
| EGTS |
710001137 |
Female Terminal |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
278002578 |
Female Terminal |
| FB |
278002880 |
Seal Plug |
| FB |
278003448 |
Fuse Base Ass'y |
| FB |
278003828 |
Relay 30 Amp |
| FB |
278004138 |
Fuse Box Cover |
| FB |
515177177 |
Female Terminal |
| FB |
710000048 |
Wire Seal |
| FB |
710000742 |
Little Fuse, 5 Amperes |
| FB |
710000745 |
Little Fuse, 15 Ampere |
| FB |
710000747 |
Little Fuse, 30 Amperes |
| FB |
710000918 |
Female Terminal |
| FB |
710001008 |
Little Fuse, 3 AMP |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| FPR |
278001114 |
Female Terminal |
| FPR |
278002299 |
Female Terminal Housing 6 Circuits |
| FPS |
278004058 |
Connector Tyco Female 3 Cavities |
| FPS |
278004059 |
Tyco Female Terminal |
| FPS |
710001118 |
Wire Seal |
| GND1 |
278001392 |
Open Barrel Terminal |
| GND2 |
278001392 |
Open Barrel Terminal |
| GND3 |
278001392 |
Open Barrel Terminal |
| GND4 |
278000992 |
Open Barrel |
| HIC |
278003535 |
Female Housing, 4 circuits |
| HIC |
515178018 |
Female Terminal |
| HIC1 |
278002858 |
Female Housing 20 Circuits |
| HIC1 |
278002860 |
Sealing Cap |
| HIC1 |
515178014 |
Female Terminal |
| HIC1 |
515178018 |
Female Terminal |
| HIC2 |
278003866 |
Housing 6 Circuits |
| HIC2 |
515178013 |
Male Terminal |
| IBR |
278002860 |
Sealing Cap |
| IBR |
278002880 |
Seal Plug |
| IBR |
278003045 |
Female Terminal |
| IBR |
278003046 |
Seal |
| IBR |
278003484 |
Female Housing ,16 Circuits |
| IBR |
515178018 |
Female Terminal |
| O2 |
515177406 |
Female Housing |
| O2 |
710002664 |
SEAL - Call your local BRP dealership |
| O2 |
710002773 |
Terminal |
| R1 |
515177246 |
Shrink Tubing, 6 mm |
| R1 |
710000700 |
Resistor |
| RE2 |
278003685 |
Seal |
| RE2 |
710000877 |
Female Terminal |
| RE2 |
710000879 |
Female Housing, 3 Circuits This part replaces 278003517. |
| RE2 |
710000881 |
Seal |
| STS |
515177192 |
Female Housing, 2 Circuits |
| STS |
710001163 |
Wire Seal |
| STS |
710001164 |
Female Terminal |
| WT |
278001484 |
RUBBER CAP - Call your local BRP dealership |
| WT |
415128501 |
Seal |
| WT |
710001136 |
Housing |
| WT |
710001137 |
Female Terminal |

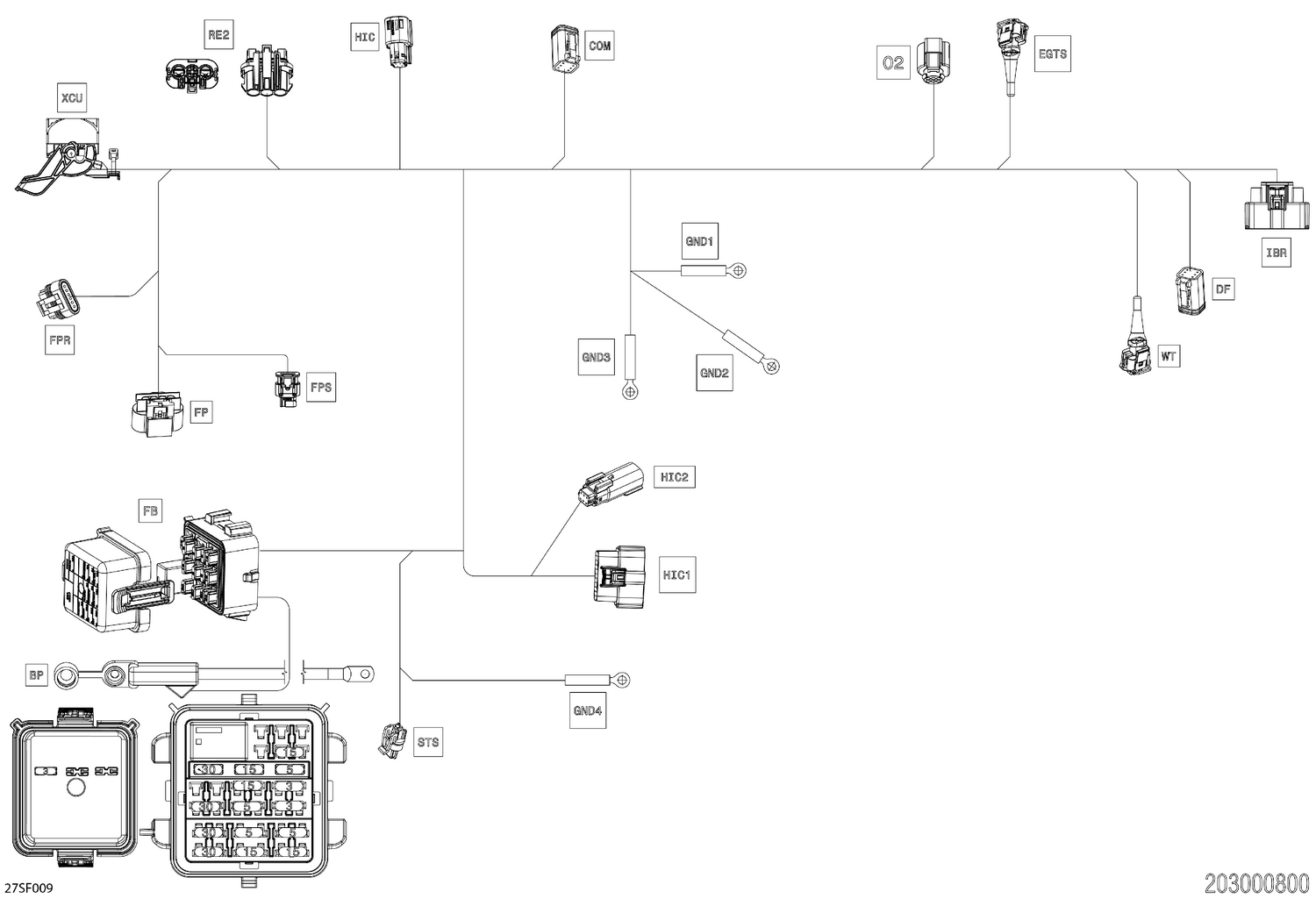

| 1000 |
278004730 |
Main Wiring Harness |
